AMD Radeon RX 6650M XT

AMD Radeon RX 6650M XT

Az AMD Radeon RX 6650M XT egy mobil középkategóriás grafikus kártya, amely a 7 nm-es gyártású Navi 23 chipen (RDNA 2 architektúra) alapul. Rendelkezik 2048 maggal (32 CU - compute unit) és 8 GB gyors GDDR6 grafikus memóriával, amelyhez 128 bites memóriabusz kapcsolódik. A chip 32 MB Infinity Cache gyorsítótárat is tartalmaz. A magok órajele az AMD szerint a laptopoktól függ majd. A megadott játék órajele 2162 MHz (valószínűleg 120 W-os TGP mellett).

Az AMD a teljesítményt a RTX 3060 laptopokhoz és hasonlóan a RX 6600M-HEZ. Ha a Raytracing effektek aktiválva vannak, akkor lemarad a GeForce GPU-k mögött. Összehasonlítva a normál RX 6650M, az XT változat több shadert kínál, de lassabb órajelen.

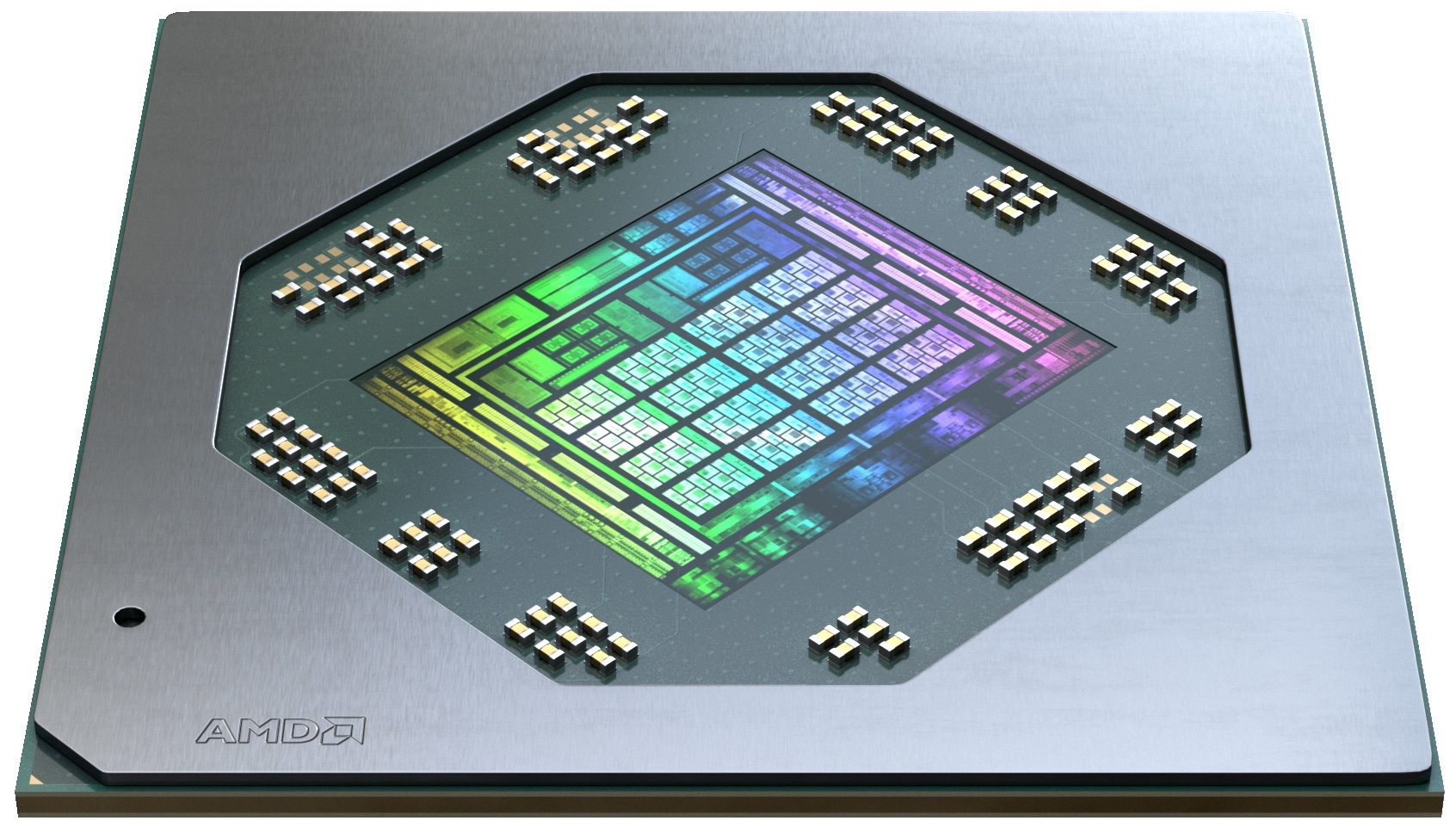

A Navi 21 chip a TSMC-nél készül a modern 7 nm-es eljárással.

Radeon RX 6000M Széria

Radeon RX 6850M XT 2560 @ 2.46 GHz192 Bit @ 18000 MHz
Radeon RX 6800M 2560 @ 2.12 - 2.3 GHz192 Bit @ 16000 MHz
Radeon RX 6800S 2048 @ 1.8 - 1.98 GHz128 Bit @ 16000 MHz
Radeon RX 6700M 2304 @ 2.3 GHz160 Bit @ 16000 MHz
Radeon RX 6650M XT 2048 @ 2.16 GHz128 Bit @ 18000 MHz
Radeon RX 6650M 1792 @ 2.22 GHz128 Bit @ 18000 MHz
Radeon RX 6600M 1792 @ 2.07 - 2.18 GHz128 Bit @ 14000 MHz
Radeon RX 6700S 1792 @ 1.7 - 1.89 GHz128 Bit @ 14000 MHz
Radeon PRO W6600M 1792 128 Bit @ 14000 MHz
Radeon RX 6600S 1792 @ 1.88 GHz128 Bit @ 16000 MHz
Radeon RX 6550M 1024 @ 2 - 2.56 GHz64 Bit @ 18000 MHz
Radeon RX 6500M 1024 @ 2.19 GHz64 Bit @ 18000 MHz
Radeon RX 6550S 1024 @ 2.17 GHz64 Bit @ 16000 MHz
Radeon RX 6450M 768 @ 2 - 2.22 GHz64 Bit @ 18000 MHz
Radeon RX 6300M 768 @ 1.51 GHz128 Bit @ 18000 MHz
ArchitektúraRDNA 2
Pipeline-ok2048 - egységes
Mag sebesség2162 (Boost) MHz
Memória sebesség18000 MHz
Memória Busz Szélesség128 Bit
Memória TípusGDDR6
Max Memória8 GB
Shader Memórianem
APIDirectX 12, Shader 6.4, OpenGL 4.6
Energiafogyasztás120 Watt
Tranzisztorok száma11.1 Billion
technológia7 nm
JellegzetességekDisplayPort 1.4 w/DFSC, HDMI 2.0b, Radeon Media Engine (H.264 4K150 decode, 4K90 encode / H.265 4K90 decode, 4K60 encode / VP9 4K90 decode)
Noteszgép Méretnagy
Megjelenés ideje04.01.2022
Gyártó honlapjawww.amd.com

Benchmarkok

- A keresett grafikus kártyához tartozó benchmark értékek skálája
- A keresett grafikus kártyához tartozó átlagos benchmark értékek
* A kisebb számok nagyobb teljesítményt jelentenek.

További játszható játékokért, valamint az elérhető összes grafikus kártya és játék tesztjéért kattintson
