Huawei MateBook X (i5-7200U, 256 GB) Subnotebook rövid értékelés
| Networking | |
| iperf3 transmit AX12 | |
| Huawei MateBook X | |
| Microsoft Surface Pro (2017) i5 | |
| Lenovo IdeaPad 710S Plus-13IKB | |
| Dell XPS 13 9360 FHD i5 | |
| iperf3 receive AX12 | |
| Lenovo IdeaPad 710S Plus-13IKB | |
| Microsoft Surface Pro (2017) i5 | |
| Dell XPS 13 9360 FHD i5 | |
| Huawei MateBook X | |
| |||||||||||||||||||||||||
Fényerő megoszlás: 88 %
Centrumban: 408 cd/m²
Kontraszt: 907:1 (Fekete: 0.45 cd/m²)
ΔE Color 1.55 | 0.5-29.43 Ø4.91
ΔE Greyscale 1.91 | 0.5-98 Ø5.2
96% sRGB (Argyll 1.6.3 3D)
61% AdobeRGB 1998 (Argyll 1.6.3 3D)
66.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.2% sRGB (Argyll 2.2.0 3D)
65.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.34
| Huawei MateBook X Chi Mei CMN8201 / P130ZDZ-EF1, , 2160x1440, 13.3" | HP EliteBook 1030 G1-X2F03EA Sharp SHP1465, , 3200x1800, 13.3" | Dell XPS 13 9360 FHD i5 Sharp SHP1449 LQ133M1, , 1920x1080, 13.3" | Lenovo IdeaPad 710S Plus-13IKB LG Philips LP133WF4-SPB1 (LGD04EF), , 1920x1080, 13.3" | Microsoft Surface Pro (2017) i5 LG Display LP123WQ112604, , 2736x1824, 12.3" | |
|---|---|---|---|---|---|
| Display | 1% | -25% | -8% | 3% | |
| Display P3 Coverage | 65.8 | 67.6 3% | 48.94 -26% | 65.3 -1% | 67.6 3% |
| sRGB Coverage | 96.2 | 94.7 -2% | 73.3 -24% | 82.9 -14% | 99 3% |
| AdobeRGB 1998 Coverage | 66.8 | 69 3% | 50.5 -24% | 60.6 -9% | 69.1 3% |
| Response Times | -18% | -19% | -29% | -24% | |
| Response Time Grey 50% / Grey 80% * | 33 ? | 42.4 ? -28% | 32.8 ? 1% | 45 ? -36% | 42 ? -27% |
| Response Time Black / White * | 24 ? | 25.6 ? -7% | 33.2 ? -38% | 29 ? -21% | 29 ? -21% |
| PWM Frequency | 21000 | ||||
| Screen | -40% | -86% | -60% | -25% | |
| Brightness middle | 408 | 401 -2% | 351.2 -14% | 343 -16% | 417 2% |
| Brightness | 395 | 369 -7% | 325 -18% | 306 -23% | 401 2% |
| Brightness Distribution | 88 | 85 -3% | 89 1% | 81 -8% | 88 0% |
| Black Level * | 0.45 | 0.35 22% | 0.195 57% | 0.3 33% | 0.29 36% |
| Contrast | 907 | 1146 26% | 1801 99% | 1143 26% | 1438 59% |
| Colorchecker dE 2000 * | 1.55 | 3.5 -126% | 7.4 -377% | 4.73 -205% | 3.63 -134% |
| Colorchecker dE 2000 max. * | 2.19 | 6.33 -189% | 9.08 -315% | 9.05 -313% | 6.74 -208% |
| Greyscale dE 2000 * | 1.91 | 4.13 -116% | 6.71 -251% | 3.29 -72% | 2.18 -14% |
| Gamma | 2.34 94% | 2.28 96% | 2.74 80% | 2.36 93% | 3.09 71% |
| CCT | 6491 100% | 6508 100% | 7222 90% | 6437 101% | 6767 96% |
| Color Space (Percent of AdobeRGB 1998) | 61 | 61.56 1% | 50.48 -17% | 54 -11% | 63 3% |
| Color Space (Percent of sRGB) | 96 | 94.64 -1% | 73.31 -24% | 83 -14% | 99 3% |
| Teljes átlag (program / beállítások) | -19% /
-28% | -43% /
-65% | -32% /
-46% | -15% /
-19% |
* ... a kisebb jobb
Megjelenítési válaszidők

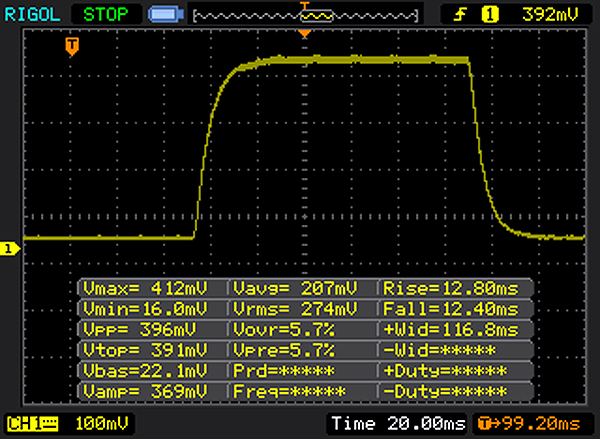

| ↔ Válaszidő Fekete-fehér | ||
|---|---|---|
| 24 ms ... emelkedés és süllyedés ↘ kombinálva | ↗ 12 ms emelkedés |  |
| ↘ 12 ms ősz | ||
| A képernyő jó reakciósebességet mutat tesztjeinkben, de túl lassú lehet a versenyképes játékosok számára. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 50 % of all devices are better. Ez azt jelenti, hogy a mért válaszidő rosszabb, mint az összes vizsgált eszköz átlaga (20.9 ms). | ||

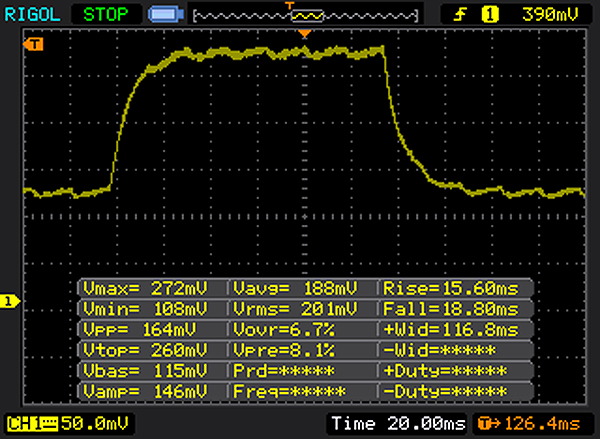

| ↔ Válaszidő 50% szürke és 80% szürke között | ||
| 33 ms ... emelkedés és süllyedés ↘ kombinálva | ↗ 15 ms emelkedés |  |
| ↘ 18 ms ősz | ||
| A képernyő lassú reakciósebességet mutat tesztjeinkben, és nem lesz kielégítő a játékosok számára. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 41 % of all devices are better. Ez azt jelenti, hogy a mért válaszidő hasonló az összes vizsgált eszköz átlagához (32.8 ms). | ||
Képernyő villogása / PWM (impulzusszélesség-moduláció)
| Képernyő villogása / PWM nem érzékelhető | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8715 (minimum: 5 - maximum: 343500) Hz was measured. | ||
| PCMark 8 Home Score Accelerated v2 | 3507 pontok | |
| PCMark 8 Work Score Accelerated v2 | 4276 pontok | |
Segítség | ||
| Huawei MateBook X LITEON CB1-SD256 | HP EliteBook 1030 G1-X2F03EA Sandisk X300 SD7SN6S-512G-1006 | Dell XPS 13 9360 FHD i5 Toshiba NVMe THNSN5256GPUK | Lenovo IdeaPad 710S Plus-13IKB Samsung PM961 NVMe MZVLW512HMJP | Microsoft Surface Pro (2017) i5 Samsung PM971 KUS030202M | |
|---|---|---|---|---|---|
| CrystalDiskMark 3.0 | -21% | 41% | 117% | 30% | |
| Read Seq | 741 | 387.5 -48% | 1233 66% | 1577 113% | 723 -2% |
| Write Seq | 461.2 | 348.7 -24% | 733 59% | 1472 219% | 853 85% |
| Read 512 | 504 | 239.9 -52% | 1036 106% | 1165 131% | 225 -55% |
| Write 512 | 310.3 | 335.3 8% | 439.9 42% | 1244 301% | 445 43% |
| Read 4k | 29.48 | 30.34 3% | 29.31 -1% | 54.8 86% | 46 56% |
| Write 4k | 68.1 | 75.9 11% | 116.9 72% | 121.5 78% | 125 84% |
| Read 4k QD32 | 498.9 | 311.3 -38% | 479.2 -4% | 407.5 -18% | 423 -15% |
| Write 4k QD32 | 257.5 | 192.8 -25% | 218.3 -15% | 321.4 25% | 373 45% |
| 3DMark 11 - 1280x720 Performance GPU | |
| Lenovo IdeaPad 710S Plus-13IKB | |
| Dell XPS 13 9360 FHD i5 | |
| Huawei MateBook X | |
| HP EliteBook 1030 G1-X2F03EA | |
| 3DMark | |
| 1280x720 Cloud Gate Standard Graphics | |
| Lenovo IdeaPad 710S Plus-13IKB | |
| Dell XPS 13 9360 FHD i5 | |
| Huawei MateBook X | |
| Microsoft Surface Pro (2017) i5 | |
| HP EliteBook 1030 G1-X2F03EA | |
| 1920x1080 Fire Strike Graphics | |
| Lenovo IdeaPad 710S Plus-13IKB | |
| Dell XPS 13 9360 FHD i5 | |
| HP EliteBook 1030 G1-X2F03EA | |
| Microsoft Surface Pro (2017) i5 | |
| Huawei MateBook X | |
| 3DMark 11 Performance | 1667 pontok | |
| 3DMark Ice Storm Standard Score | 54224 pontok | |
| 3DMark Cloud Gate Standard Score | 5691 pontok | |
| 3DMark Fire Strike Score | 785 pontok | |
Segítség | ||
| alacsony | közepes | magas | ultra | |
|---|---|---|---|---|
| Battlefield 1 (2016) | 11.7 | |||
| Farming Simulator 17 (2016) | 61.2 | 40.8 | 14 | |
| For Honor (2017) | 20.2 |

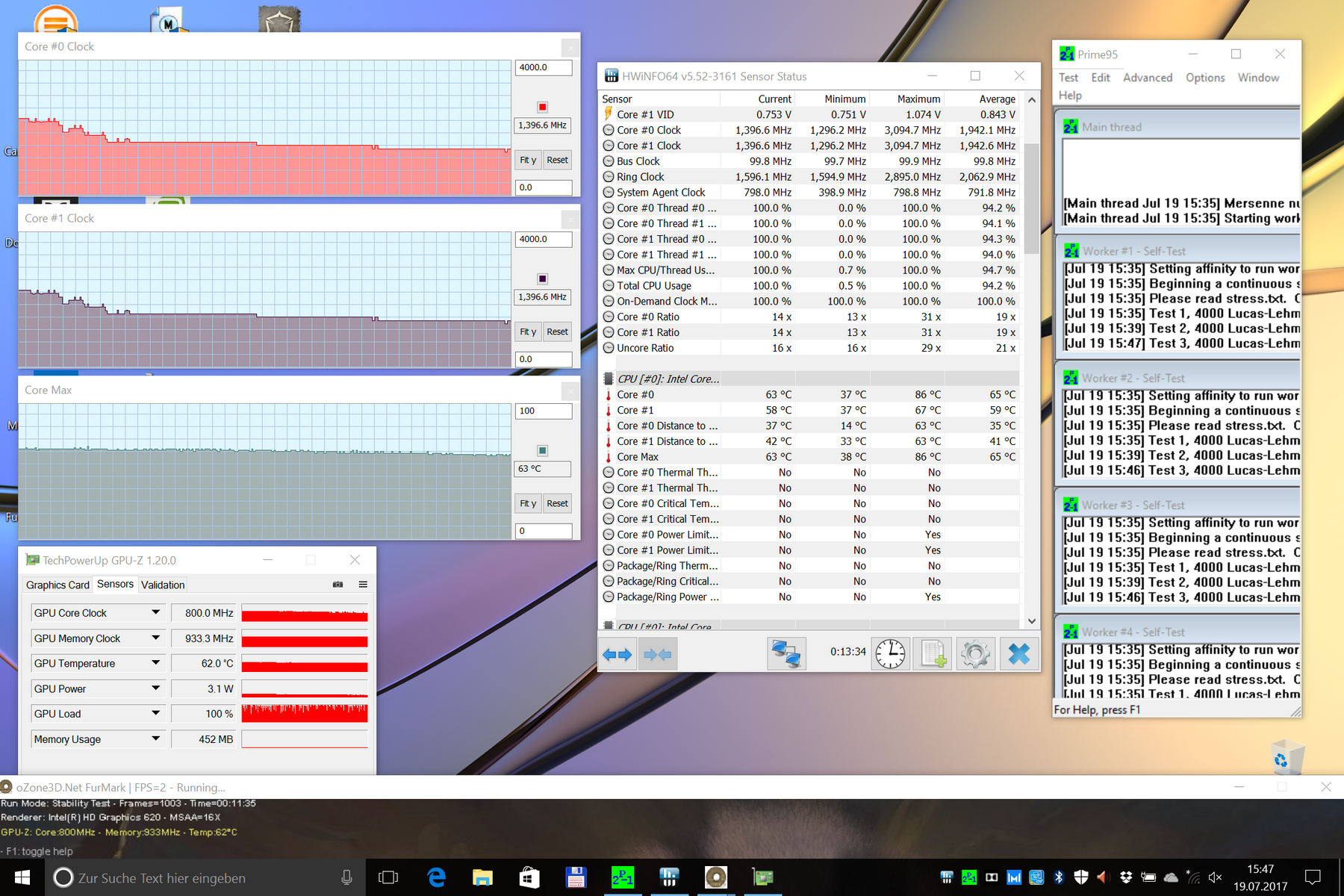

(±) The maximum temperature on the upper side is 40.4 °C / 105 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 41.2 °C / 106 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 25.3 °C / 78 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.8 °C / 91 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-4.5 °C / -8.1 F).
Huawei MateBook X audio analysis
(-) | not very loud speakers (66 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 8.3% lower than median
(±) | linearity of bass is average (7.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.3% away from median
(+) | mids are linear (6.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.6% away from median
(+) | highs are linear (6.6% delta to prev. frequency)
Összességében 100 - 16.000 Hz
(+) | overall sound is linear (14.7% difference to median)
Ugyanazon osztályhoz képest
» 27% of all tested devices in this class were better, 6% similar, 67% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Az összes tesztelt eszközzel összehasonlítva
» 17% of all tested devices were better, 4% similar, 79% worse
» The best had a delta of 4%, average was 25%, worst was 134%
HP EliteBook 1030 G1-X2F03EA audio analysis
(+) | speakers can play relatively loud (83.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.7% lower than median
(±) | linearity of bass is average (11.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.1% away from median
(±) | linearity of mids is average (7.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(+) | highs are linear (5.2% delta to prev. frequency)
Összességében 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.8% difference to median)
Ugyanazon osztályhoz képest
» 60% of all tested devices in this class were better, 7% similar, 33% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Az összes tesztelt eszközzel összehasonlítva
» 47% of all tested devices were better, 7% similar, 46% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Dell XPS 13 9360 FHD i5 audio analysis
(-) | not very loud speakers (70.3 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 6.9% lower than median
(±) | linearity of bass is average (10.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(+) | mids are linear (4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(±) | linearity of highs is average (10.3% delta to prev. frequency)
Összességében 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.3% difference to median)
Ugyanazon osztályhoz képest
» 51% of all tested devices in this class were better, 7% similar, 43% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Az összes tesztelt eszközzel összehasonlítva
» 36% of all tested devices were better, 8% similar, 56% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo IdeaPad 710S Plus-13IKB audio analysis
(±) | speaker loudness is average but good (73 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.4% lower than median
(±) | linearity of bass is average (12.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.7% higher than median
(±) | linearity of mids is average (10.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(+) | highs are linear (6.9% delta to prev. frequency)
Összességében 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.4% difference to median)
Ugyanazon osztályhoz képest
» 81% of all tested devices in this class were better, 4% similar, 15% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Az összes tesztelt eszközzel összehasonlítva
» 71% of all tested devices were better, 6% similar, 23% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Microsoft Surface Pro (2017) i5 audio analysis
(-) | not very loud speakers (68 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 9.7% lower than median
(±) | linearity of bass is average (7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.6% away from median
(+) | mids are linear (6.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.1% away from median
(+) | highs are linear (5.2% delta to prev. frequency)
Összességében 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.2% difference to median)
Ugyanazon osztályhoz képest
» 36% of all tested devices in this class were better, 7% similar, 57% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Az összes tesztelt eszközzel összehasonlítva
» 35% of all tested devices were better, 8% similar, 57% worse
» The best had a delta of 4%, average was 25%, worst was 134%
| Kikapcsolt állapot / Készenlét |   0.4 / 0.64 Watt |
| Üresjárat |  4.6 / 11 / 12 Watt |
| Terhelés |
39.5 / 34.6 Watt |

| |
Kulcs:
min: ,
med: ,
max: Metrahit Energy | |
| Huawei MateBook X i5-7200U, HD Graphics 620, LITEON CB1-SD256, , 2160x1440, 13.3" | HP EliteBook 1030 G1-X2F03EA 6Y75, HD Graphics 515, Sandisk X300 SD7SN6S-512G-1006, IPS, 3200x1800, 13.3" | Dell XPS 13 9360 FHD i5 i5-7200U, HD Graphics 620, Toshiba NVMe THNSN5256GPUK, IPS, 1920x1080, 13.3" | Lenovo IdeaPad 710S Plus-13IKB i7-7500U, GeForce 940MX, Samsung PM961 NVMe MZVLW512HMJP, IPS, 1920x1080, 13.3" | Microsoft Surface Pro (2017) i5 i5-7300U, HD Graphics 620, Samsung PM971 KUS030202M, IPS, 2736x1824, 12.3" | |
|---|---|---|---|---|---|
| Power Consumption | 20% | 38% | 10% | 28% | |
| Idle Minimum * | 4.6 | 4 13% | 4.1 11% | 3.6 22% | 3.6 22% |
| Idle Average * | 11 | 8 27% | 4.2 62% | 7.4 33% | 8.1 26% |
| Idle Maximum * | 12 | 8.6 28% | 5.1 57% | 8.7 27% | 8.7 27% |
| Load Average * | 39.5 | 26.5 33% | 22.1 44% | 43 -9% | 25.5 35% |
| Load Maximum * | 34.6 | 34.8 -1% | 29.4 15% | 42 -21% | 23.5 32% |
* ... a kisebb jobb
| Huawei MateBook X i5-7200U, HD Graphics 620, 40 Wh | HP EliteBook 1030 G1-X2F03EA 6Y75, HD Graphics 515, 40 Wh | Dell XPS 13 9360 FHD i5 i5-7200U, HD Graphics 620, 60 Wh | Lenovo IdeaPad 710S Plus-13IKB i7-7500U, GeForce 940MX, 46 Wh | Microsoft Surface Pro (2017) i5 i5-7300U, HD Graphics 620, 45 Wh | |
|---|---|---|---|---|---|
| Akkumulátor üzemidő | 0% | 84% | -18% | 77% | |
| Reader / Idle | 512 | 618 21% | 1295 153% | 468 -9% | 1054 106% |
| WiFi v1.3 | 337 | 305 -9% | 677 101% | 338 0% | 744 121% |
| Load | 162 | 144 -11% | 157 -3% | 89 -45% | 168 4% |
| H.264 | 377 |
Pro
Kontra
Véleményünk szerint a Huawei belépője a notebook piacra, jól sikerült. A remekül összerakott MateBook X az elterjedőben lévő 3:2 formátummal nagyon kompakt, strapabíró lett, emellett jól néz ki, és egy új, passzív MEPCM hűtéssel szerelték fel, amely elég a mindennapokban, így jól ki tudja aknázni a hardverben rejlő potenciált, és csak tartós terhelés esetén bicsaklik meg. A belepakolt biztonsági funkciók - például az ujjlenyomat olvasó és a TPM 2.0 - is mobilitását hangsúlyozzák.

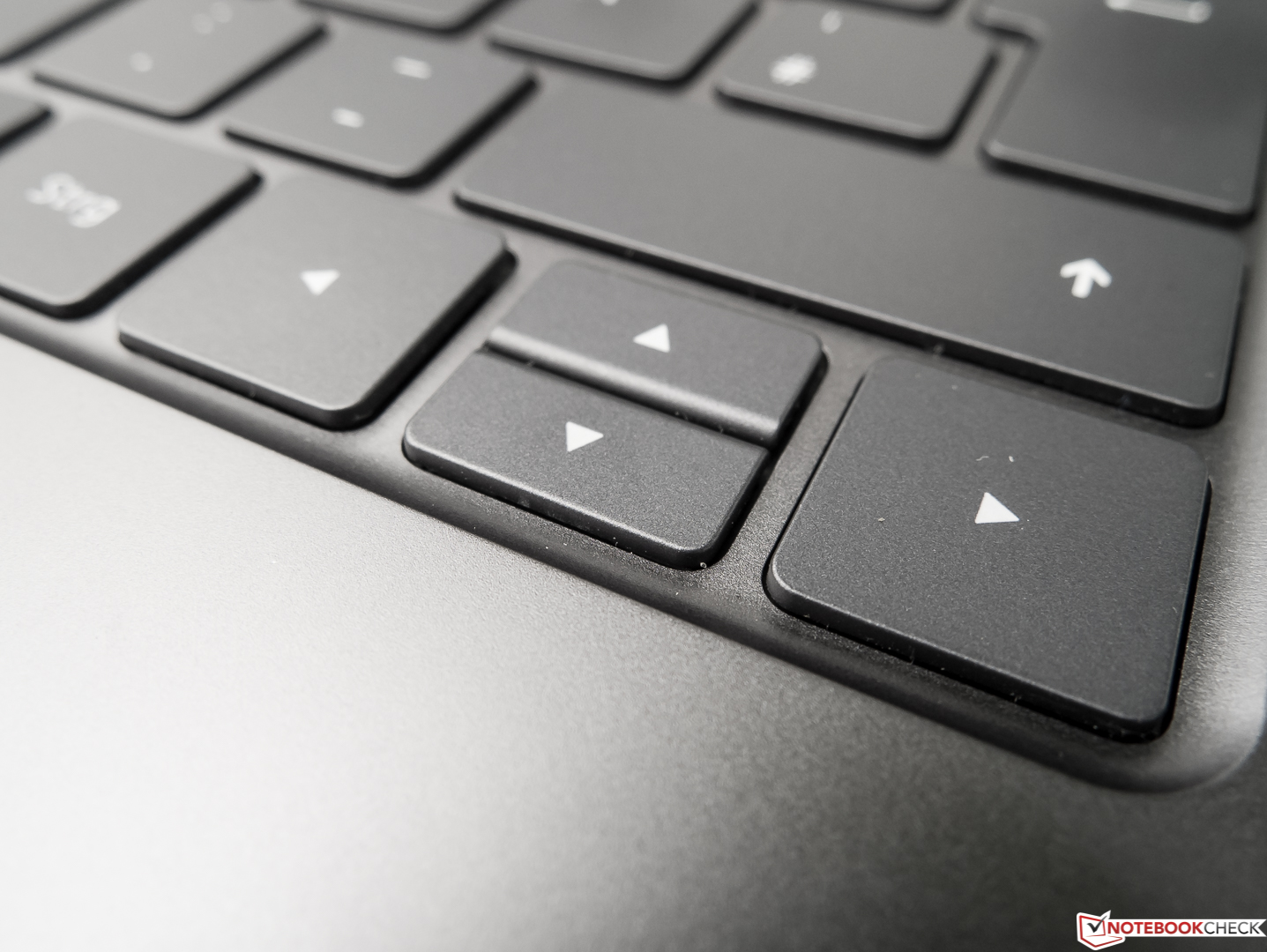

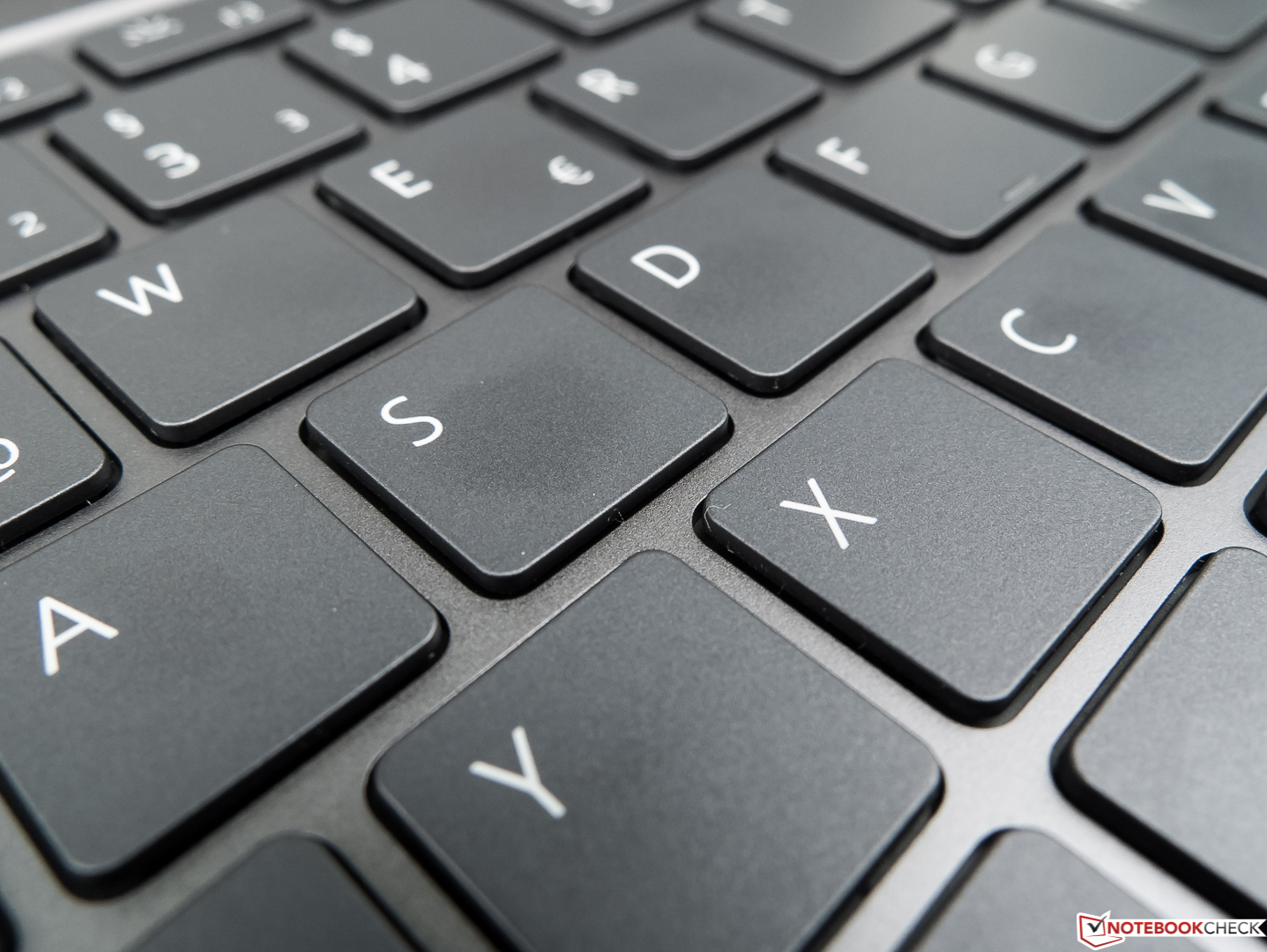

A tesztelő által szuboptimálisnak ítélt billentyűzet halványabb visszajelzéséhez hozzá lehet szokni. A túl magas fogyasztás - és az ebből következő, kiábrándító üzemidő - talán javítható egy BIOS/UEFI frissítéssel. A Huawei-nek ezen mindenképpen segítenie kell. A touchpaddal kapcsolatban még nincs végleges véleményünk.
A szegényes csatlakozókínálat, amelyet a mellé adott (amúgy átgondolt) adapterrel tudunk csak orvosolni, már más kérdés, hiszen az adaptert így mindig vinnünk kell magunkkal. Ugyanakkor a ház design megvalósíthatósága valószínűleg megkívánta ezt a lépést. Az egyébként remek kijelző egyetlen gyenge pontja pedig a kissé magas fekete értékek, és a tükröződő felület.
Ha a Huawei vissza tudná fogni a fogyasztását, és ezzel megnövelni az üzemidejét, az innovatív MateBook X még egy lépéssel közelebb lenne a 90%-os értékhez. Az, hogy ennek ellenére is elért 87%-ot, az önmagáért beszél.
Ez az eredeti értékelés rövidített változata. A teljes, angol nyelvű cikk itt olvasható.
Huawei MateBook X
- 07/26/2017 v6 (old)
Sven Kloevekorn
