Lenovo ThinkPad P71 (i7, P3000, 4K) Workstation rövid értékelés

Csendes és erős. A ThinkPad P71 a Lenovo legnagyobb és legerősebb mobil munkaállomása. Erős, mégis sokszor meglepően halk marad. Oh, és egy nagyon jó 4K UHD panellel is ellátták.
Business Geforce Kaby Lake Laptop / Notebook Windows Workstation
Lenovo ThinkPad P71-20HK0004GE (ThinkPad P71 Széria)
Processzor
Intel Core i7-7820HQ 4 x 2.9 - 3.9 GHz, Kaby Lake
Grafikus adapter
NVIDIA Quadro P3000 - 6 GB VRAM, Mag: 1240 MHz, Memória: 1752 MHz, GDDR5, ForceWare 376.52, Optimus

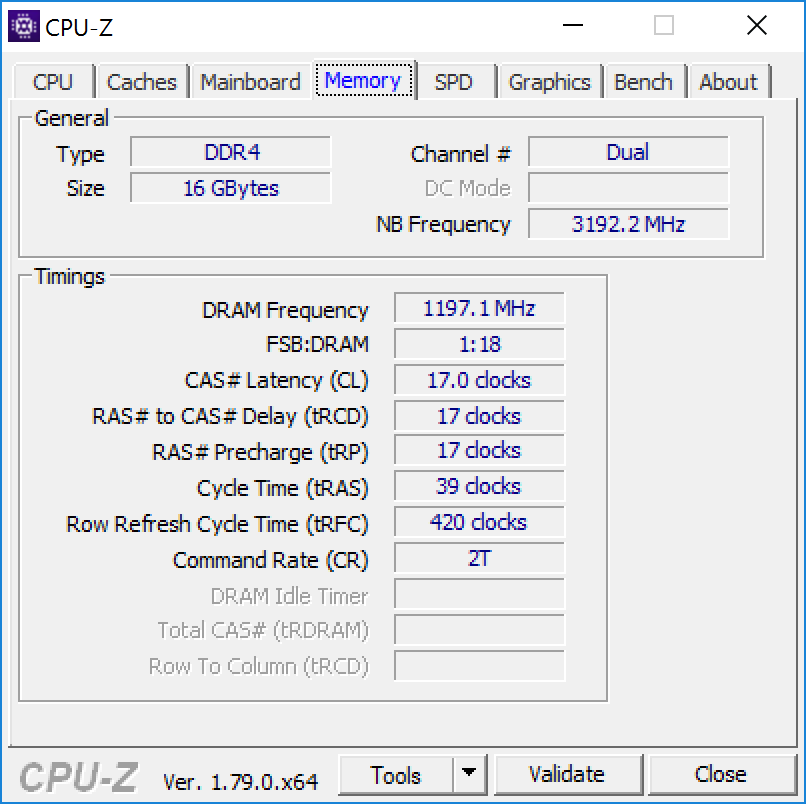

Memória
16 GB
, DDR4-2400, Dual-Channel, 2/4 hely foglalt, max. 64 GB
Kijelző
17.30 hüvelyk 16:9, 3840 x 2160 pixel 255 PPI, LEN4123, VVX17P051J00, IPS
Alaplap
Intel CM238
Háttértár
Samsung PM961 NVMe MZVLW512HMJP, 512 GB
, 433 GB ingyenes
Hangkártya
Intel A171
Csatlakozók
1 Expressz Kártya 34mm, 4 USB 3.0, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 3 DisplayPort, 1 Kensington zár, 1 Dokkoló állomás port, Audió csatlakozók: 3.5 mm-es sztereo jack, Kártyaolvasó: 4-in-1, 1 SmartCard, 1 Ujjlenyomat olvasó
Hálózat
Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Optikai meghajtó
HL-DT-ST DVDRAM GUD0N
Méret
magasság x szélesség x mélység (mm-ben) 34.2 x 416 x 275.5
Akkumulátor
96 Wh Lítium-Ion, Akkumulátor üzemidő (gyártói adat): 9.8 h
Operációs rendszer
Microsoft Windows 10 Pro 64 Bit
Camera
Webkamera: 720p
További jellegzetességek
Hangszórók: sztereo (2x 2 W), Billentyűzet: chiclet, Billentyűzet háttérvilágítás: igen, 230 W hálózati töltő/táp, Lenovo Settings App, Pantone Color Calibrator, Microsoft Office (próba), 36 Hónap Garancia
Súly
3.52 kg, Tápegység: 960 g
Ár
3300 Euró
Hivatkozások
Megjegyzés: A gyártó különböző beszállítóktól származó alkatrészeket használhat, beleértve a hasonló specifikációjú kijelzőpaneleket, meghajtókat vagy memóriastickeket.



P51s vs. P51 vs. P71
P51s vs. P51 vs. P71
P51s vs. P51 vs. P71
P51s vs. P51 vs. P71
P51s vs. P51 vs. P71

Size Comparison

417 mm 281 mm 35 mm 3.6 kg416 mm 275.5 mm 34.2 mm 3.5 kg418 mm 288 mm 30 mm 3 kg418 mm 279 mm 28.9 mm 2.9 kg297 mm 210 mm 1 mm 5.7 g

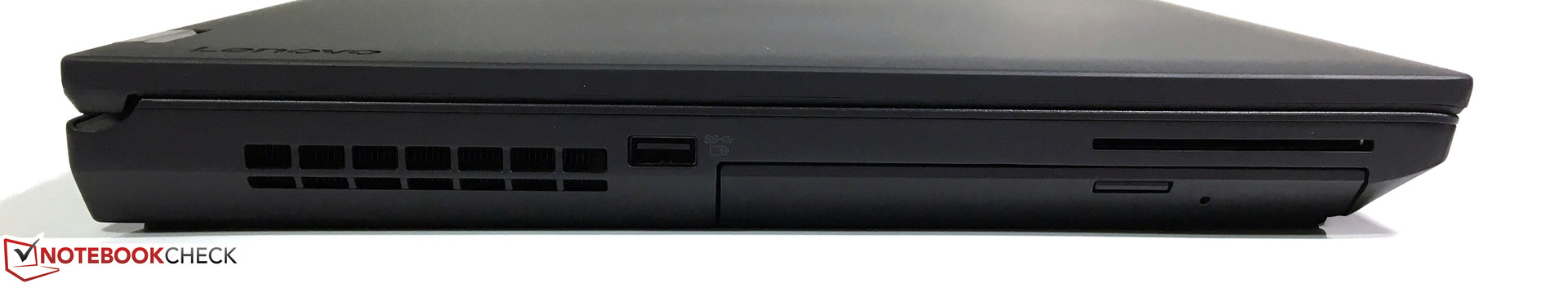

Left side: USB 3.0 (powered), DVD burner, SmartCard reader
Left side: USB 3.0 (powered), DVD burner, SmartCard reader

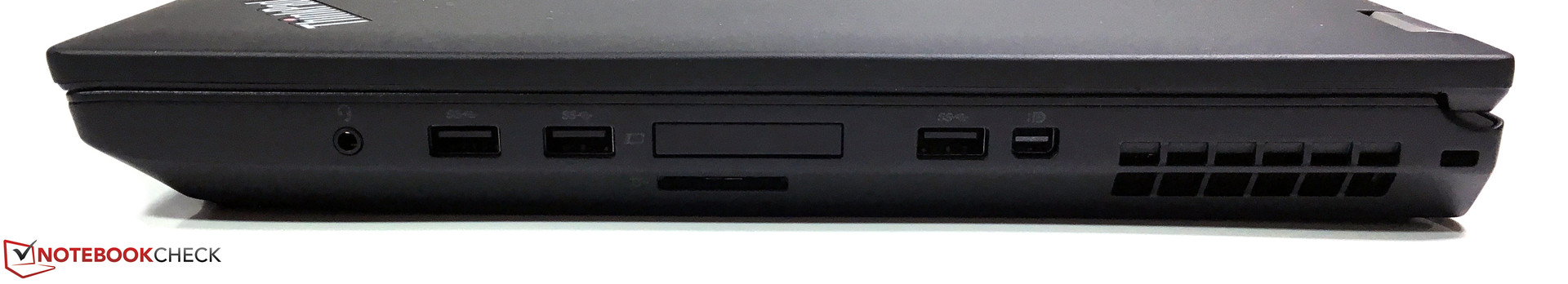

Right side: Combined stereo jack, 2x USB 3.0, ExpressCard (34 mm), card reader, USB 3.0, Mini-DisplayPort 1.2a
Right side: Combined stereo jack, 2x USB 3.0, ExpressCard (34 mm), card reader, USB 3.0, Mini-DisplayPort 1.2a

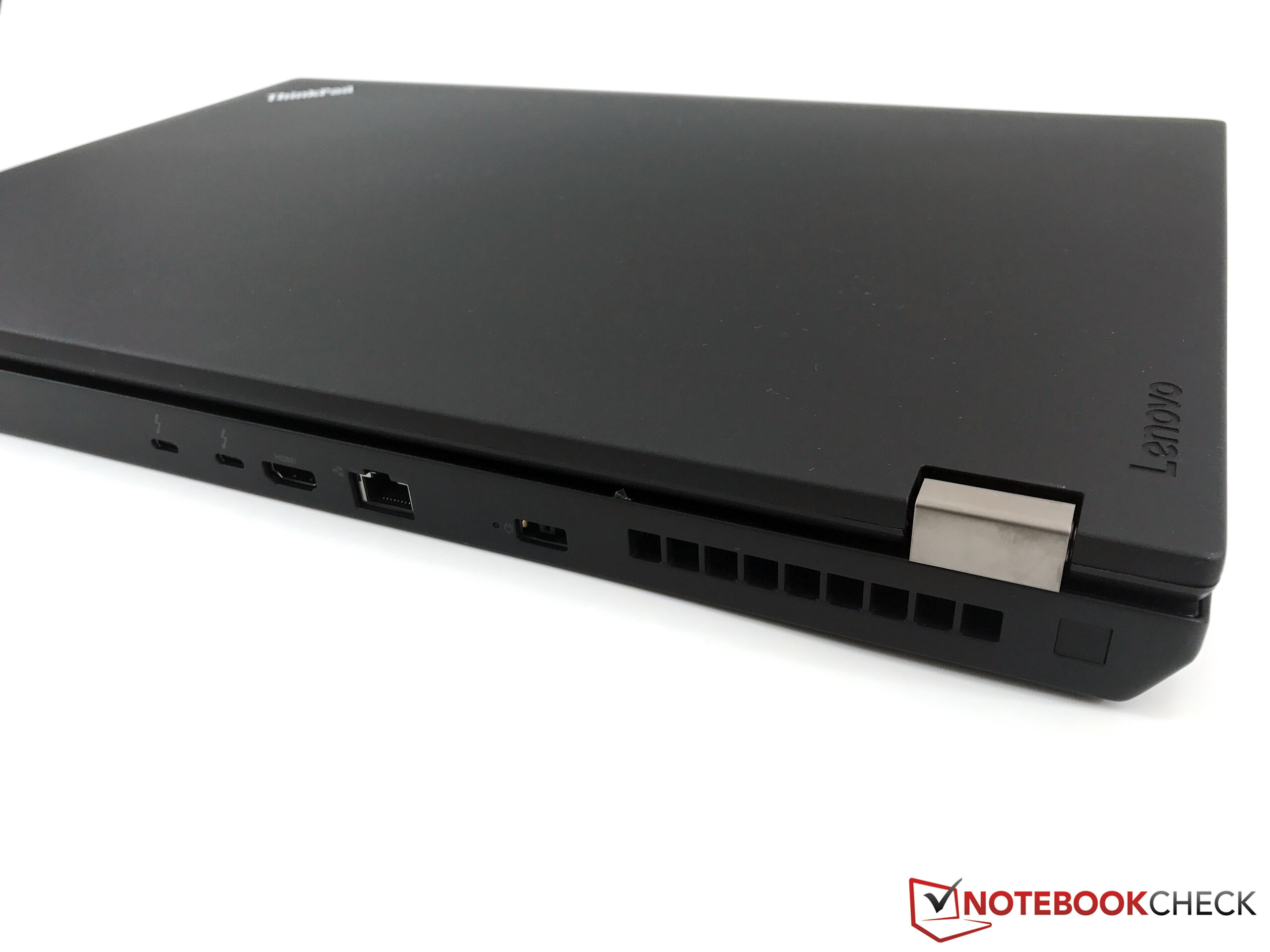

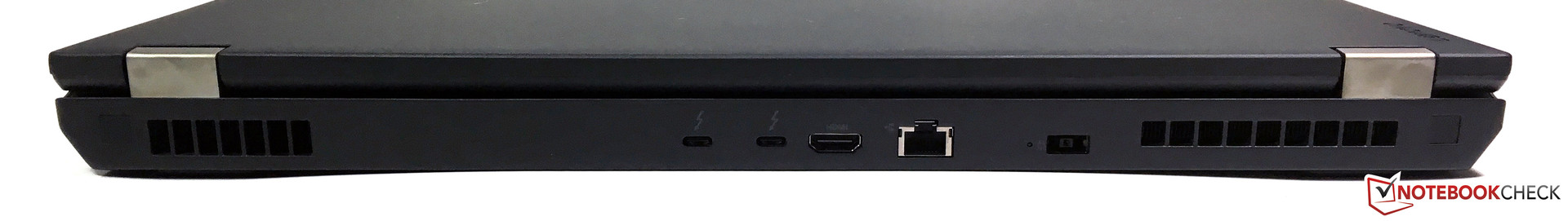

Rear: 2x USB 3.1 Type-C (Gen. 2)/Thunderbolt 3, HDMI 1.4b, Gigabit Ethernet, power
Rear: 2x USB 3.1 Type-C (Gen. 2)/Thunderbolt 3, HDMI 1.4b, Gigabit Ethernet, power
SD Card Reader
average JPG Copy Test (av. of 3 runs)
HP ZBook 17 G4-Y3J82AV

186 MB/s +19%
Lenovo ThinkPad P71-20HK0004GE

156 MB/s
Fujitsu Celsius H970

140 MB/s -10%
MSI WE72 7RJ

17.2 MB/s -89%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkPad P71-20HK0004GE

216 MB/s
HP ZBook 17 G4-Y3J82AV

209 MB/s -3%
Fujitsu Celsius H970

175.5 MB/s -19%
MSI WE72 7RJ

18.4 MB/s -91%
Networking
iperf3 transmit AX12
HP ZBook 17 G4-Y3J82AV
Intel Dual Band Wireless-AC 8265
519 MBit/s +1%
Dell Precision 7720
Intel Dual Band Wireless-AC 8265
518 MBit/s +1%
Lenovo ThinkPad P71-20HK0004GE
Intel Dual Band Wireless-AC 8265
512 MBit/s
Fujitsu Celsius H970
Intel Dual Band Wireless-AC 8265
504 MBit/s -2%
MSI WE72 7RJ
Intel Dual Band Wireless-AC 3168
287 MBit/s -44%
iperf3 receive AX12
Fujitsu Celsius H970
Intel Dual Band Wireless-AC 8265
676 MBit/s +1%
Lenovo ThinkPad P71-20HK0004GE
Intel Dual Band Wireless-AC 8265
667 MBit/s
HP ZBook 17 G4-Y3J82AV
Intel Dual Band Wireless-AC 8265
603 MBit/s -10%
Dell Precision 7720
Intel Dual Band Wireless-AC 8265
587 MBit/s -12%
MSI WE72 7RJ
Intel Dual Band Wireless-AC 3168
351 MBit/s -47%
305
cd/m²
357
cd/m²
324
cd/m²
316
cd/m²
358
cd/m²
323
cd/m²
342
cd/m²
369
cd/m²
346
cd/m²
Fényerő megoszlás
LEN4123, VVX17P051J00 tested with X-Rite i1Pro 2
Maximum: 369 cd/m² (Nits) Átlag: 337.8 cd/m² Minimum: 6.2 cd/m²
Fényerő megoszlás: 83 %
Centrumban: 363 cd/m²
Kontraszt: 1155:1 (Fekete: 0.31 cd/m²)
ΔE Color 2.1 | 0.5-29.43 Ø4.92
ΔE Greyscale 2 | 0.5-98 Ø5.2
99.97% sRGB (Argyll 1.6.3 3D)
77% AdobeRGB 1998 (Argyll 1.6.3 3D)
Gamma: 2.16
Lenovo ThinkPad P71-20HK0004GE
LEN4123, VVX17P051J00, , 3840x2160, 17.3"
Lenovo ThinkPad P70-20ER000XUS
Panasonic VVX17P051J00 / LEN4123, , 3840x2160, 17.3"
MSI WE72 7RJ
LP173WF4-SPF1, , 1920x1080, 17.3"
Fujitsu Celsius H970
LP173WF4-SPF3, , 1920x1080, 17.3"
HP ZBook 17 G4-Y3J82AV
Sharp SHP144C, , 3840x2160, 17.3"
Dell Precision 7720
SHP1446 (LQ173D1), , 3840x2160, 17.3"
Display
Display P3 Coverage
67.4
66.8
88
87.6
sRGB Coverage
85.3
84.6
100
100
AdobeRGB 1998 Coverage
62.4
61.8
99.6
99.2
Response Times
-30%
-15%
2%
-46%
-60%
Response Time Grey 50% / Grey 80% *
39.2 ?(20.4, 18.8)
34.8 ?(15.2, 19.6)
11%
45.2 ?(27.2, 18)
-15%
32 ?(14.8, 17.2)
18%
56.8 ?(27.6, 29.2)
-45%
60 ?(26.8, 33.2)
-53%
Response Time Black / White *
23.2 ?(11.6, 11.6)
26.8 ?(4, 22.8)
-16%
26.4 ?(14.8, 11.6)
-14%
26.4 ?(14.8, 11.6)
-14%
38.4 ?(22.8, 15.6)
-66%
46.4 ?(28.4, 18)
-100%
PWM Frequency
1412 ?(90)
219.3 ?(99)
-84%
1020 ?(50)
-28%
1020 ?(20)
-28%
Screen
-26%
-73%
-66%
10%
-21%
Brightness middle
358
332
-7%
302
-16%
368
3%
391
9%
464
30%
Brightness
338
317
-6%
306
-9%
360
7%
360
7%
441
30%
Brightness Distribution
83
86
4%
93
12%
91
10%
87
5%
89
7%
Black Level *
0.31
0.397
-28%
0.31
-0%
0.3
3%
0.35
-13%
0.45
-45%
Contrast
1155
836
-28%
974
-16%
1227
6%
1117
-3%
1031
-11%
Colorchecker dE 2000 *
2.1
3.15
-50%
6.2
-195%
6.4
-205%
1.3
38%
3.2
-52%
Colorchecker dE 2000 max. *
3.6
5.55
-54%
10.6
-194%
10.1
-181%
2.5
31%
6.1
-69%
Greyscale dE 2000 *
2
3.72
-86%
7.3
-265%
7.2
-260%
1.8
10%
4.2
-110%
Gamma
2.16 102%
1.86 118%
2.08 106%
2.02 109%
2.11 104%
2.01 109%
CCT
6216 105%
6103 107%
7020 93%
6882 94%
6461 101%
6736 96%
Color Space (Percent of AdobeRGB 1998)
77
74.3
-4%
56
-27%
55.5
-28%
87.9
14%
88.1
14%
Color Space (Percent of sRGB)
99.97
100
0%
85.2
-15%
84.4
-16%
100
0%
100
0%
Teljes átlag (program / beállítások)
-28% / -27%
-44% / -63%
-32% / -55%
-18% / -3%
-41% / -30%

* ... a kisebb jobb

Megjelenítési válaszidők

A kijelző válaszideje azt mutatja, hogy a képernyő milyen gyorsan képes egyik színről a másikra váltani. A lassú válaszidők utóképekhez vezethetnek, és a mozgó tárgyak elmosódottak lehetnek (szellemképek). A gyors tempójú 3D-s címek játékosainak különösen oda kell figyelniük a gyors válaszidőkre.

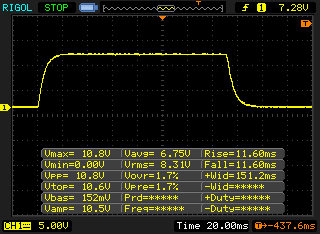

       Válaszidő Fekete-fehér
23.2 ms ... emelkedés és süllyedés ↘ kombinálva↗ 11.6 ms emelkedés
↘ 11.6 ms ősz
A képernyő jó reakciósebességet mutat tesztjeinkben, de túl lassú lehet a versenyképes játékosok számára.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 49 % of all devices are better.
Ez azt jelenti, hogy a mért válaszidő rosszabb, mint az összes vizsgált eszköz átlaga (21 ms).

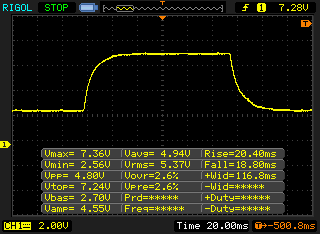

       Válaszidő 50% szürke és 80% szürke között
39.2 ms ... emelkedés és süllyedés ↘ kombinálva↗ 20.4 ms emelkedés
↘ 18.8 ms ősz
A képernyő lassú reakciósebességet mutat tesztjeinkben, és nem lesz kielégítő a játékosok számára.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 56 % of all devices are better.
Ez azt jelenti, hogy a mért válaszidő rosszabb, mint az összes vizsgált eszköz átlaga (32.9 ms).

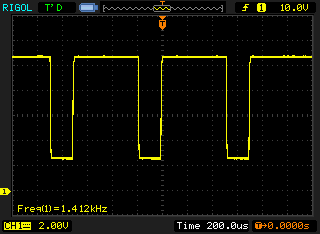

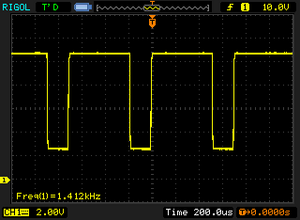

Képernyő villogása / PWM (impulzusszélesség-moduláció)

A képernyő tompításához egyes notebookok egyszerűen be- és kikapcsolják a háttérvilágítást gyors egymásutánban - ez az úgynevezett impulzusszélesség-moduláció (PWM) módszer. Ennek a ciklikus frekvenciának ideális esetben az emberi szem számára nem észlelhetőnek kell lennie. Ha ez a frekvencia túl alacsony, az érzékeny szemű felhasználóknak megerőltető lehet, fejfájást okozhat, vagy akár észre is vehetik a villódzást.
Képernyő villogása / PWM észlelve 1412 Hz ≤ 90 % fényerő beállítása

The display backlight flickers at 1412 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 1412 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured.


0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Dell Precision 7720
Intel Xeon E3-1535M v6
179 Points +8%
HP ZBook 17 G4-Y3J82AV
Intel Xeon E3-1535M v6
175 Points +5%
Lenovo ThinkPad P51 20HH0016GE
Intel Xeon E3-1505M v6
171 Points +3%
Fujitsu Celsius H970
Intel Xeon E3-1535M v6
171 Points +3%
HP ZBook Studio G4-Y6K17EA
Intel Xeon E3-1505M v6
170 Points +2%
Lenovo ThinkPad P71-20HK0004GE
Intel Core i7-7820HQ
166 Points
MSI WE72 7RJ
Intel Core i7-7700HQ
160 Points -4%
CPU Multi 64Bit
Dell Precision 7720
Intel Xeon E3-1535M v6
848 Points +11%
HP ZBook 17 G4-Y3J82AV
Intel Xeon E3-1535M v6
806 Points +6%
Lenovo ThinkPad P51 20HH0016GE
Intel Xeon E3-1505M v6
792 Points +4%
Lenovo ThinkPad P71-20HK0004GE
Intel Core i7-7820HQ
762 Points
MSI WE72 7RJ
Intel Core i7-7700HQ
743 Points -2%
HP ZBook Studio G4-Y6K17EA
Intel Xeon E3-1505M v6
737 Points -3%
Fujitsu Celsius H970
Intel Xeon E3-1535M v6
675 Points -11%
Cinebench R10 Shading 32Bit
6835
Cinebench R10 Rendering Multiple CPUs 32Bit
22977
Cinebench R10 Rendering Single 32Bit
6118
Cinebench R11.5 CPU Multi 64Bit
8.28 Points
Cinebench R11.5 OpenGL 64Bit
92.3 fps
Cinebench R11.5 CPU Single 64Bit
1.83 Points
Cinebench R15 CPU Single 64Bit
166 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
100.7 fps
Cinebench R15 CPU Multi 64Bit
762 Points
Segítség
PCMark 8
Creative Score Accelerated v2
HP ZBook 17 G4-Y3J82AV
Quadro P5000, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
7663 (7649min - 7675max) Points +20%
Fujitsu Celsius H970
Quadro P4000, E3-1535M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
7135 Points +11%
Lenovo ThinkPad P71-20HK0004GE
Quadro P3000, i7-7820HQ, Samsung PM961 NVMe MZVLW512HMJP
6402 Points
Dell Precision 7720
Quadro P5000, E3-1535M v6, Toshiba NVMe THNSN5512GPU7
5498 Points -14%
Home Score Accelerated v2
HP ZBook 17 G4-Y3J82AV
Quadro P5000, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
4648 (4587min - 4670max) Points +30%
MSI WE72 7RJ
Quadro M2200, i7-7700HQ, Samsung SM961 MZVPW256 m.2 PCI-e
4295 Points +20%
Dell Precision 7720
Quadro P5000, E3-1535M v6, Toshiba NVMe THNSN5512GPU7
3772 Points +5%
Lenovo ThinkPad P71-20HK0004GE
Quadro P3000, i7-7820HQ, Samsung PM961 NVMe MZVLW512HMJP
3578 Points
PCMark 8 Home Score Accelerated v2
3578 pontok
PCMark 8 Creative Score Accelerated v2
6402 pontok
Segítség
Lenovo ThinkPad P71-20HK0004GE
Samsung PM961 NVMe MZVLW512HMJP
MSI WE72 7RJ
Samsung SM961 MZVPW256 m.2 PCI-e
Fujitsu Celsius H970
Samsung SM961 MZVKW512HMJP m.2 PCI-e
HP ZBook 17 G4-Y3J82AV
Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
Dell Precision 7720
Toshiba NVMe THNSN5512GPU7
CrystalDiskMark 3.0
-5%
-17%
-8%
-7%
Read Seq
1628
1492
-8%
1821
12%
1767
9%
1532
-6%
Write Seq
1512
1512
0%
1622
7%
1662
10%
1187
-21%
Read 512
880
312.6
-64%
395.5
-55%
406.7
-54%
1227
39%
Write 512
1197
1483
24%
1258
5%
1197
0%
1287
8%
Read 4k
61.2
59.9
-2%
42.86
-30%
54.9
-10%
45.33
-26%
Write 4k
177
184.2
4%
87.4
-51%
159.3
-10%
145
-18%
Read 4k QD32
667
681
2%
590
-12%
660
-1%
590
-12%
Write 4k QD32
574
590
3%
522
-9%
549
-4%
467
-19%
Samsung PM961 NVMe MZVLW512HMJP
Sequential Read: 1628 MB/s
Sequential Write: 1512 MB/s
512K Read: 880 MB/s
512K Write: 1197 MB/s
4K Read: 61.2 MB/s
4K Write: 177 MB/s
4K QD32 Read: 667 MB/s
4K QD32 Write: 574 MB/s
3DMark 11 - 1280x720 Performance GPU
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
20096 (19942min - 20278max) Points +80%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
19569 Points +75%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
15433 Points +38%
MSI GF72VR 7RF
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
14518 Points +30%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
11162 Points
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
10259 Points -8%
Lenovo Legion Y520-15IKBN 80WK0042GE
NVIDIA GeForce GTX 1050 Ti Mobile, Intel Core i5-7300HQ
9904 Points -11%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
9708 Points -13%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
8313 Points -26%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
7319 Points -34%
3DMark - 1920x1080 Fire Strike Graphics
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
14666 Points +63%
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
14665 (14572min - 14667max) Points +63%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
12259 Points +36%
MSI GF72VR 7RF
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
11011 Points +22%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
9022 Points
Lenovo Legion Y520-15IKBN 80WK0042GE
NVIDIA GeForce GTX 1050 Ti Mobile, Intel Core i5-7300HQ
7795 Points -14%
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
7723 Points -14%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
6935 Points -23%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
6658 Points -26%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
5869 Points -35%
Unigine Heaven 4.0
Extreme Preset OpenGL
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
88.2 fps +64%
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
86.6 fps +61%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
53.8 fps
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
29.5 fps -45%
Extreme Preset DX11
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
100.3 fps +69%
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
95.6 fps +61%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
59.3 fps
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
35.1 fps -41%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
74.8 fps +47%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
73.9 fps +45%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
50.9 fps
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
38.5 fps -24%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
30.7 fps -40%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
28.1 fps -45%
1920x1080 Extreme HD Preset OpenGL AA:x8
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
60.8 fps +50%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
55.4 fps +37%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
40.5 fps
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
32.2 fps -20%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
26.6 fps -34%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
23.1 fps -43%
SiSoft Sandra 2016
Image Processing
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
786 MPix/s +85%
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
773 MPix/s +82%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
527 MPix/s +24%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
424.3 MPix/s
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
322.6 MPix/s -24%
GP Cryptography (Higher Security AES256+SHA2-512)
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
33.33 GB/s +87%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
33.08 GB/s +86%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
17.82 GB/s
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
12.74 GB/s -29%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
12.47 GB/s -30%
GP Financial Analysis (FP High/Double Precision)
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
100.5 KOPT/s +113%
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
99.6 KOPT/s +111%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
66.4 KOPT/s +40%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
47.27 KOPT/s
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
32.46 KOPT/s -31%
SPECviewperf 11
1920x1080 Siemens NX
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
111.4 fps +118%
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
56.7 fps +11%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
56.5 fps +10%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
53 fps +4%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
51.2 fps
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
49.91 fps -3%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
49 fps -4%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
48.26 fps -6%
1920x1080 Tcvis
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
58.1 fps +15%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
56.3 fps +11%
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
53.4 fps +6%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
52.5 fps +4%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
50.6 fps
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
49.94 fps -1%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
49.11 fps -3%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
36 fps -29%
1920x1080 SolidWorks
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
74 fps +36%
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
61.3 fps +13%
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
56.9 fps +5%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
55.5 fps +2%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
54.4 fps
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
50.9 fps -6%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
48.01 fps -12%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
42.66 fps -22%
1920x1080 Pro/ENGINEER
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
22.46 fps +15%
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
21.62 fps +11%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
20.8 fps +7%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
19.73 fps +1%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
19.51 fps
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
18.79 fps -4%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
16.23 fps -17%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
11.7 fps -40%
1920x1080 Maya
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
109.2 fps +90%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
106 fps +84%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
57.9 fps +1%
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
57.9 fps +1%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
57.8 fps 0%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
57.8 fps 0%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
57.6 fps
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
56.6 fps -2%
1920x1080 Lightwave
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
84 fps +49%
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
76.3 fps +36%
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
58.2 fps +3%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
57.7 fps +2%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
56.3 fps
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
52.2 fps -7%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
51.9 fps -8%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
47.95 fps -15%
1920x1080 Ensight
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
110.2 fps +86%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
70 fps +18%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
59.3 fps
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
59.3 fps 0%
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
59.3 fps 0%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
59.2 fps 0%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
59.1 fps 0%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
55.7 fps -6%
1920x1080 Catia
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
82.3 fps +64%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
61 fps +21%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
53.4 fps +6%
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
51.7 fps +3%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
50.7 fps +1%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
50.3 fps
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
48.49 fps -4%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
48.39 fps -4%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
164.9 fps +54%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
142.3 fps +33%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
117.1 fps +9%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
107.3 fps
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
97.1 fps -10%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
85.3 fps -21%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
84.8 fps -21%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
73 fps -32%
1900x1060 Siemens NX (snx-02)
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
178.8 fps +144%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
157.4 fps +115%
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
127.8 fps +74%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
83.1 fps +13%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
73.3 fps
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
65.8 fps -10%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
63 fps -14%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
58.1 fps -21%
1900x1060 Showcase (showcase-01)
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
68.8 fps +27%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
67.2 fps +24%
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
65.5 fps +21%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
54 fps
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
43.81 fps -19%
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
40.33 fps -25%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
37 fps -31%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
32.77 fps -39%
1900x1060 Medical (medical-01)
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
68.1 fps +132%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
62.7 fps +114%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
39.4 fps +34%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
29.32 fps
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
27 fps -8%
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
26.06 fps -11%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
22.34 fps -24%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
20.34 fps -31%
1900x1060 Maya (maya-04)
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
102.1 fps +58%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
88.8 fps +37%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
77.9 fps +21%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
64.6 fps
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
64 fps -1%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
50.4 fps -22%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
46.94 fps -27%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
46 fps -29%
1900x1060 Energy (energy-01)
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
14.68 fps +93%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
14.22 fps +87%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
10.29 fps +35%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
7.6 fps
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
6.04 fps -21%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
4.85 fps -36%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
4.28 fps -44%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
3.17 fps -58%
1900x1060 Creo (creo-01)
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
131.5 fps +54%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
117.2 fps +37%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
97.1 fps +13%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
85.6 fps
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
78.4 fps -8%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
68.5 fps -20%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
64.8 fps -24%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
50 fps -42%
1900x1060 Catia (catia-04)
HP ZBook 17 G4-Y3J82AV
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
155.6 fps +69%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
139.9 fps +52%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
115.2 fps +25%
Lenovo ThinkPad P71-20HK0004GE
NVIDIA Quadro P3000, Intel Core i7-7820HQ
92.3 fps
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, Intel Xeon E3-1505M v5
88.1 fps -5%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5
77.9 fps -16%
MSI WE72 7RJ
NVIDIA Quadro M2200, Intel Core i7-7700HQ
73.2 fps -21%
Dell Precision 7710
AMD FirePro W7170M, Intel Xeon E3-1535M v5
58 fps -37%
1900x1060 3ds Max (3dsmax-05)
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
93.6 fps
3DMark 06 1024x768 Score
29440 pontok
3DMark Vantage P Result
33390 pontok
3DMark 11 Performance
10738 pontok
3DMark Cloud Gate Standard Score
24854 pontok
3DMark Fire Strike Score
8003 pontok
3DMark Fire Strike Extreme Score
4175 pontok
3DMark Time Spy Score
2999 pontok
Segítség
alacsonyközepesmagasultra4K
BioShock Infinite (2013) 231.9 203.7 184.7 89.8
Dirt Rally (2015) 233.9 129.8 80.7 71.6 61.8
The Witcher 3 (2015) 167.2 103.6 59.1 31.2 21.8
Star Wars Battlefront (2015) 180.9 156.4 82.5 70.3 27.4
Rainbow Six Siege (2015) 278.2 189.5 107.3 78.8 34.9
Rise of the Tomb Raider (2016) 176.4 107 59.4 50.3 21
Deus Ex Mankind Divided (2016) 103.7 77.6 43.3 22.9 14.5
Battlefield 1 (2016) 165.8 139.5 68.7 60.6 25.1
Titanfall 2 (2016) 143.8 136.8 66.3 53.9 21.1
Call of Duty Infinite Warfare (2016) 120.8 114.2 79.9 68.7 30.9
For Honor (2017) 199.7 87.1 81.6 57.3 24.8
Ghost Recon Wildlands (2017) 107.7 53.7 48.4 26 19.5
Warhammer 40.000: Dawn of War III (2017) 84 41.2 28.7 25.4 9.6

Zajszint

Üresjárat
29.2 / 29.2 / 32.2 dB(A)
Terhelés
34.7 / 39.1 dB(A)
  red to green bar


30 dB
csendes
40 dB(A)
hallható
50 dB(A)
hangos

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm távolságról)   környezeti zaj: 29.2 dB(A)
Lenovo ThinkPad P71-20HK0004GE
Quadro P3000, i7-7820HQ, Samsung PM961 NVMe MZVLW512HMJP
MSI WE72 7RJ
Quadro M2200, i7-7700HQ, Samsung SM961 MZVPW256 m.2 PCI-e
Fujitsu Celsius H970
Quadro P4000, E3-1535M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
HP ZBook 17 G4-Y3J82AV
Quadro P5000, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
Dell Precision 7720
Quadro P5000, E3-1535M v6, Toshiba NVMe THNSN5512GPU7
Noise
-16%
-13%
-9%
-3%
off / környezet *
29.2
29.3
-0%
30.2
-3%
29.6
-1%
29.5
-1%
Idle Minimum *
29.2
36.3
-24%
30.2
-3%
29.6
-1%
29.5
-1%
Idle Average *
29.2
36.3
-24%
32.8
-12%
31.7
-9%
29.5
-1%
Idle Maximum *
32.2
36.6
-14%
32.8
-2%
34.4
-7%
29.5
8%
Load Average *
34.7
40.4
-16%
47.3
-36%
41.3
-19%
35
-1%
Load Maximum *
39.1
46.6
-19%
47.3
-21%
45.6
-17%
47.8
-22%
Witcher 3 ultra *
45.6
41

* ... a kisebb jobb

Max. terhelés
 44 °C40.9 °C43.5 °C
 35.6 °C34.7 °C33.1 °C
 29.8 °C30 °C29.6 °C
Maximum: 44 °C
Átlag: 35.7 °C
40.4 °C41.5 °C43.9 °C
34.5 °C34.8 °C32.1 °C
31.4 °C30.6 °C30.4 °C
Maximum: 43.9 °C
Átlag: 35.5 °C
Tápegység (max.)  39.7 °C | Szobahőmérséklet 22.5 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 35.7 °C / 96 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(±) The maximum temperature on the upper side is 44 °C / 111 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(±) The bottom heats up to a maximum of 43.9 °C / 111 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 27.1 °C / 81 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30 °C / 86 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-2.1 °C / -3.8 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.933.92530.1353127.431.74026.7325024.530.76323.830.1802432.910022.633.112521.235.216020.23720020.944.725019.351.831518.655.840018.556.550017.66363017.365.880017.764.5100017.960.8125018.358.5160018.658.7200018.760250019.355.1315019.249.8400019.455.4500019.356.5630019.152.8800018.645.81000018.238.71250017.835.71600017.332.8SPL30.870.9N1.426.5median 18.6median 55.1Delta0.8928.93129.829.128.528.426.529.130.529.726.628.325.928.525.427.822.227.920.628.220.131.119.432.418.93917.944.417.549.317.25517.257.817.460.817.861.118.362.718.664.918.961.319.158.819.26319.264.319.263.318.763.318.45917.856.517.350.130.673.81.430.5median 18.7median 57.81.112hearing rangehide median Pink NoiseLenovo ThinkPad P71-20HK0004GEFujitsu Celsius H970
Lenovo ThinkPad P71-20HK0004GE audio analysis

(-) | not very loud speakers (70.9 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.4% lower than median
(±) | linearity of bass is average (10.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.9% higher than median
(+) | mids are linear (6.4% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | reduced highs - on average 5% lower than median
(±) | linearity of highs is average (13.6% delta to prev. frequency)
Összességében 100 - 16.000 Hz
(±) | linearity of overall sound is average (26.6% difference to median)
Ugyanazon osztályhoz képest
» 89% of all tested devices in this class were better, 4% similar, 7% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Az összes tesztelt eszközzel összehasonlítva
» 80% of all tested devices were better, 4% similar, 17% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Fujitsu Celsius H970 audio analysis

(±) | speaker loudness is average but good (73.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 26.7% lower than median
(+) | bass is linear (5.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 5.4% lower than median
(±) | linearity of mids is average (8.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.1% away from median
(+) | highs are linear (6.2% delta to prev. frequency)
Összességében 100 - 16.000 Hz
(±) | linearity of overall sound is average (29.1% difference to median)
Ugyanazon osztályhoz képest
» 95% of all tested devices in this class were better, 2% similar, 3% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Az összes tesztelt eszközzel összehasonlítva
» 85% of all tested devices were better, 3% similar, 12% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Energiafogyasztás
Kikapcsolt állapot / Készenlétdarklight 0.38 / 0.49 Watt
Üresjáratdarkmidlight 7.44 / 18 / 21.8 Watt
Terhelés midlight 77.1 / 150.5 Watt
 color bar
Kulcs: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad P71-20HK0004GE
i7-7820HQ, Quadro P3000, Samsung PM961 NVMe MZVLW512HMJP, IPS, 3840x2160, 17.3"
Lenovo ThinkPad P70
6820HQ, Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH, IPS, 3840x2160, 17.3"
HP ZBook 17 G4-Y3J82AV
E3-1535M v6, Quadro P5000, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH, IPS, 3840x2160, 17.3"
Dell Precision 7720
E3-1535M v6, Quadro P5000, Toshiba NVMe THNSN5512GPU7, IGZO, 3840x2160, 17.3"
MSI WE72 7RJ
i7-7700HQ, Quadro M2200, Samsung SM961 MZVPW256 m.2 PCI-e, IPS, 1920x1080, 17.3"
Fujitsu Celsius H970
E3-1535M v6, Quadro P4000, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS LED, 1920x1080, 17.3"
Power Consumption
-16%
-27%
-22%
-24%
-5%
Idle Minimum *
7.44
12.1
-63%
12.9
-73%
9.6
-29%
15
-102%
10.7
-44%
Idle Average *
18
19.7
-9%
19.6
-9%
20.5
-14%
20.1
-12%
15.8
12%
Idle Maximum *
21.8
20.5
6%
23.6
-8%
22.9
-5%
23.8
-9%
17.8
18%
Load Average *
77.1
94.3
-22%
92.8
-20%
96.8
-26%
85.6
-11%
92
-19%
Load Maximum *
150.5
139.6
7%
190
-26%
202.1
-34%
128
15%
137
9%
Witcher 3 ultra *
148.5

* ... a kisebb jobb

Akkumulátor üzemidő
Üresjárat (WLAN nélkül, minimális fényerő)
14h 32min
WiFi Websurfing (Edge 38.14393.1066.0)
5h 58min
Big Buck Bunny H.264 1080p
8h 37min
Terhelés (maximális fényerő)
1h 06min
Lenovo ThinkPad P71-20HK0004GE
i7-7820HQ, Quadro P3000, 96 Wh
Lenovo ThinkPad P70
6820HQ, Quadro M3000M, 96 Wh
HP ZBook 17 G4-Y3J82AV
E3-1535M v6, Quadro P5000, 95 Wh
Dell Precision 7720
E3-1535M v6, Quadro P5000, 91 Wh
MSI WE72 7RJ
i7-7700HQ, Quadro M2200, 51 Wh
Fujitsu Celsius H970
E3-1535M v6, Quadro P4000, 96 Wh
Akkumulátor üzemidő
-16%
-16%
-8%
-55%
22%
Reader / Idle
872
464
-47%
469
-46%
685
-21%
268
-69%
1002
15%
H.264
517
452
-13%
316
-39%
405
-22%
181
-65%
573
11%
WiFi v1.3
358
361
1%
295
-18%
379
6%
177
-51%
542
51%
Load
66
64
-3%
92
39%
70
6%
42
-36%
74
12%

Pro

+ nagyon jó teljesítménykihasználás
+ jó, és általában csendes hűtés
+ nagyon jó 4K panel
+ használható alap színkalibráció
+ megfelelő üzemidő
+ kitűnő beviteli eszközök
+ könnyen bővíthető (4x RAM slot, 4x tárhelyöböl)

Kontra

- gyenge hangszórók
- PWM
- némi tekercszaj
- rossz webkamera
- drága
In review: Lenovo ThinkPad P71. Test model courtesy of Campuspoint.
In review: Lenovo ThinkPad P71. Test model courtesy of Campuspoint.

Ne akard megjavítani, ami nem romlott el – ez lehetett a Lenovo mottója a ThinkPad P71 tervezésekor. A P70 jó ideig az egyetlen 17 inches munkaállomás volt, komolyabb hibák nélkül.

Néhány dolog idén még jobb lett, például a Windows 10 méretezése (bár ez nem a Lenovo érdeme). A nagyon jó 4K panel nem változott, de a gyári kalibrációja jobban sikerült. A ház még mindig strapabíró, a beviteli eszközök kitűnőek maradtak, és a hűtés is jó, amelynek köszönhetően majdnem tökéletesen hozza a lehetséges maximális teljesítményt is.

Nézzük, hogy mi változott viszont. Az új Kaby Lake-es processzor csak kisebb frissítés a Skylake modellhez képest, de a Quadro P3000 GPU sokkal gyorsabb, mégis takarékosabb, mint a Quadro M3000M volt. A ventilátorok legtöbbször nagyon csendesek, de mégsem melegszik túl a gép, szóval terhelés alatt is kellemes használni. Ez azonban valószínűleg változni fog, ha valamelyik erősebb videokártyát (P4000 & P5000) kérjük a gépbe.

A ThinkPad P71 fő erénye az új generációs videokártya. A jó hűtésnek, remek kijelzőnek, és kiváló beviteli eszközöknek hála, ez jelenleg az egyik legjobb mobil munkaállomás.

Idén sem találtunk komolyabb hiányosságot. A webkamerát végre cserélhetnék, és egy ekkora mobil munkaállomás jobb hangszórókat is kaphatna. Az időszakos tekercszaj még zavaróbbnak tűnik, mert kis terhelés esetén gyakrabban kikapcsol a ventilátor, így minden járulékos zajt jobban hallani lehet.

Ez az eredeti értékelés rövidített változata. A teljes, angol nyelvű cikk itt olvasható.

Lenovo ThinkPad P71-20HK0004GE - 10/22/2019 v7 (old)
Andreas Osthoff

Váz
83 / 98 → 84%
Billentyűzet
94%
Érintőpad
86%
Csatlakoztathatóság
78 / 80 → 98%
Súly
53 / 10-66 → 77%
Akkumulátor
73 / 95 → 77%
Kijelző
91%
Játékok alatti teljesítmény
82%
Alkalmazások alatti teljesítmény
84%
Workstation
80%
Hőmérséklet
90 / 95 → 95%
Zaj
84 / 90 → 93%
Audio
40%
Camera
40 / 85 → 47%
Átlag
76%
86%
Workstation - Súlyozott átlag

Price comparison

Please share our article, every link counts!
Mail Logo
> Magyarország - Kezdőlap > Tesztek / áttekintők > Lenovo ThinkPad P71 (i7, P3000, 4K) Workstation rövid értékelés
Andreas Osthoff, 2017-12-21 (Update: 2017-12-21)
