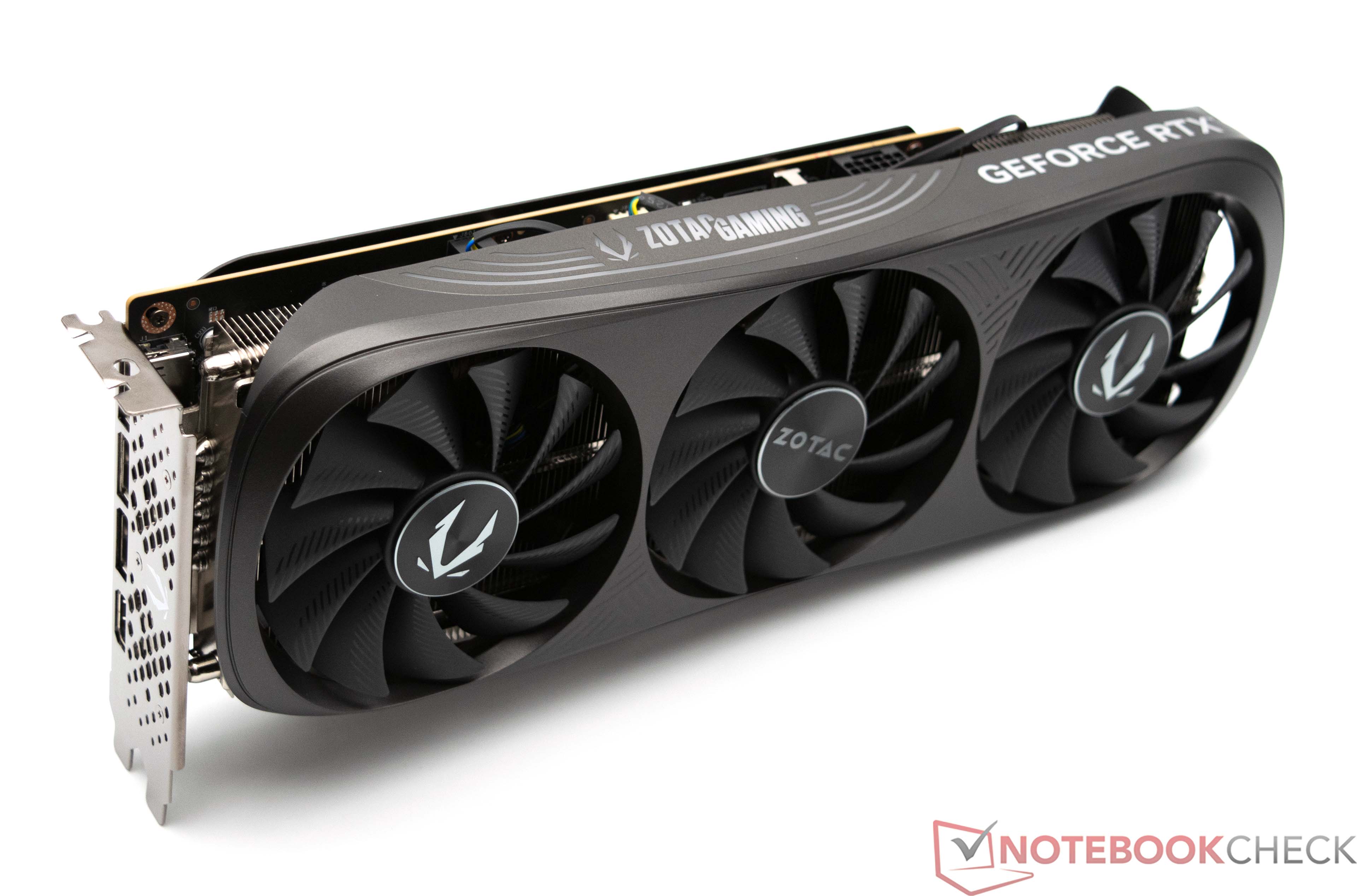

NVIDIA GeForce RTX 4080 Super

Az Nvidia GeForce RTX 4080 Super egy csúcskategóriás asztali grafikus kártya, amely az Ada Lovelace architektúrán alapul. Az AD103 chipet használja teljes konfigurációban, 10 240 maggal és 16 GB GDDR6X grafikus memóriával (256 bites busz 23 Gbites).
A sugárkövetési teljesítmény a 76 dedikált magnak köszönhetően kiemelkedő, a 320 Tensor magot pedig a DLSS 3-hoz lehet használni.
A játékteljesítmény DLSS nélkül ideális 4k-ban 60fps körüli, 2k-ban pedig magasabb képkockasebességgel a ray tracing effektusok nélküli, igényes játékokban (pl. F1 22 vagy Cyberpunk 2077). Sugárkövetéssel a DLSS használata ajánlott. A versenytársakkal összehasonlítva a DLSS és ray tracing nélküli teljesítmény valamivel jobb, mint a lényegesen olcsóbb AMD Radeon RX 7900 XT.
A jelenleg kapható RTX 4080 kártyák nagyon nagyok (2,5 vagy 3 slot) és az új 12VHPWR csatlakozót használják (ami okozott némi problémát az adapterekkel).
Az AD103 chip a TSMC-nél készül 5nm-es (4N EUV-vel) és 320 wattos TGP (Total Graphics Power) teljesítményre specifikált (az Nvidia legalább 750 wattos tápegységet ajánl).
GeForce RTX 4000 Széria
| |||||||||||||||||||||||||||||||
Kódnév | AD103-400-A1 | ||||||||||||||||||||||||||||||
Architektúra | Ada Lovelace | ||||||||||||||||||||||||||||||
Pipeline-ok | 10240 - egységes | ||||||||||||||||||||||||||||||
TMUs | 320 | ||||||||||||||||||||||||||||||
ROPs | 112 | ||||||||||||||||||||||||||||||
Raytracing Cores | 80 | ||||||||||||||||||||||||||||||
Tensor / AI Cores | 320 | ||||||||||||||||||||||||||||||
Mag sebesség | 2295 - 2550 (Boost) MHz | ||||||||||||||||||||||||||||||
Theoretical Performance | 52.22 TFLOPS FP16, 52.22 TFLOPS FP32, 816 TFLOPS FP64 | ||||||||||||||||||||||||||||||
Cache | L2: 64 MB | ||||||||||||||||||||||||||||||
Memória sebesség | 23000 effective = 1438 MHz | ||||||||||||||||||||||||||||||
Memória Busz Szélesség | 256 Bit | ||||||||||||||||||||||||||||||
Memória Típus | GDDR6X | ||||||||||||||||||||||||||||||
Max Memória | 16 GB | ||||||||||||||||||||||||||||||
Shader Memória | nem | ||||||||||||||||||||||||||||||
Memory Bandwidth | 736.3 GB/s | ||||||||||||||||||||||||||||||
API | DirectX 12 Ultimate (12_2), Shader 6.7, OpenGL 4.6, OpenCL 3.0, Vulkan 1.3 | ||||||||||||||||||||||||||||||
Energiafogyasztás | 320 Watt | ||||||||||||||||||||||||||||||
Tranzisztorok száma | 45.900 Millió | ||||||||||||||||||||||||||||||
Die Size | 379 mm² | ||||||||||||||||||||||||||||||
technológia | 5 nm | ||||||||||||||||||||||||||||||
PCIe | PCIe 4.0 x16 | ||||||||||||||||||||||||||||||
Displays | 4 Displays (max.), HDMI 2.1, DisplayPort 1.4a | ||||||||||||||||||||||||||||||
Megjelenés ideje | 31.01.2024 |
Benchmarkok
3DM Vant. Perf. total +
specvp12 sw-03 +

* A kisebb számok nagyobb teljesítményt jelentenek.
Játékok Benchmarkjai
A következő benchmark értékeket a saját noteszgép tesztjeink során állapítottuk meg. Tesztjeink során mért teljesítményt minden esetben befolyásolja a grafikus memória, az órajel, a processzor, a rendszerbeállítás, a driverek és az operációs rendszer. Ennél fogva az eredmények nem vonatkoztathatóak minden, ezzel a GPU-val szerelt noteszgépre. Részletes benchmark információért kattintson az FPS számra.

Skull & Bones
2024
Helldivers 2
2024
Enshrouded
2024
Palworld
2024
Ready or Not
2023
The Finals
2023
EA Sports WRC
2023
Alan Wake 2
2023
Lords of the Fallen
2023
Total War Pharaoh
2023
Counter-Strike 2
2023
Baldur's Gate 3
2023
Lies of P
2023
Starfield
2023
Armored Core 6
2023
Immortals of Aveum
2023
Atlas Fallen
2023
F1 23
2023
Diablo 4
2023
Dead Island 2
2023
The Last of Us
2023
Company of Heroes 3
2023
Sons of the Forest
2023
Atomic Heart
2023
Returnal
2023
Hogwarts Legacy
2023
Dead Space Remake
2023
The Witcher 3 v4.00
2023
High On Life
2023
The Quarry
2022
F1 22
2022
Ghostwire Tokyo
2022
Cyberpunk 2077 1.6
2022
GRID Legends
2022
Dying Light 2
2022
God of War
2022
Forza Horizon 5
2021
Far Cry 6
2021
F1 2021
2021
Dirt 5
2020
Watch Dogs Legion
2020
Horizon Zero Dawn
2020
Death Stranding
2020
F1 2020
2020
Borderlands 3
2019
Control
2019
Anno 1800
2019
Far Cry New Dawn
2019
Metro Exodus
2019
Forza Horizon 4
2018
Far Cry 5
2018
X-Plane 11.11
2018
Dota 2 Reborn
2015
The Witcher 3
2015
GTA V
2015alacsony | közepes | magas | ultra | QHD | 4K | |
---|---|---|---|---|---|---|
Skull & Bones | 205 | 172 | 137 | 114 | 78 | |
Helldivers 2 | 214 | 202 | 199.1 | 196.7 | 165.8 | 99.4 |
Enshrouded | 181 | 162 | 140 | 121 | 97 | 61 |
Palworld | 240 | 238 | 226 | 224 | 181 | 104 |
Prince of Persia The Lost Crown | 359 | 359 | 359 | 359 | 358 | |
Ready or Not | 451 | 394 | 372 | 329 | 216 | 98 |
The Finals | 426 | 387 | 384 | 321 | 213 | 103 |
Avatar Frontiers of Pandora | 213 | 196 | 167 | 134 | 92 | 49 |
Call of Duty Modern Warfare 3 2023 | 367 | 325 | 269 | 252 | 195 | 133 |
EA Sports WRC | 300 | 205 | 191 | 185 | 158 | 91 |
Alan Wake 2 | 165 | 150 | 140 | 101 | 57 | |
Lords of the Fallen | 203 | 173 | 136 | 103 | 74 | 40 |
Total War Pharaoh | 636 | 411 | 286 | 232 | 213 | 120 |
Assassin's Creed Mirage | 279 | 259 | 245 | 198 | 162 | 102 |
Counter-Strike 2 | 351 | 344 | 341 | 336 | 274 | 152.4 |
Cyberpunk 2077 2.2 Phantom Liberty | 231 | 227 | 205 | 185 | 125 | 58 |
Baldur's Gate 3 | 276 | 254 | 243 | 239 | 187 | 101 |
Lies of P | 406 | 376 | 336 | 310 | 234 | 122 |
Starfield | 161 | 155 | 132 | 122 | 103 | 68 |
Armored Core 6 | 119.7 | 119.9 | 119.8 | 119.9 | 114.1 | 110.2 |
Immortals of Aveum | 148 | 133 | 121 | 91 | 54 | |
Atlas Fallen | 200 | 200 | 200 | 200 | 199 | 122 |
Ratchet & Clank Rift Apart | 231 | 229 | 194 | 170 | 144 | 92 |
F1 23 | 462 | 495 | 428 | 169 | 110 | 55 |
Diablo 4 | 400 | 400 | 399 | 394 | 295 | 151 |
Star Wars Jedi Survivor | 189 | 184 | 174 | 170 | 117 | 58 |
Dead Island 2 | 368 | 353 | 314 | 279 | 229 | 123 |
The Last of Us | 229 | 204 | 190 | 172 | 121 | 61 |
Resident Evil 4 Remake | 347 | 292 | 277 | 195 | 154 | 89 |
Company of Heroes 3 | 379 | 343 | 291 | 290 | 238 | 150 |
Sons of the Forest | 145 | 141 | 137 | 135 | 132 | 103 |
Atomic Heart | 300 | 280 | 217 | 177 | 138 | 82 |
Returnal | 227 | 224 | 205 | 180 | 141 | 87 |
Hogwarts Legacy | 205 | 185 | 166 | 154 | 111 | 68 |
Dead Space Remake | 235 | 227 | 199 | 198 | 138 | 68 |
The Witcher 3 v4.00 | 363 | 314 | 280 | 265 | 231 | 118 |
High On Life | 466 | 405 | 325 | 279 | 179 | 76 |
The Callisto Protocol | 292 | 270 | 261 | 207 | 168 | 111 |
Need for Speed Unbound | 283 | 273 | 245 | 232 | 179 | 102 |
Spider-Man Miles Morales | 218 | 210 | 190 | 191 | 185 | 117 |
Uncharted Legacy of Thieves Collection | 161 | 159 | 156 | 156 | 132 | 81 |
A Plague Tale Requiem | 249 | 214 | 169 | 135 | 101 | 58 |
The Quarry | 384 | 294 | 254 | 209 | 149 | 83 |
F1 22 | 456 | 461 | 396 | 173 | 117 | 60 |
Ghostwire Tokyo | 318 | 313 | 307 | 303 | 267 | 126 |
Tiny Tina's Wonderlands | 489 | 412 | 305 | 242 | 172 | 92 |
Cyberpunk 2077 1.6 | 236 | 233 | 225 | 202 | 128 | 62 |
GRID Legends | 278 | 250 | 232 | 222 | 209 | 164 |
Dying Light 2 | 217 | 165.9 | 123.7 | 65 | ||
God of War | 278 | 274 | 234 | 166 | 139 | 101 |
Forza Horizon 5 | 404 | 308 | 285 | 195 | 175 | 131 |
Guardians of the Galaxy | 250 | 250 | 249 | 241 | 239 | 147 |
Far Cry 6 | 258 | 225 | 202 | 182 | 178 | 109 |
F1 2021 | 731 | 689 | 584 | 304 | 253 | 147 |
Assassin´s Creed Valhalla | 347 | 281 | 237 | 209 | 165 | 99 |
Dirt 5 | 279 | 221 | 169 | 150 | 149 | 144 |
Watch Dogs Legion | 149 | 144.5 | 127 | 80.5 | ||
Mafia Definitive Edition | 248 | 232 | 202 | 111.4 | ||
Horizon Zero Dawn | 307 | 277 | 259 | 245 | 212 | 120 |
Death Stranding | 240 | 240 | 240 | 240 | 239 | 154 |
F1 2020 | 610 | 503 | 499 | 425 | 345 | 206 |
Borderlands 3 | 260 | 230 | 203 | 194 | 168 | 98 |
Control | 238 | 232 | 226 | 160 | 82 | |
Anno 1800 | 202 | 192.9 | 160.2 | 86.7 | 82.7 | 64.3 |
Far Cry New Dawn | 228 | 198 | 191 | 172 | 171 | 142 |
Metro Exodus | 278 | 272 | 219 | 182 | 157 | 103 |
Assassin´s Creed Odyssey | 241 | 235 | 212 | 158 | 135 | 96 |
Forza Horizon 4 | 369 | 344 | 342 | 322 | 306 | 305 |
Shadow of the Tomb Raider | 328 | 311 | 297 | 287 | 242 | 133 |
Strange Brigade | 716 | 583 | 546 | 512 | 396 | 200 |
Far Cry 5 | 274 | 240 | 222 | 216 | 206 | 142 |
X-Plane 11.11 | 246 | 215 | 161 | 137 | ||
Final Fantasy XV Benchmark | 235 | 234 | 228 | 200 | 120 | |
Assassin´s Creed Origins | 263 | 246 | 234 | 208 | 174 | 118 |
Dota 2 Reborn | 289 | 261 | 251 | 233 | 227 | |
The Witcher 3 | 791 | 731 | 522 | 258 | 213 | 199 |
GTA V | 188 | 188 | 187 | 170 | 168 | 179 |
< 30 fps < 60 fps < 120 fps ≥ 120 fps | 1 71 | 1 74 | 1 76 | 3 68 | 14 61 | 8 41 28 |
