Name: GMK NucBox K9
Brand: GMK

Miután néhány hónappal ezelőtt áttekintettük a GMK NucBox K6-ot, most készen állunk arra, hogy a NucBox K9-et az újabb AI-képes Meteor Lake-H processzorral kiegészítve kezeljük. A CPU AMD-ről Intelre történő cseréjétől eltekintve azonban a két modell váza azonos marad, ezért javasoljuk, hogy tekintse meg a NucBox NucBox Nukleáris számítógépről szóló értékelésünket NucBox K6 a rendszer fizikai jellemzőinek megismeréséhez.

Tesztkészülékünk Core Ultra 5 125H CPU-val, 1 TB SSD-vel és 32 GB RAM-mal van felszerelve, körülbelül 860 dollárért, vagy 570 dollárért, ha akciós. A felhasználók konfigurálhatják úgy is, hogy egyáltalán nincs RAM vagy SSD a csupasz beállításhoz, de a Core Ultra 5 CPU minden opcióban fix.

Az alternatívák között szerepelnek más teljesítményű mini PC-k, mint például a Beelink SER8, Bosgame M1, vagy Geekom AX8 Pro.

További GMKtec vélemények:

Megjegyzés: Nemrégiben frissítettük a minősítési rendszerünket, és a 8-as verzió eredményei nem hasonlíthatók össze a 7-es verzió eredményeivel. További információk elérhetők itt .

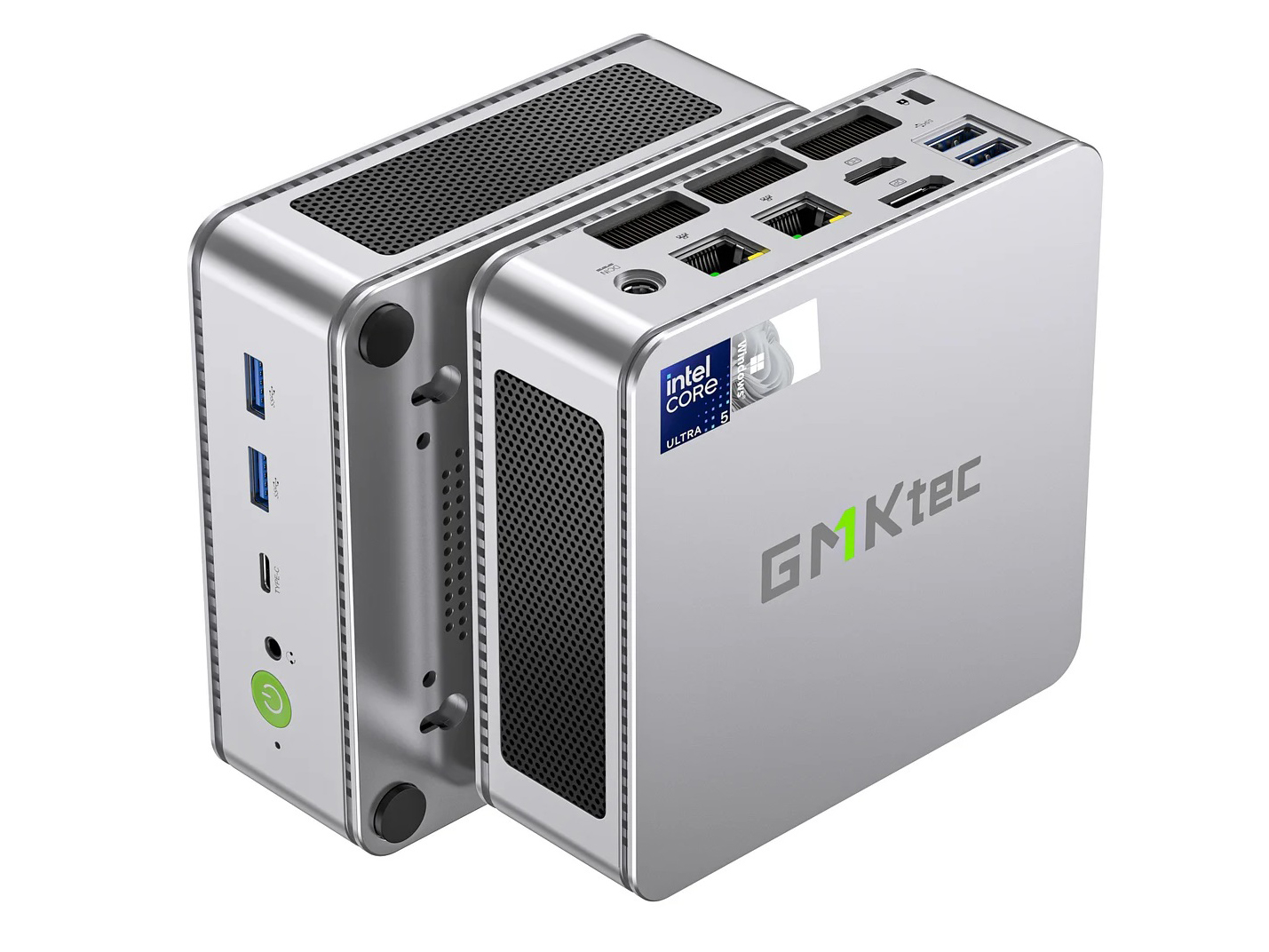

Eset - A színváltás

A műanyag és fém váz megegyezik az AMD-üzemű NucBox K6 készülékkel, bár matt szürke/ezüst színben.

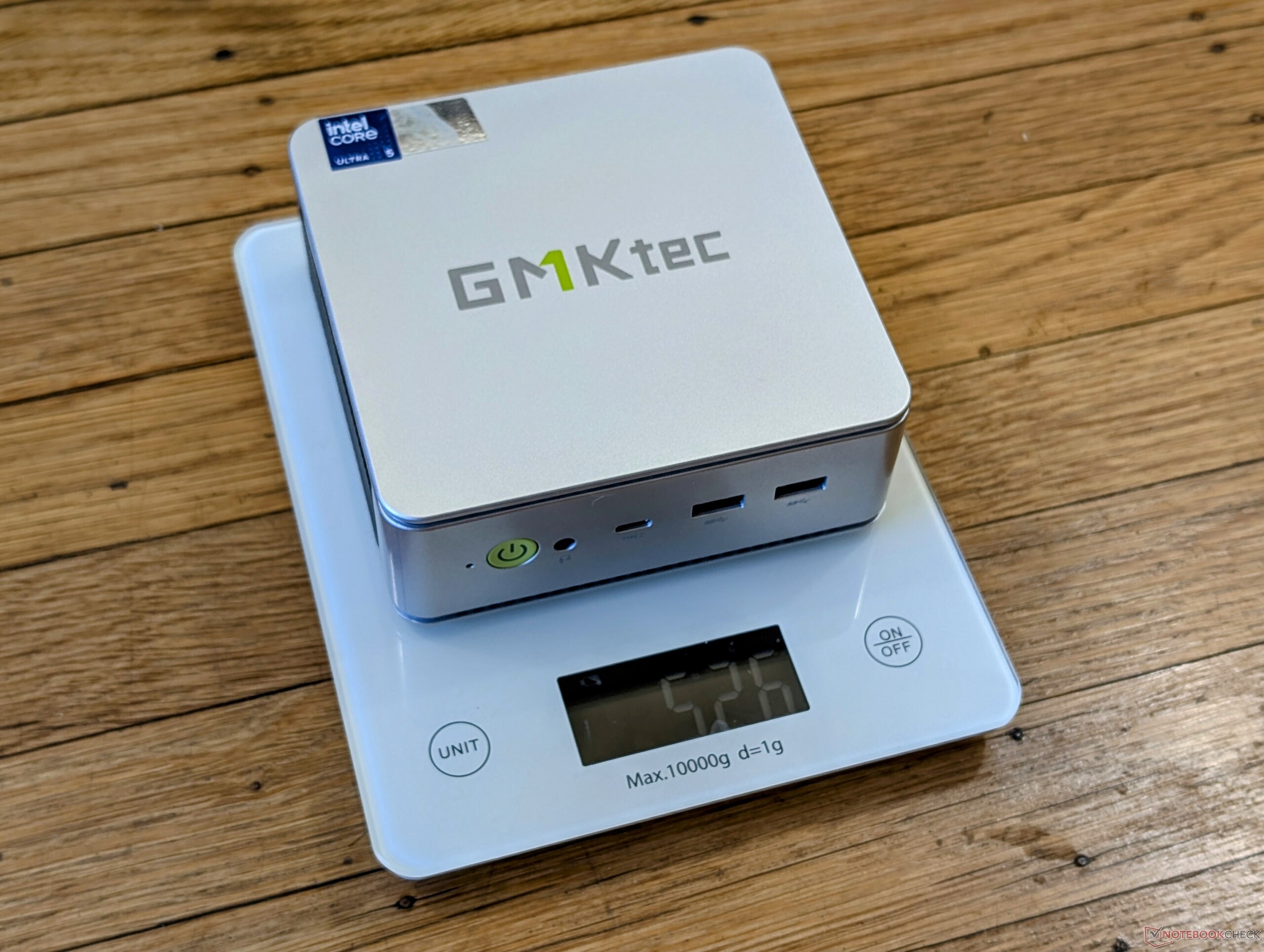

Méret összehasonlítás

Csatlakoztathatóság - Gyorsabb USB-portok

Míg a portok lehetőségei és elhelyezése nem változtak a NucBox K6-hoz képest, az USB-portok továbbfejlesztésre kerültek. Az összes USB-A port mostantól USB4 a 2.0 vagy 3.2 helyett. Eközben az USB-C port hivatalosan is támogatja a Thunderbolt 4-et.

Harmadik féltől származó USB-C hálózati adapterek táplálhatják a rendszert a hordozható hálózati adapter helyett, ha az elegendő energiát tud biztosítani. A teljesítmény és a kompatibilitás azonban nem garantált minden USB-C adapterrel.

Kommunikáció

A Wi-Fi 6 és a Bluetooth 5.2 csatlakoztathatósághoz a MediaTek RZ616 helyett egy Intel AX201 kerül alapfelszereltségbe. A Wi-Fi 6E és a Wi-Fi 7 a költségek megtakarítása érdekében nem szerepel a csomagban.

Networking
iperf3 transmit AXE11000
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1531 (1372^min - 1639^max) MBit/s +86%
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1491 (1413^min - 1572^max) MBit/s +81%
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1470 (1310^min - 1625^max) MBit/s +79%
GMK NucBox K9 Intel Wi-Fi 6 AX201	823 (607^min - 901^max) MBit/s
Beelink SER8 Intel Wi-Fi 6 AX200	812 (641^min - 888^max) MBit/s -1%
GMK NucBox K6 MediaTek RZ616	634 (574^min - 685^max) MBit/s -23%
iperf3 receive AXE11000
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1479 (1255^min - 1539^max) MBit/s +94%
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1449 (1247^min - 1560^max) MBit/s +90%
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1384 (1200^min - 1495^max) MBit/s +81%
GMK NucBox K6 MediaTek RZ616	1222 (1074^min - 1368^max) MBit/s +60%
Beelink SER8 Intel Wi-Fi 6 AX200	784 (679^min - 845^max) MBit/s +3%
GMK NucBox K9 Intel Wi-Fi 6 AX201	764 (635^min - 829^max) MBit/s
iperf3 transmit AXE11000 6GHz
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1324 (1090^min - 1580^max) MBit/s
GMK NucBox K6 MediaTek RZ616	432 (212^min - 471^max) MBit/s
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	394 (359^min - 432^max) MBit/s
iperf3 receive AXE11000 6GHz
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1321 (1233^min - 1393^max) MBit/s
GMK NucBox K6 MediaTek RZ616	984 (937^min - 1048^max) MBit/s
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	684 (650^min - 718^max) MBit/s

GMK NucBox K9; iperf3 transmit AXE11000; iperf 3.1.3: Ø824 (607-901)

GMK NucBox K9; iperf3 receive AXE11000; iperf 3.1.3: Ø763 (635-829)

Karbantartás

A bővíthető alkatrészek megegyeznek a NucBox K6-éval.

Fenntarthatóság

A gyártó "Fenntarthatóan gyártott" rendszert hirdet, anélkül, hogy részletesen kifejtené, hogy ez mit jelent. Maga a csomagolás többnyire kartonpapír, némi műanyag csomagolással.

Tartozékok és garancia

A kiskereskedelmi doboz a szokásos papírmunka és a hálózati adapter mellett tartalmaz egy VESA rögzítőkonzolt és egy HDMI-kábelt is. Az Egyesült Államokban történő vásárlás esetén egy év gyártói garancia érvényes.

Teljesítmény - Meteor Lake Standard

Vizsgálati feltételek

Az alábbi összehasonlító tesztek futtatása előtt a Windows-t teljesítmény üzemmódba állítottuk.

Processzor

A CPU teljesítménye ott van, ahol azt várjuk, hogy az adatbázisunkban lévő más PC-khez képest azonos Core Ultra 5 125H processzorral. A Meteor Lake CPU fej-fej mellett halad a legutóbbi generációs Core i9-13900H ami papíron remekül hangzik, amíg nem jut eszébe, hogy az AMD-vel hajtott NucBox K6 a régebbi Ryzen 7 7840HS még gyorsabb, mint bármelyik Intel megoldás. Így a Core Ultra 7 opció hiánya furcsa, tekintve, hogy a NucBox K9 az újabb doboz.

Bár integrált mesterséges intelligenciát tartalmaz, nem kompatibilis a Co-Pilot+ programmal.

Cinebench R15 Multi Loop

GMK NucBox K9 Intel Core Ultra 5 125H: Ø1902 (1827.4-1965.8)

GMK NucBox K6 AMD Ryzen 7 7840HS: Ø2520 (2510.2-2537.27)

GMK NucBox M6 AMD Ryzen 5 6600H: Ø1720 (1708.16-1737.02)

Beelink SER8 AMD Ryzen 7 8845HS: Ø2607 (2586.82-2626.57)

Beelink SEi12 Core i5-1235U Intel Core i5-1235U: Ø1219 (1203.04-1409.15)

BOSGAME M1 AMD Ryzen 7 7840HS: Ø2554 (2501.09-2597.23)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	91.5 pt
Minisforum G7 PT AMD Ryzen 9 7945HX	91.4 pt
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	90 pt
Beelink SER8 AMD Ryzen 7 8845HS	70.5 pt
GMK NucBox K6 AMD Ryzen 7 7840HS	69.6 pt
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	69.6 pt
Geekom AE7 AMD Ryzen 9 7940HS	69.6 pt
Geekom AX8 Pro AMD Ryzen 9 8945H	69.1 pt
Acemagic F2A Intel Core Ultra 7 155H	67.6 pt
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	65.9 pt
Geekom XT13 Pro Intel Core i9-13900H	61.8 pt
GMK NucBox K9 ^-1! Intel Core Ultra 5 125H	61.2 pt
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	60.2 pt
Asus NUC 14 Pro Intel Core Ultra 5 125H	58.1 pt
Átlagos Intel Core Ultra 5 125H	55.8 pt
GMK NucBox M6 AMD Ryzen 5 6600H	54.7 pt
Beelink SEi12 Core i5-1235U ^-2! Intel Core i5-1235U	50.7 pt
Newsmay AC8F-POE Intel Processor N100	19.4 pt

Cinebench R23 / Multi Core
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	31070 Points +139%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	30989 Points +139%
Minisforum G7 PT AMD Ryzen 9 7945HX	30799 Points +137%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	19249 Points +48%
Acemagic F2A Intel Core Ultra 7 155H	18497 Points +42%
Beelink SER8 AMD Ryzen 7 8845HS	16661 (16363.9^min - 16661^max) Points +28%
Geekom AE7 AMD Ryzen 9 7940HS	16099 Points +24%
GMK NucBox K6 AMD Ryzen 7 7840HS	15947 (9378.75^min - 15947.3^max) Points +23%
Geekom AX8 Pro AMD Ryzen 9 8945H	15516 Points +19%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	15012 Points +16%
Asus NUC 14 Pro Intel Core Ultra 5 125H	14516 Points +12%
GMK NucBox K9 Intel Core Ultra 5 125H	12989 (12625.3^min - 12989.4^max) Points
Átlagos Intel Core Ultra 5 125H (9194 - 14564, n=6)	12308 Points -5%
Geekom XT13 Pro Intel Core i9-13900H	11997 Points -8%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	11790 Points -9%
GMK NucBox M6 AMD Ryzen 5 6600H	10418 (10142.8^min - 10418^max) Points -20%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	8128 (7685.59^min - 8128.32^max) Points -37%
Newsmay AC8F-POE Intel Processor N100	1946 Points -85%

Cinebench R23 / Single Core
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	2212 Points +27%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	2167 Points +25%
Minisforum G7 PT AMD Ryzen 9 7945HX	1957 Points +13%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1917 Points +10%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	1838 Points +6%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	1825 Points +5%
Geekom AX8 Pro AMD Ryzen 9 8945H	1808 Points +4%
Geekom AE7 AMD Ryzen 9 7940HS	1788 Points +3%
Beelink SER8 AMD Ryzen 7 8845HS	1783 Points +3%
Acemagic F2A Intel Core Ultra 7 155H	1771 Points +2%
GMK NucBox K6 AMD Ryzen 7 7840HS	1770 Points +2%
GMK NucBox K9 Intel Core Ultra 5 125H	1735 Points
Asus NUC 14 Pro Intel Core Ultra 5 125H	1721 Points -1%
Geekom XT13 Pro Intel Core i9-13900H	1719 Points -1%
Átlagos Intel Core Ultra 5 125H (1549 - 1735, n=6)	1668 Points -4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1610 Points -7%
GMK NucBox M6 AMD Ryzen 5 6600H	1486 Points -14%
Newsmay AC8F-POE Intel Processor N100	843 Points -51%

Cinebench R20 / CPU (Multi Core)
Minisforum G7 PT AMD Ryzen 9 7945HX	12210 Points +147%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	11814 Points +139%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	11291 Points +128%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	7513 Points +52%
Acemagic F2A Intel Core Ultra 7 155H	7188 Points +45%
Beelink SER8 AMD Ryzen 7 8845HS	6431 Points +30%
Geekom AE7 AMD Ryzen 9 7940HS	6321 Points +28%
GMK NucBox K6 AMD Ryzen 7 7840HS	6250 Points +26%
Geekom AX8 Pro AMD Ryzen 9 8945H	6153 Points +24%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	5811 Points +17%
Asus NUC 14 Pro Intel Core Ultra 5 125H	5617 Points +14%
GMK NucBox K9 Intel Core Ultra 5 125H	4948 Points
Geekom XT13 Pro Intel Core i9-13900H	4935 Points 0%
Átlagos Intel Core Ultra 5 125H (3673 - 5618, n=6)	4766 Points -4%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	4319 Points -13%
GMK NucBox M6 AMD Ryzen 5 6600H	4106 Points -17%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	3111 Points -37%
Newsmay AC8F-POE Intel Processor N100	748 Points -85%

Cinebench R20 / CPU (Single Core)
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	846 Points +27%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	840 Points +27%
Minisforum G7 PT AMD Ryzen 9 7945HX	754 Points +14%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	736 Points +11%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	706 Points +6%
Geekom AX8 Pro AMD Ryzen 9 8945H	703 Points +6%
Geekom AE7 AMD Ryzen 9 7940HS	700 Points +5%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	699 Points +5%
Beelink SER8 AMD Ryzen 7 8845HS	698 Points +5%
GMK NucBox K6 AMD Ryzen 7 7840HS	688 Points +4%
Acemagic F2A Intel Core Ultra 7 155H	679 Points +2%
GMK NucBox K9 Intel Core Ultra 5 125H	664 Points
Geekom XT13 Pro Intel Core i9-13900H	649 Points -2%
Átlagos Intel Core Ultra 5 125H (622 - 664, n=6)	643 Points -3%
Asus NUC 14 Pro Intel Core Ultra 5 125H	622 Points -6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	620 Points -7%
GMK NucBox M6 AMD Ryzen 5 6600H	584 Points -12%
Newsmay AC8F-POE Intel Processor N100	326 Points -51%

Cinebench R15 / CPU Multi 64Bit
Minisforum G7 PT AMD Ryzen 9 7945HX	4998 Points +154%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	4793 Points +144%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	4611 Points +135%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	2948 Points +50%
Acemagic F2A Intel Core Ultra 7 155H	2738 Points +39%
Beelink SER8 AMD Ryzen 7 8845HS	2627 (2586.82^min - 2626.57^max) Points +34%
Geekom AE7 AMD Ryzen 9 7940HS	2544 Points +29%
GMK NucBox K6 AMD Ryzen 7 7840HS	2537 (2510.2^min - 2537.27^max) Points +29%
Geekom AX8 Pro AMD Ryzen 9 8945H	2521 Points +28%
Geekom XT13 Pro Intel Core i9-13900H	2448 Points +25%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	2435 Points +24%
Asus NUC 14 Pro Intel Core Ultra 5 125H	2141 Points +9%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	2022 Points +3%
Átlagos Intel Core Ultra 5 125H (1700 - 2245, n=6)	1983 Points +1%
GMK NucBox K9 Intel Core Ultra 5 125H	1966 (1827.4^min - 1965.8^max) Points
GMK NucBox M6 AMD Ryzen 5 6600H	1737 (1708.16^min - 1737.02^max) Points -12%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1409 (1203.04^min - 1409.15^max) Points -28%
Newsmay AC8F-POE Intel Processor N100	298 Points -85%

Cinebench R15 / CPU Single 64Bit
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	315 Points +25%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	313 Points +25%
Minisforum G7 PT AMD Ryzen 9 7945HX	309 Points +23%
Geekom AX8 Pro AMD Ryzen 9 8945H	284 Points +13%
Beelink SER8 AMD Ryzen 7 8845HS	283 Points +13%
Geekom AE7 AMD Ryzen 9 7940HS	281 Points +12%
GMK NucBox K6 AMD Ryzen 7 7840HS	280 Points +12%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	273 Points +9%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	263 Points +5%
Acemagic F2A Intel Core Ultra 7 155H	258 Points +3%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	252 Points 0%
GMK NucBox K9 Intel Core Ultra 5 125H	251 Points
Asus NUC 14 Pro Intel Core Ultra 5 125H	248 Points -1%
Geekom XT13 Pro Intel Core i9-13900H	245 Points -2%
Átlagos Intel Core Ultra 5 125H (235 - 251, n=6)	244 Points -3%
GMK NucBox M6 AMD Ryzen 5 6600H	243 Points -3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	231 Points -8%
Newsmay AC8F-POE Intel Processor N100	138 Points -45%

Blender / v2.79 BMW27 CPU
Newsmay AC8F-POE Intel Processor N100	1522 Seconds * -514%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	390 Seconds * -57%
GMK NucBox M6 AMD Ryzen 5 6600H	293 Seconds * -18%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	288 Seconds * -16%
Átlagos Intel Core Ultra 5 125H (228 - 364, n=6)	285 Seconds * -15%
Geekom XT13 Pro Intel Core i9-13900H	261 Seconds * -5%
GMK NucBox K9 Intel Core Ultra 5 125H	248 Seconds *
Asus NUC 14 Pro Intel Core Ultra 5 125H	228 Seconds * +8%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	223 Seconds * +10%
Geekom AX8 Pro AMD Ryzen 9 8945H	206 Seconds * +17%
GMK NucBox K6 AMD Ryzen 7 7840HS	199 Seconds * +20%
Geekom AE7 AMD Ryzen 9 7940HS	197 Seconds * +21%
Beelink SER8 AMD Ryzen 7 8845HS	191 Seconds * +23%
Acemagic F2A Intel Core Ultra 7 155H	178 Seconds * +28%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	165 Seconds * +33%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	131 Seconds * +47%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	109 Seconds * +56%
Minisforum G7 PT AMD Ryzen 9 7945HX	99 Seconds * +60%

7-Zip 18.03 / 7z b 4
Minisforum G7 PT AMD Ryzen 9 7945HX	131378 MIPS
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	117224 MIPS
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	101652 MIPS
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	72894 MIPS
Geekom AE7 AMD Ryzen 9 7940HS	71631 MIPS
Beelink SER8 AMD Ryzen 7 8845HS	70937 MIPS
GMK NucBox K6 AMD Ryzen 7 7840HS	70782 MIPS
Geekom AX8 Pro AMD Ryzen 9 8945H	66557 MIPS
Acemagic F2A Intel Core Ultra 7 155H	66438 MIPS
Geekom XT13 Pro Intel Core i9-13900H	56068 MIPS
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	54851 MIPS
GMK NucBox M6 AMD Ryzen 5 6600H	49353 MIPS
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	45820 MIPS
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	35580 MIPS
Newsmay AC8F-POE Intel Processor N100	8725 MIPS
Asus NUC 14 Pro Intel Core Ultra 5 125H	0 MIPS
Átlagos Intel Core Ultra 5 125H (0 - 0, n=2)	0 MIPS

7-Zip 18.03 / 7z b 4 -mmt1
Minisforum G7 PT AMD Ryzen 9 7945HX	7609 MIPS +52%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	7276 MIPS +45%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	7040 MIPS +41%
Beelink SER8 AMD Ryzen 7 8845HS	6714 MIPS +34%
Geekom AX8 Pro AMD Ryzen 9 8945H	6691 MIPS +34%
GMK NucBox K6 AMD Ryzen 7 7840HS	6676 MIPS +33%
Geekom AE7 AMD Ryzen 9 7940HS	6661 MIPS +33%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	6198 MIPS +24%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	5980 MIPS +20%
Geekom XT13 Pro Intel Core i9-13900H	5828 MIPS +16%
GMK NucBox M6 AMD Ryzen 5 6600H	5720 MIPS +14%
Acemagic F2A Intel Core Ultra 7 155H	5485 MIPS +10%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	5333 MIPS +7%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	5192 MIPS +4%
Asus NUC 14 Pro Intel Core Ultra 5 125H	5136 MIPS +3%
GMK NucBox K9 Intel Core Ultra 5 125H	5004 MIPS
Átlagos Intel Core Ultra 5 125H (4663 - 5136, n=6)	4948 MIPS -1%
Newsmay AC8F-POE Intel Processor N100	3583 MIPS -28%

Geekbench 6.3 / Multi-Core
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	18504 Points +67%
Minisforum G7 PT AMD Ryzen 9 7945HX	16765 Points +51%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	15962 Points +44%
Geekom AE7 AMD Ryzen 9 7940HS	13369 Points +21%
Beelink SER8 AMD Ryzen 7 8845HS	13362 Points +21%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	13232 Points +19%
GMK NucBox K6 AMD Ryzen 7 7840HS	13184 Points +19%
Geekom AX8 Pro AMD Ryzen 9 8945H	13162 Points +19%
Acemagic F2A Intel Core Ultra 7 155H	12385 Points +12%
Asus NUC 14 Pro Intel Core Ultra 5 125H	11749 Points +6%
Geekom XT13 Pro Intel Core i9-13900H	11541 Points +4%
Átlagos Intel Core Ultra 5 125H (11087 - 11749, n=6)	11404 Points +3%
GMK NucBox K9 Intel Core Ultra 5 125H	11087 Points
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	10644 Points -4%
GMK NucBox M6 AMD Ryzen 5 6600H	9240 Points -17%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	9225 Points -17%
Newsmay AC8F-POE Intel Processor N100	2780 Points -75%

Geekbench 6.3 / Single-Core
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	3022 Points +32%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	2942 Points +28%
Minisforum G7 PT AMD Ryzen 9 7945HX	2880 Points +25%
Beelink SER8 AMD Ryzen 7 8845HS	2694 Points +17%
Geekom AE7 AMD Ryzen 9 7940HS	2693 Points +17%
GMK NucBox K6 AMD Ryzen 7 7840HS	2687 Points +17%
Geekom AX8 Pro AMD Ryzen 9 8945H	2651 Points +15%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	2583 Points +12%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	2546 Points +11%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	2485 Points +8%
Geekom XT13 Pro Intel Core i9-13900H	2415 Points +5%
Acemagic F2A Intel Core Ultra 7 155H	2410 Points +5%
Asus NUC 14 Pro Intel Core Ultra 5 125H	2316 Points +1%
GMK NucBox K9 Intel Core Ultra 5 125H	2297 Points
Átlagos Intel Core Ultra 5 125H (2199 - 2316, n=6)	2277 Points -1%
GMK NucBox M6 AMD Ryzen 5 6600H	2042 Points -11%
Newsmay AC8F-POE Intel Processor N100	1209 Points -47%

Geekbench 5.5 / Multi-Core
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	19971 Points +99%
Minisforum G7 PT AMD Ryzen 9 7945HX	19836 Points +98%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	17395 Points +74%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	13339 Points +33%
Acemagic F2A Intel Core Ultra 7 155H	12662 Points +26%
Geekom AE7 AMD Ryzen 9 7940HS	12228 Points +22%
Beelink SER8 AMD Ryzen 7 8845HS	12196 Points +22%
Geekom AX8 Pro AMD Ryzen 9 8945H	11980 Points +20%
GMK NucBox K6 AMD Ryzen 7 7840HS	11769 Points +17%
Geekom XT13 Pro Intel Core i9-13900H	11536 Points +15%
Asus NUC 14 Pro Intel Core Ultra 5 125H	10856 Points +8%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	10543 Points +5%
Átlagos Intel Core Ultra 5 125H (9696 - 10856, n=6)	10408 Points +4%
GMK NucBox K9 Intel Core Ultra 5 125H	10025 Points
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	9122 Points -9%
GMK NucBox M6 AMD Ryzen 5 6600H	8195 Points -18%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	7804 Points -22%
Newsmay AC8F-POE Intel Processor N100	2332 Points -77%

Geekbench 5.5 / Single-Core
Minisforum G7 PT AMD Ryzen 9 7945HX	2147 Points +29%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	2140 Points +28%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	2092 Points +25%
Beelink SER8 AMD Ryzen 7 8845HS	2004 Points +20%
Geekom AX8 Pro AMD Ryzen 9 8945H	1994 Points +20%
GMK NucBox K6 AMD Ryzen 7 7840HS	1986 Points +19%
Geekom AE7 AMD Ryzen 9 7940HS	1986 Points +19%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1898 Points +14%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	1858 Points +11%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	1838 Points +10%
Acemagic F2A Intel Core Ultra 7 155H	1746 Points +5%
Geekom XT13 Pro Intel Core i9-13900H	1708 Points +2%
Asus NUC 14 Pro Intel Core Ultra 5 125H	1685 Points +1%
GMK NucBox K9 Intel Core Ultra 5 125H	1668 Points
Átlagos Intel Core Ultra 5 125H (1593 - 1699, n=6)	1660 Points 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1633 Points -2%
GMK NucBox M6 AMD Ryzen 5 6600H	1513 Points -9%
Newsmay AC8F-POE Intel Processor N100	975 Points -42%

HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum G7 PT AMD Ryzen 9 7945HX	34.6 fps +151%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	32.3 fps +134%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	31.6 fps +129%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	21.8 fps +58%
Beelink SER8 AMD Ryzen 7 8845HS	21.1 fps +53%
Geekom AE7 AMD Ryzen 9 7940HS	20.9 fps +51%
Geekom AX8 Pro AMD Ryzen 9 8945H	20.6 fps +49%
GMK NucBox K6 AMD Ryzen 7 7840HS	20.5 fps +49%
Acemagic F2A Intel Core Ultra 7 155H	19.6 fps +42%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	16.4 fps +19%
Asus NUC 14 Pro Intel Core Ultra 5 125H	15.7 fps +14%
Geekom XT13 Pro Intel Core i9-13900H	14.7 fps +7%
GMK NucBox M6 AMD Ryzen 5 6600H	13.9 fps +1%
GMK NucBox K9 Intel Core Ultra 5 125H	13.8 fps
Átlagos Intel Core Ultra 5 125H (9.7 - 16.7, n=6)	13.4 fps -3%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	12.7 fps -8%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	9.43 fps -32%
Newsmay AC8F-POE Intel Processor N100	2.12 fps -85%

LibreOffice / 20 Documents To PDF
Newsmay AC8F-POE Intel Processor N100	100.2 s * -128%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	56.2 s * -28%
Asus NUC 14 Pro Intel Core Ultra 5 125H	55.7 s * -27%
Geekom AE7 AMD Ryzen 9 7940HS	53.7 s * -22%
Átlagos Intel Core Ultra 5 125H (42.7 - 70.9, n=6)	53.4 s * -21%
GMK NucBox M6 AMD Ryzen 5 6600H	52.4 s * -19%
Geekom AX8 Pro AMD Ryzen 9 8945H	49.8 s * -13%
Minisforum G7 PT AMD Ryzen 9 7945HX	49.7 s * -13%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	48.7 s * -11%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	48.4 s * -10%
Geekom XT13 Pro Intel Core i9-13900H	46.8 s * -6%
Beelink SER8 AMD Ryzen 7 8845HS	46.1 s * -5%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	46 s * -5%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	44.7 s * -2%
Acemagic F2A Intel Core Ultra 7 155H	44.5 s * -1%
GMK NucBox K6 AMD Ryzen 7 7840HS	44.1 s * -0%
GMK NucBox K9 Intel Core Ultra 5 125H	44 s *
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	38.2 s * +13%

R Benchmark 2.5 / Overall mean
Newsmay AC8F-POE Intel Processor N100	0.975 sec * -99%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	0.512 sec * -5%
Átlagos Intel Core Ultra 5 125H (0.4898 - 0.53, n=6)	0.506 sec * -3%
GMK NucBox M6 AMD Ryzen 5 6600H	0.4995 sec * -2%
Asus NUC 14 Pro Intel Core Ultra 5 125H	0.4982 sec * -2%
GMK NucBox K9 Intel Core Ultra 5 125H	0.4898 sec *
Geekom XT13 Pro Intel Core i9-13900H	0.4693 sec * +4%
Acemagic F2A Intel Core Ultra 7 155H	0.4652 sec * +5%
Geekom AX8 Pro AMD Ryzen 9 8945H	0.4576 sec * +7%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	0.4489 sec * +8%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	0.4457 sec * +9%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	0.4356 sec * +11%
Geekom AE7 AMD Ryzen 9 7940HS	0.4346 sec * +11%
GMK NucBox K6 AMD Ryzen 7 7840HS	0.4343 sec * +11%
Beelink SER8 AMD Ryzen 7 8845HS	0.4336 sec * +11%
Minisforum G7 PT AMD Ryzen 9 7945HX	0.406 sec * +17%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	0.3803 sec * +22%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	0.3788 sec * +23%

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... a kisebb jobb

Performance Rating
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	98.4 pt
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	97.4 pt
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	95.2 pt
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	60.5 pt
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	59.7 pt
Átlagos Intel Core Ultra 5 125H	56.3 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	38.9 pt

AIDA64 / FP32 Ray-Trace
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	26305 KRay/s +145%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	26022 KRay/s +142%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	25360 KRay/s +136%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	12274 KRay/s +14%
Átlagos Intel Core Ultra 5 125H (8430 - 13639, n=6)	10907 KRay/s +1%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	10755 KRay/s
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	6784 KRay/s -37%

AIDA64 / FPU Julia
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	111508 Points +91%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	110752 Points +90%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	107805 Points +85%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	76931 Points +32%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	58422 Points
Átlagos Intel Core Ultra 5 125H (43652 - 70880, n=6)	57140 Points -2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	34444 Points -41%

AIDA64 / CPU SHA3
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	4933 MB/s +69%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	4854 MB/s +66%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	4763 MB/s +63%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	2922 MB/s
Átlagos Intel Core Ultra 5 125H (2047 - 3404, n=6)	2752 MB/s -6%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	2650 MB/s -9%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	1884 MB/s -36%

AIDA64 / CPU Queen
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	117809 Points +50%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	115546 Points +47%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	111803 Points +42%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	82119 Points +4%
Átlagos Intel Core Ultra 5 125H (77892 - 79986, n=6)	78805 Points 0%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	78797 Points
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	59756 Points -24%

AIDA64 / FPU SinJulia
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	15420 Points +98%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	14915 Points +92%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	14721 Points +89%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	9739 Points +25%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	7780 Points
Átlagos Intel Core Ultra 5 125H (6588 - 7851, n=6)	7398 Points -5%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	4644 Points -40%

AIDA64 / FPU Mandel
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	59522 Points +113%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	59072 Points +111%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	57534 Points +106%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	42406 Points +52%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	27972 Points
Átlagos Intel Core Ultra 5 125H (21210 - 35321, n=6)	27928 Points 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	16394 Points -41%

AIDA64 / CPU AES
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	172642 MB/s +59%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	166944 MB/s +54%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	164041 MB/s +51%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	108402 MB/s
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	104138 MB/s -4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	67140 MB/s -38%
Átlagos Intel Core Ultra 5 125H (45524 - 108402, n=6)	64990 MB/s -40%

AIDA64 / CPU ZLib
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	1073 MB/s +27%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	1051 MB/s +25%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	1031 MB/s +22%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	844 MB/s
Átlagos Intel Core Ultra 5 125H (594 - 994, n=6)	806 MB/s -5%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	660 MB/s -22%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	633 MB/s -25%

AIDA64 / FP64 Ray-Trace
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	14041 KRay/s +148%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	13897 KRay/s +146%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	13642 KRay/s +141%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	6588 KRay/s +16%
Átlagos Intel Core Ultra 5 125H (4345 - 7221, n=6)	5677 KRay/s 0%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	5657 KRay/s
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	3532 KRay/s -38%

AIDA64 / CPU PhotoWorxx
Átlagos Intel Core Ultra 5 125H (45724 - 49844, n=6)	47064 MPixel/s +2%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	46296 MPixel/s
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	41516 MPixel/s -10%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	40760 MPixel/s -12%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	40489 MPixel/s -13%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	29621 MPixel/s -36%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	29523 MPixel/s -36%

Stressz teszt

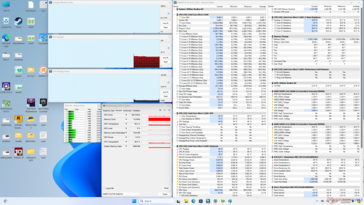

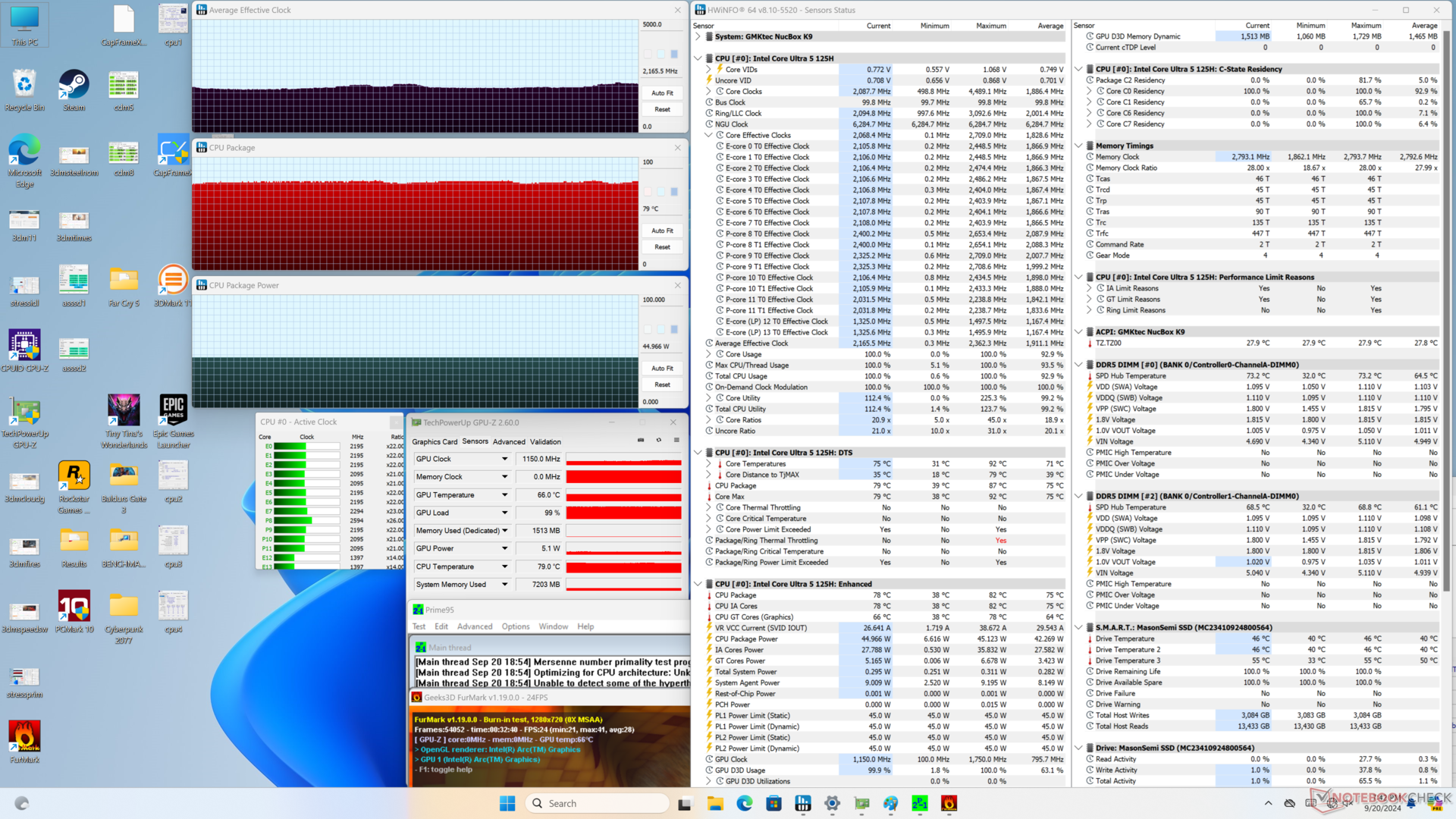

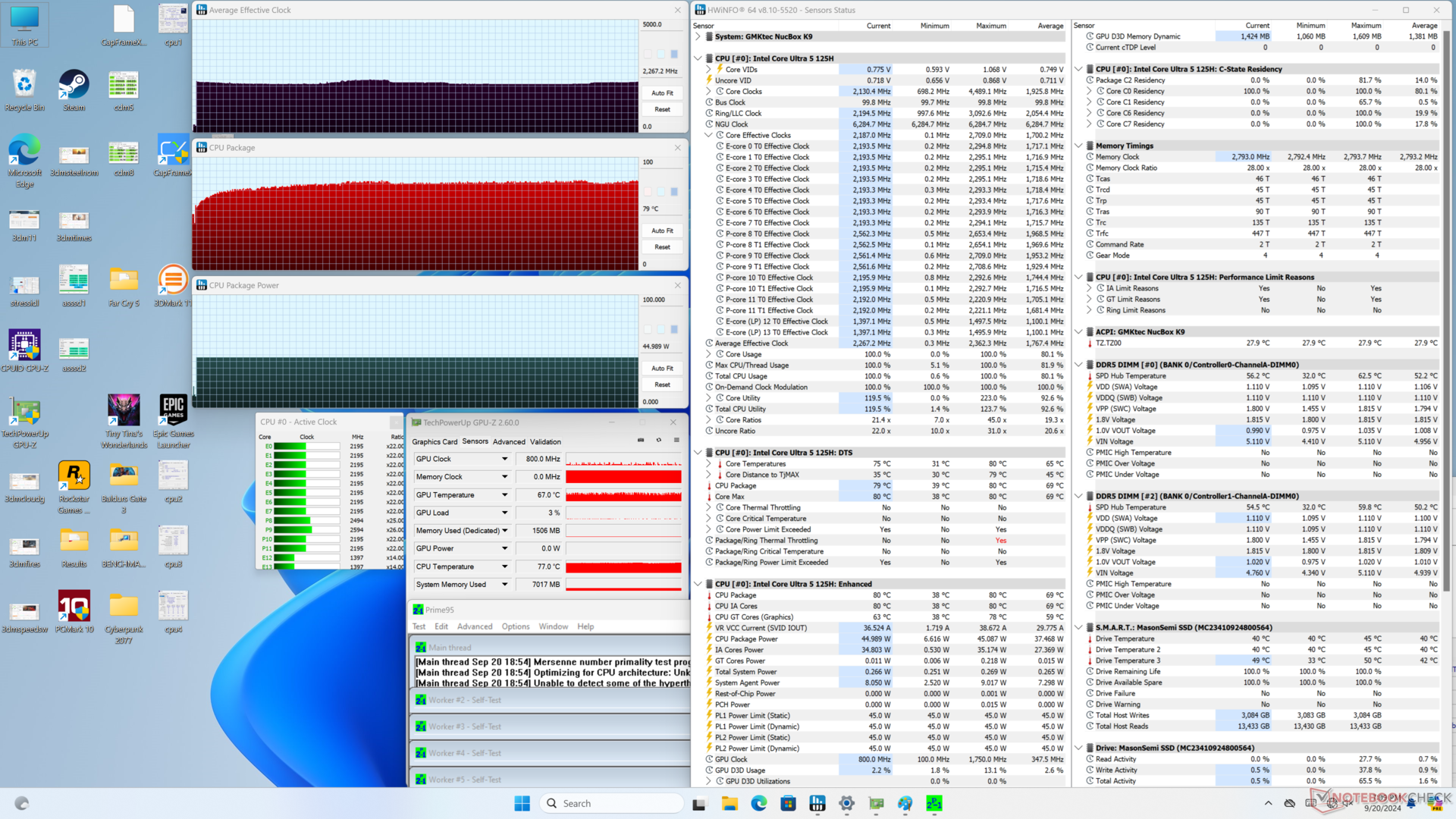

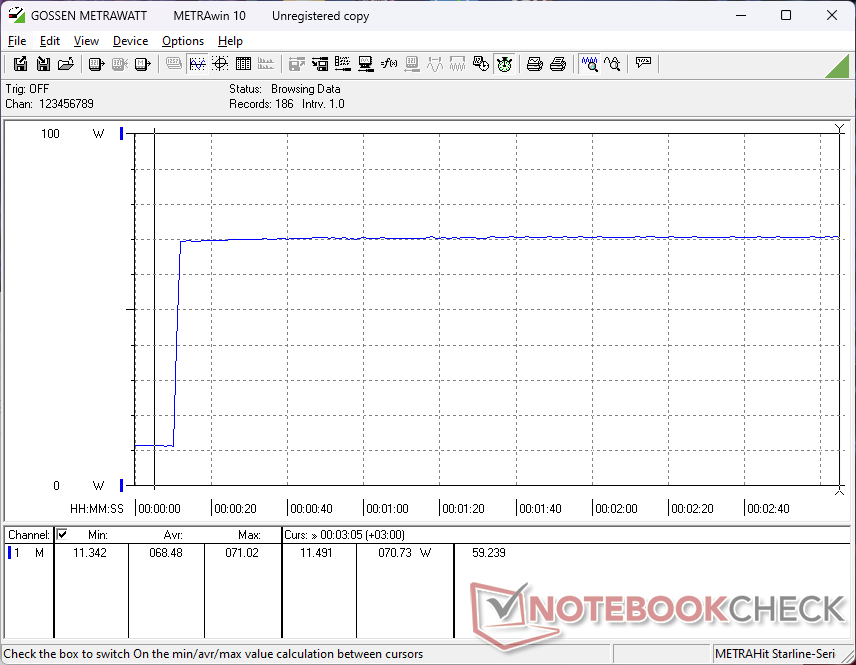

A Prime95 stressz indításakor a CPU 2,3 GHz-re és 45 W-ra gyorsult, majd ezeket az értékeket a stresszteszt teljes időtartama alatt megtartotta. A maghőmérséklet 80 C-on állt meg, ami valamivel hűvösebb, mint amit a gyorsabb AMD-üzemű NucBox K6-on mértünk.

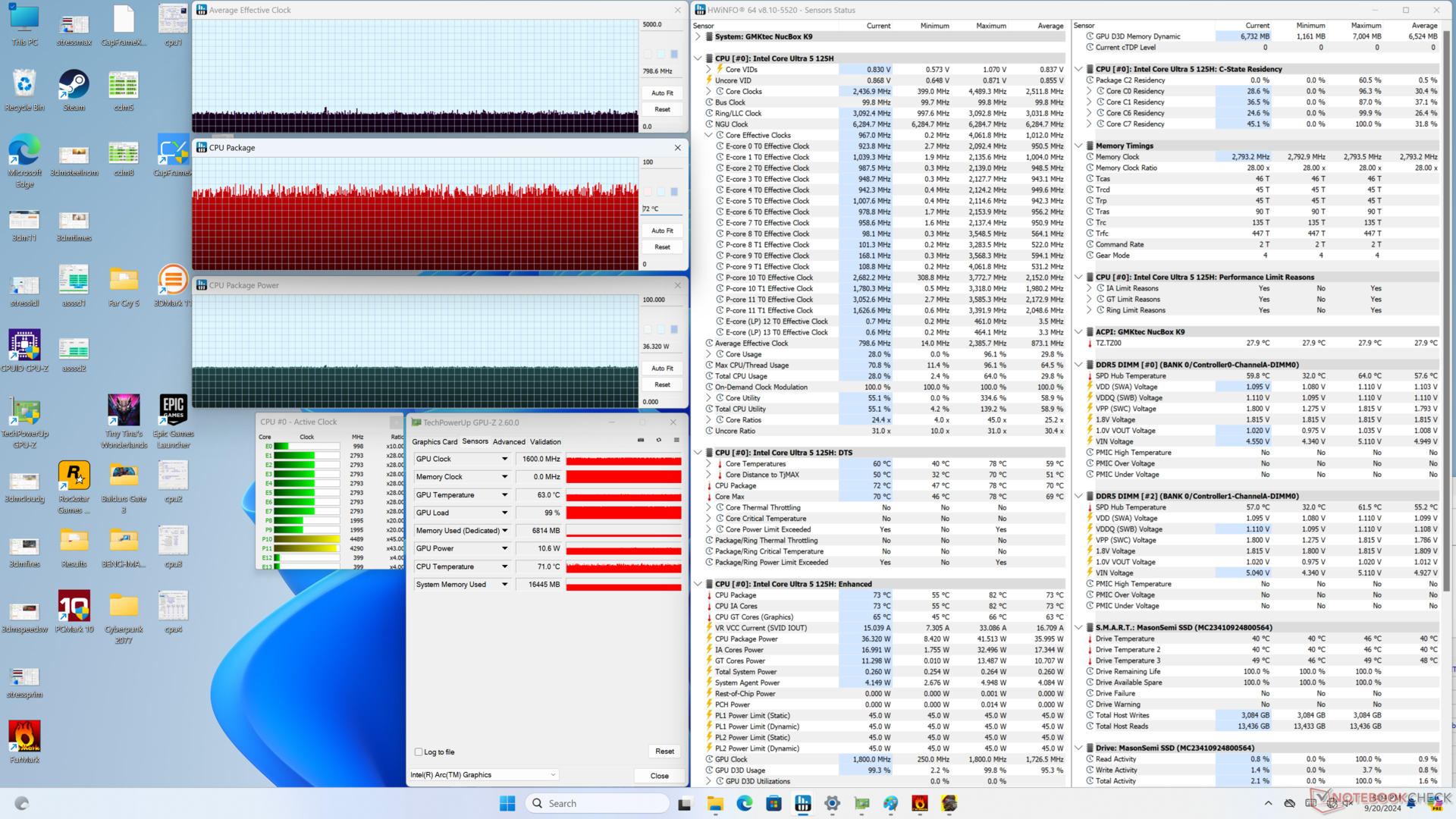

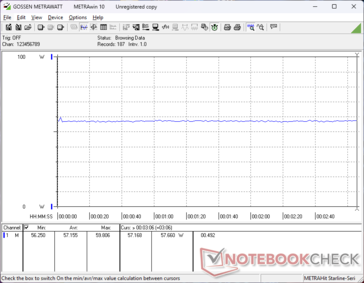

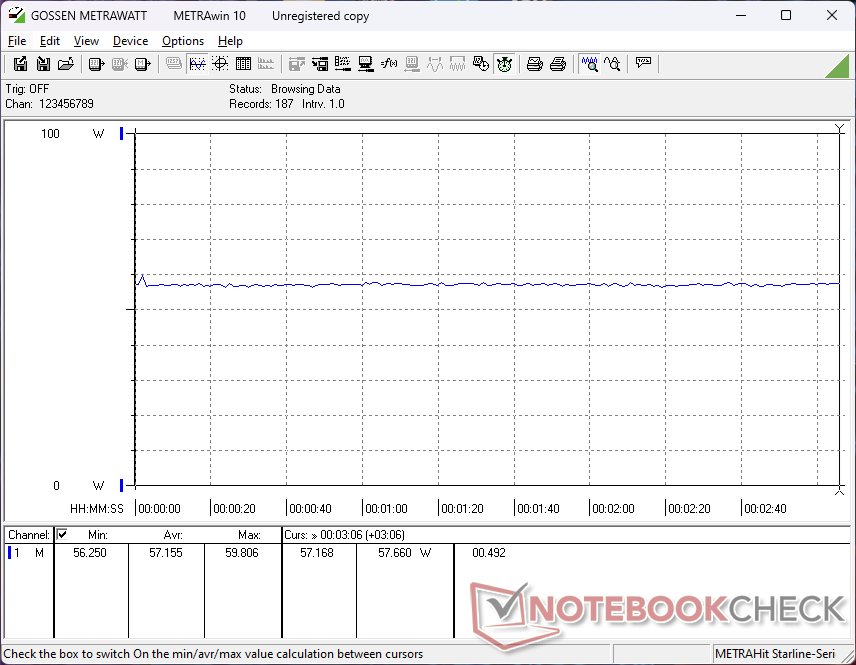

Amikor a Cyberpunk 2077-et futtattuk a játékterhelés reprezentálására, a maghőmérséklet 72 C-on stabilizálódott, ami hasonló a NucBox K6-hoz, annak ellenére, hogy a NucBox K9 lassabban futtatja a játékokat, amint azt a játékteljesítményre vonatkozó alábbi szakaszunk is mutatja.

Rendszer teljesítménye

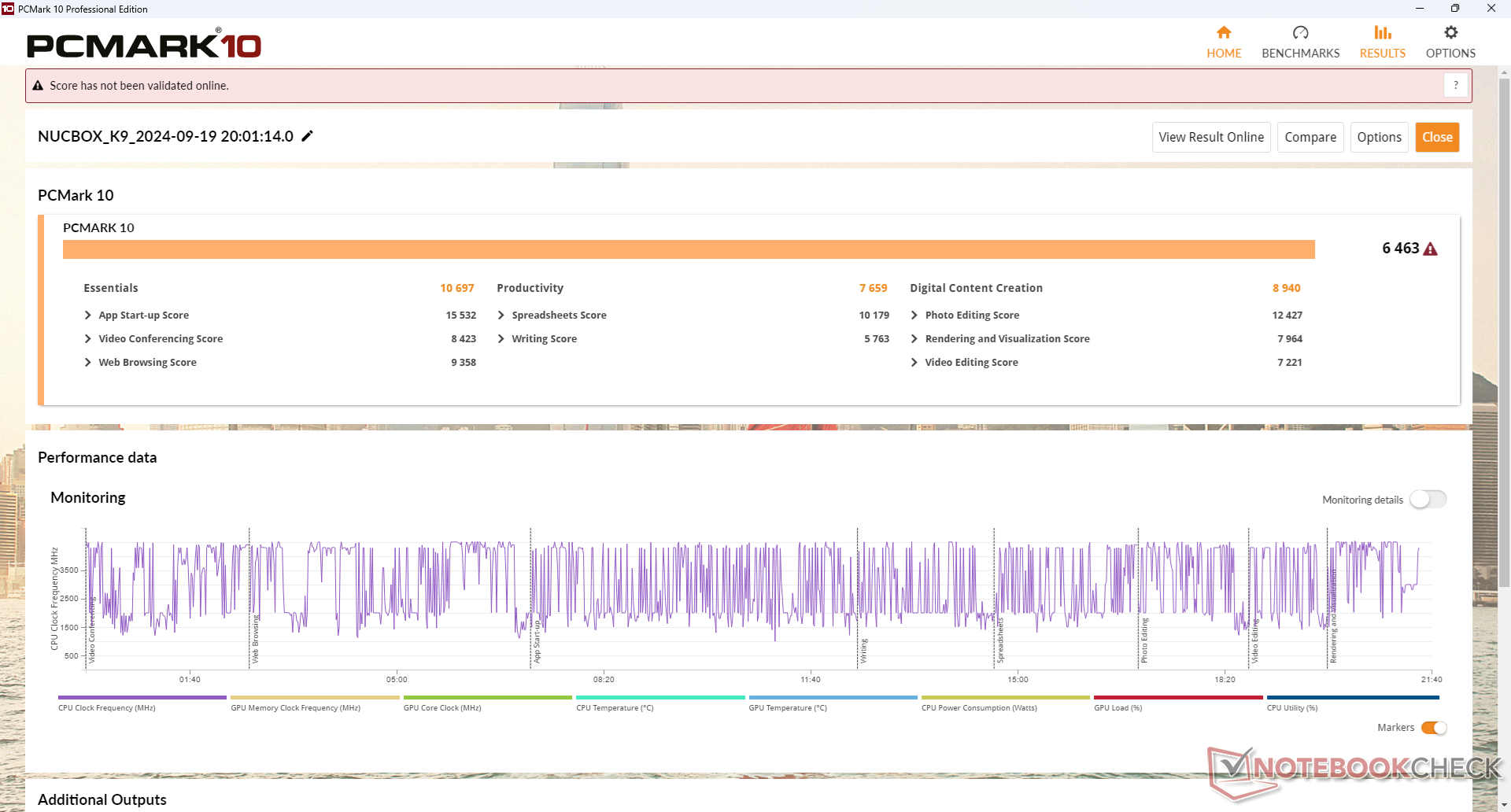

A PCMark 10 pontszámok általában alacsonyabbak, mint a NucBox K6 esetében, különösen a termékenységi altesztben, ahol a többmagos teljesítmény előnyben részesül

PCMark 10 / Score
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	7641 Points +18%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	7529 Points +16%
BOSGAME M1 Radeon 780M, R7 7840HS	7198 Points +11%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	6463 Points
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (6194 - 6463, n=6)	6320 Points -2%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	6220 Points -4%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5543 Points -14%

PCMark 10 / Essentials
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	11570 Points +8%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	11214 Points +5%
BOSGAME M1 Radeon 780M, R7 7840HS	11211 Points +5%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	10845 Points +1%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	10697 Points
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	10360 Points -3%
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (9427 - 10697, n=6)	10178 Points -5%

PCMark 10 / Productivity
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10591 Points +38%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	10457 Points +37%
BOSGAME M1 Radeon 780M, R7 7840HS	9075 Points +18%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	9059 Points +18%
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (7042 - 8000, n=6)	7691 Points 0%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	7659 Points
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	7354 Points -4%

PCMark 10 / Digital Content Creation
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	10009 Points +12%
BOSGAME M1 Radeon 780M, R7 7840HS	9948 Points +11%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	9752 Points +9%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	8940 Points
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (8198 - 9506, n=6)	8775 Points -2%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	6959 Points -22%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5798 Points -35%

CrossMark / Overall
BOSGAME M1 Radeon 780M, R7 7840HS	1891 Points +16%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	1875 Points +15%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1873 Points +15%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1644 Points +1%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1633 Points
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (1522 - 1633, n=5)	1574 Points -4%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1521 Points -7%

CrossMark / Productivity
BOSGAME M1 Radeon 780M, R7 7840HS	1823 Points +14%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1816 Points +14%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	1802 Points +13%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1676 Points +5%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1594 Points
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1517 Points -5%
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (1432 - 1594, n=5)	1510 Points -5%

CrossMark / Creativity
BOSGAME M1 Radeon 780M, R7 7840HS	2013 Points +17%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	2009 Points +17%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1994 Points +16%
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (1683 - 1765, n=5)	1729 Points +1%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1714 Points
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1567 Points -9%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1546 Points -10%

CrossMark / Responsiveness
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1867 Points +23%
BOSGAME M1 Radeon 780M, R7 7840HS	1749 Points +15%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	1718 Points +13%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1706 Points +12%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1520 Points
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1407 Points -7%
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (1171 - 1520, n=5)	1350 Points -11%

WebXPRT 3 / Overall
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	334 Points +27%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	328 Points +25%
BOSGAME M1 Radeon 780M, R7 7840HS	319 Points +22%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	288 Points +10%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	262 Points
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (245 - 263, n=6)	255 Points -3%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	244 Points -7%

WebXPRT 4 / Overall
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	266 Points +15%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	266 Points +15%
BOSGAME M1 Radeon 780M, R7 7840HS	258 Points +12%
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (227 - 240, n=5)	233 Points +1%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	231 Points 0%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	231 Points
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	193.4 Points -16%

Mozilla Kraken 1.1 / Total
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	604 ms * -7%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	586 ms * -4%
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (560 - 595, n=6)	575 ms * -2%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	566 ms *
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	534 ms * +6%
BOSGAME M1 Radeon 780M, R7 7840HS	526 ms * +7%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	501 ms * +11%

* ... a kisebb jobb

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Átlagos Intel Core Ultra 5 125H (67482 - 87473, n=6)	77947 MB/s +16%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	69508 MB/s +3%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	69281 MB/s +3%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	68283 MB/s +1%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	67482 MB/s
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	50886 MB/s -25%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	43215 MB/s -36%

AIDA64 / Memory Read
Átlagos Intel Core Ultra 5 125H (70520 - 76803, n=6)	74300 MB/s +5%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	70520 MB/s
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	61976 MB/s -12%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	61765 MB/s -12%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	61708 MB/s -12%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	51684 MB/s -27%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46616 MB/s -34%

AIDA64 / Memory Write
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	86719 MB/s +22%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	86528 MB/s +21%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	85464 MB/s +20%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	71218 MB/s
Átlagos Intel Core Ultra 5 125H (63162 - 72443, n=6)	70040 MB/s -2%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	55160 MB/s -23%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46475 MB/s -35%

AIDA64 / Memory Latency
Átlagos Intel Core Ultra 5 125H (127.3 - 184.8, n=6)	145.5 ns * -4%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	140.2 ns *
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	91.6 ns * +35%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	89.8 ns * +36%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	88.9 ns * +37%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	88.1 ns * +37%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	85.8 ns * +39%

* ... a kisebb jobb

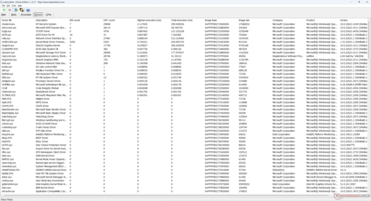

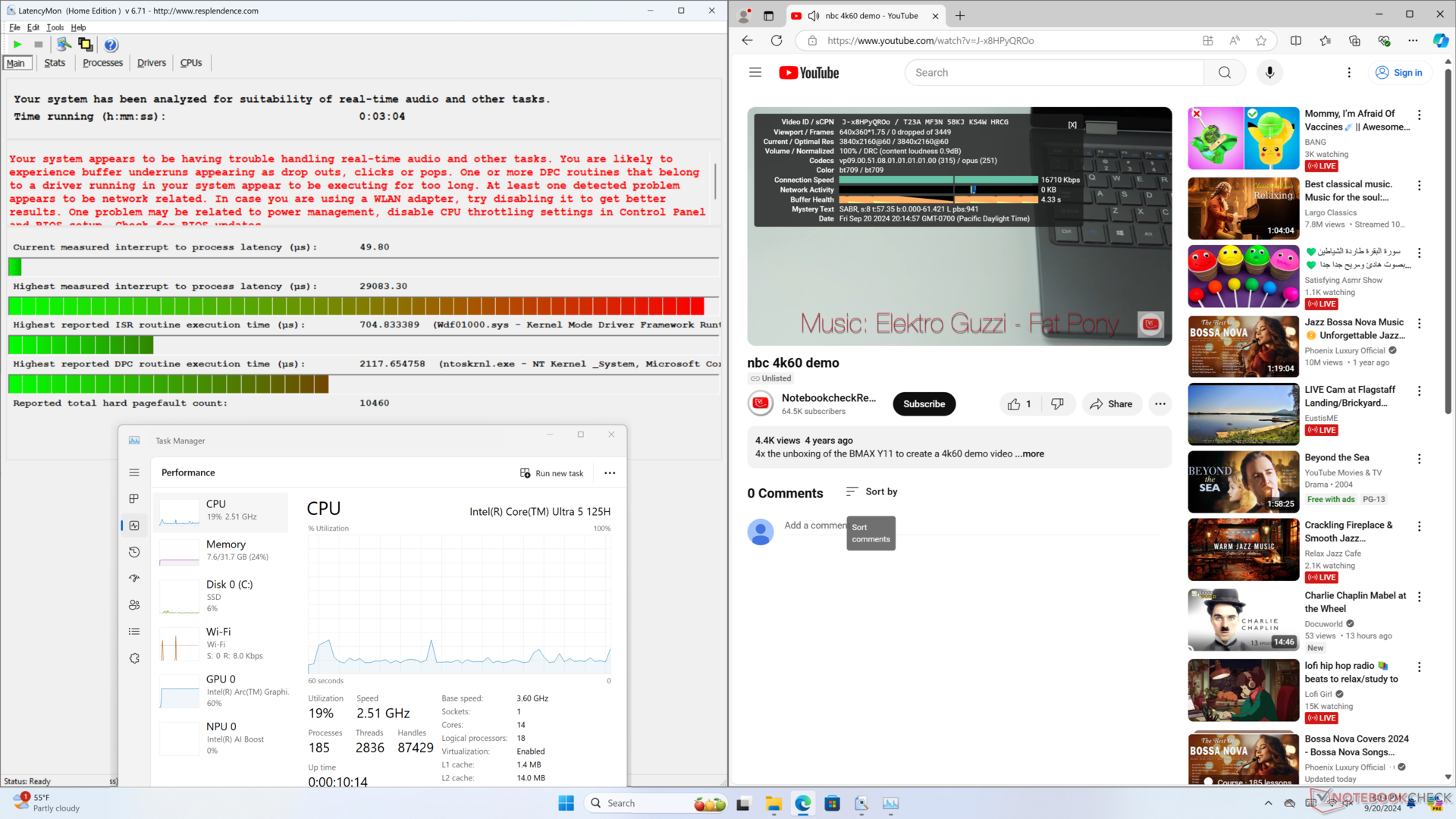

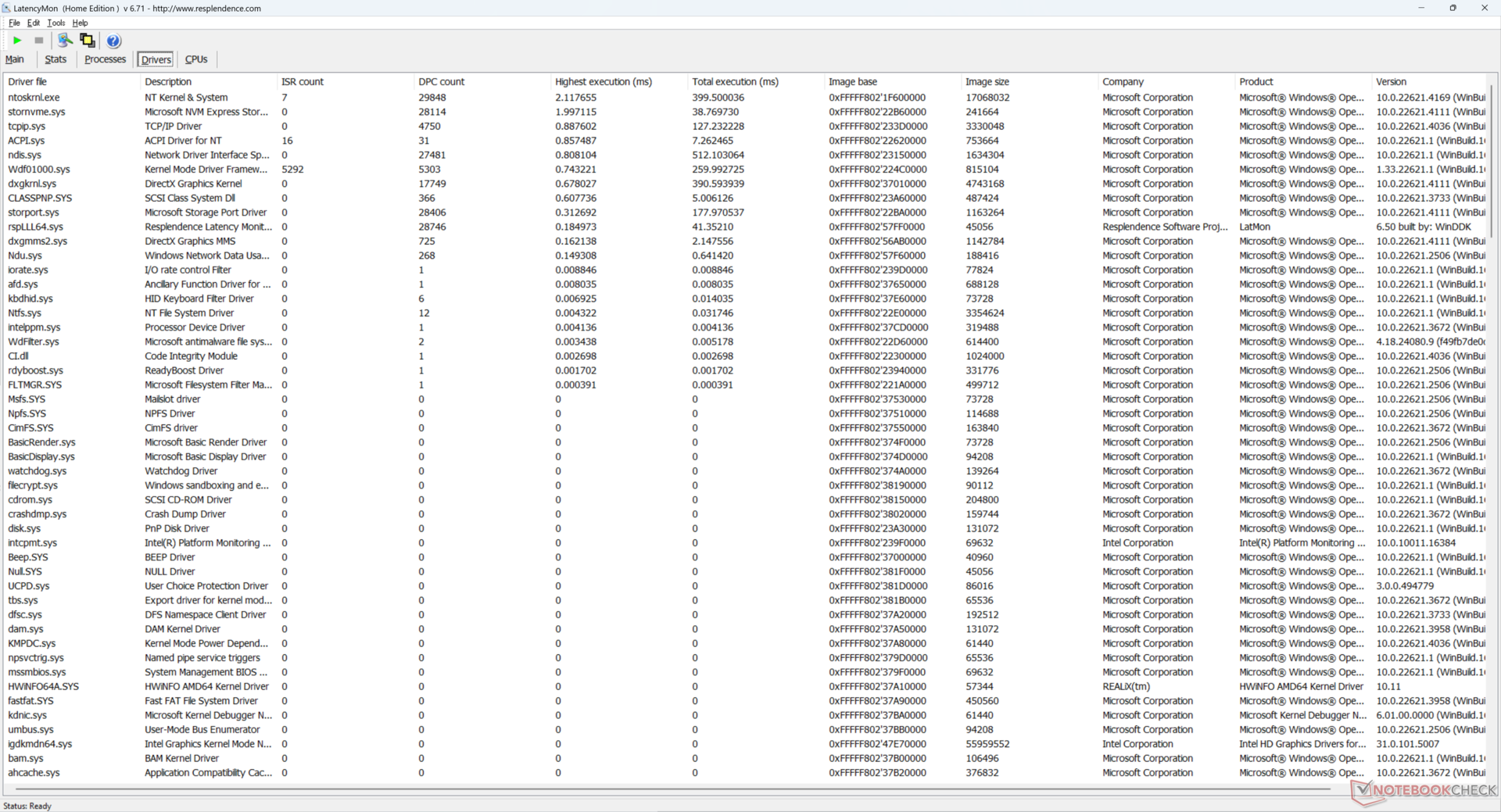

DPC késleltetés

A LatencyMon az ntoskrnl.exe programmal kapcsolatos DPC-problémákat tár fel a honlapunk több lapjának megnyitásakor. a 4K videólejátszás 60 FPS mellett egyébként tökéletes, és nem rögzítettek kiesett képkockákat.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	29083.3 μs *
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	15043.9 μs * +48%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10561.5 μs * +64%
BOSGAME M1 Radeon 780M, R7 7840HS	1179.5 μs * +96%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	1071.2 μs * +96%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	830.3 μs * +97%

* ... a kisebb jobb

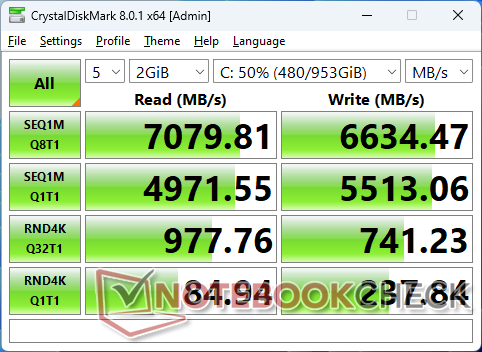

Tárolóeszközök

A GMK ugyanazt az 1 TB-os MasonSemi MC7000 PCIe4 x4 NVMe SSD-t használja a NucBox K6 és K9 modellekhez. A teljesítmény gyors és a kevésbé ismert márkanév ellenére a csúcskategóriás PC-kben gyakran megtalálható Samsung PM9A1 sorozathoz hasonlítható. A DiskSpd hurokban történő futtatása során nem figyelhetünk meg említésre méltó teljesítménycsökkenést.

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

MasonSemi 1TB MC7000

CDM 5/6 Read Seq Q32T1: 7068 MB/s

CDM 5/6 Write Seq Q32T1: 6625 MB/s

CDM 5/6 Read 4K Q32T1: 972.6 MB/s

CDM 5/6 Write 4K Q32T1: 755.4 MB/s

CDM 5 Read Seq: 4954 MB/s

CDM 5 Write Seq: 5591 MB/s

CDM 5/6 Read 4K: 86.48 MB/s

CDM 5/6 Write 4K: 230.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
GMK NucBox K6 MasonSemi 1TB MC7000	86.2 pt
GMK NucBox K9 MasonSemi 1TB MC7000	83.6 pt
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	64.2 pt
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	62.4 pt
BOSGAME M1	56.8 pt
GMK NucBox M6 AirDisk APF 10-512G	38.8 pt

DiskSpd
seq read
GMK NucBox K9 MasonSemi 1TB MC7000	3783 (3597.81^min - 3782.84^max) MB/s
GMK NucBox K6 MasonSemi 1TB MC7000	3703 (3243.89^min - 3702.94^max) MB/s -2%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	3106 (3062.47^min - 3106.43^max) MB/s -18%
BOSGAME M1	2533 (2518.88^min - 2532.52^max) MB/s -33%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2512 (2493.51^min - 2511.76^max) MB/s -34%
GMK NucBox M6 AirDisk APF 10-512G	2113 (2099.24^min - 2112.85^max) MB/s -44%
seq write
GMK NucBox K6 MasonSemi 1TB MC7000	5595 (1443.73^min - 5595.13^max) MB/s +1%
GMK NucBox K9 MasonSemi 1TB MC7000	5556 (1352.45^min - 5556.19^max) MB/s
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	4604 (4532.99^min - 4603.88^max) MB/s -17%
BOSGAME M1	3176 (2921.36^min - 3176.08^max) MB/s -43%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2848 (2821.72^min - 2847.93^max) MB/s -49%
GMK NucBox M6 AirDisk APF 10-512G	1852 (1762.49^min - 1851.99^max) MB/s -67%
seq q8 t1 read
GMK NucBox K6 MasonSemi 1TB MC7000	7069 (6459.52^min - 7068.99^max) MB/s 0%
GMK NucBox K9 MasonSemi 1TB MC7000	7066 (6607.49^min - 7066.35^max) MB/s
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	5195 (4594.02^min - 5195.39^max) MB/s -26%
BOSGAME M1	4109 (3651.18^min - 4108.53^max) MB/s -42%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3632 (3373.44^min - 3632.06^max) MB/s -49%
GMK NucBox M6 AirDisk APF 10-512G	2536 (2272.68^min - 2536.26^max) MB/s -64%
seq q8 t1 write
GMK NucBox K6 MasonSemi 1TB MC7000	6669 (1251.16^min - 6668.61^max) MB/s 0%
GMK NucBox K9 MasonSemi 1TB MC7000	6647 (1260.59^min - 6647.13^max) MB/s
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	4725 (4657.36^min - 4724.88^max) MB/s -29%
BOSGAME M1	3187 (3142.8^min - 3187.38^max) MB/s -52%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2841 (2828.64^min - 2841.01^max) MB/s -57%
GMK NucBox M6 AirDisk APF 10-512G	1842 (1840.35^min - 1842.35^max) MB/s -72%
4k q1 t1 read
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	79.7 (77.93^min - 79.74^max) MB/s 0%
GMK NucBox K9 MasonSemi 1TB MC7000	79.5 (78.92^min - 79.5^max) MB/s
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	79.3 (78.06^min - 79.29^max) MB/s 0%
GMK NucBox K6 MasonSemi 1TB MC7000	71 (70.41^min - 71.02^max) MB/s -11%
BOSGAME M1	64.4 (64.2^min - 64.35^max) MB/s -19%
GMK NucBox M6 AirDisk APF 10-512G	54.8 (52.56^min - 54.76^max) MB/s -31%
4k q1 t1 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	391 (374.32^min - 390.86^max) MB/s +91%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	289 (283.17^min - 289.07^max) MB/s +41%
BOSGAME M1	261 (258.95^min - 260.75^max) MB/s +27%
GMK NucBox K6 MasonSemi 1TB MC7000	239 (237.67^min - 239.17^max) MB/s +17%
GMK NucBox M6 AirDisk APF 10-512G	228 (215.43^min - 228.32^max) MB/s +11%
GMK NucBox K9 MasonSemi 1TB MC7000	205 (173.87^min - 205.2^max) MB/s
4k q32 t16 read
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	3139 (3067^min - 3138.94^max) MB/s +40%
GMK NucBox K6 MasonSemi 1TB MC7000	2463 (2040.37^min - 2463.15^max) MB/s +10%
GMK NucBox K9 MasonSemi 1TB MC7000	2243 (1941.91^min - 2243.48^max) MB/s
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1942 (1940.61^min - 1941.63^max) MB/s -13%
GMK NucBox M6 AirDisk APF 10-512G	968 (965.06^min - 967.94^max) MB/s -57%
BOSGAME M1	791 (751.42^min - 791.35^max) MB/s -65%
4k q32 t16 write
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	4288 (4275.2^min - 4287.55^max) MB/s +33%
GMK NucBox K6 MasonSemi 1TB MC7000	3983 (3232.63^min - 3982.67^max) MB/s +23%
GMK NucBox K9 MasonSemi 1TB MC7000	3232 (3002.64^min - 3232.41^max) MB/s
BOSGAME M1	3112 (3068.44^min - 3111.56^max) MB/s -4%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2219 (2197.25^min - 2218.83^max) MB/s -31%
GMK NucBox M6 AirDisk APF 10-512G	795 (753.98^min - 794.81^max) MB/s -75%

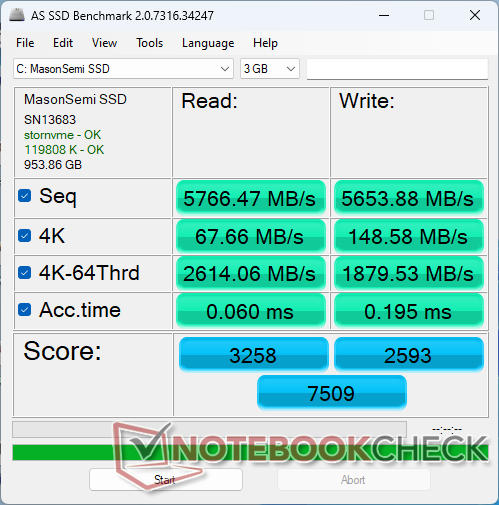

AS SSD
Score Total
GMK NucBox K6 MasonSemi 1TB MC7000	7918 Points +5%
GMK NucBox K9 MasonSemi 1TB MC7000	7509 Points
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	4619 Points -38%
BOSGAME M1	4263 Points -43%
GMK NucBox M6 AirDisk APF 10-512G	2956 Points -61%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	2646 Points -65%
Score Read
GMK NucBox K6 MasonSemi 1TB MC7000	3258 Points 0%
GMK NucBox K9 MasonSemi 1TB MC7000	3258 Points
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1633 Points -50%
GMK NucBox M6 AirDisk APF 10-512G	1170 Points -64%
BOSGAME M1	1146 Points -65%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	1108 Points -66%
Score Write
GMK NucBox K6 MasonSemi 1TB MC7000	3000 Points +16%
GMK NucBox K9 MasonSemi 1TB MC7000	2593 Points
BOSGAME M1	2547 Points -2%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2278 Points -12%
GMK NucBox M6 AirDisk APF 10-512G	1205 Points -54%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	1057 Points -59%
Seq Read
GMK NucBox K6 MasonSemi 1TB MC7000	5825.09 MB/s +1%
GMK NucBox K9 MasonSemi 1TB MC7000	5766.47 MB/s
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	3913.46 MB/s -32%
BOSGAME M1	3438.69 MB/s -40%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3206.84 MB/s -44%
GMK NucBox M6 AirDisk APF 10-512G	2261.02 MB/s -61%
Seq Write
GMK NucBox K6 MasonSemi 1TB MC7000	5783.3 MB/s +2%
GMK NucBox K9 MasonSemi 1TB MC7000	5653.88 MB/s
BOSGAME M1	2877.44 MB/s -49%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	1944.73 MB/s -66%
GMK NucBox M6 AirDisk APF 10-512G	1730.13 MB/s -69%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	463.76 MB/s -92%
4K Read
GMK NucBox K9 MasonSemi 1TB MC7000	67.66 MB/s
GMK NucBox K6 MasonSemi 1TB MC7000	65.5 MB/s -3%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	59.54 MB/s -12%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	51.6 MB/s -24%
BOSGAME M1	48.27 MB/s -29%
GMK NucBox M6 AirDisk APF 10-512G	47.34 MB/s -30%
4K Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	280.94 MB/s +89%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	219.02 MB/s +47%
GMK NucBox M6 AirDisk APF 10-512G	200.73 MB/s +35%
GMK NucBox K6 MasonSemi 1TB MC7000	190.06 MB/s +28%
GMK NucBox K9 MasonSemi 1TB MC7000	148.58 MB/s
BOSGAME M1	114.69 MB/s -23%
4K-64 Read
GMK NucBox K9 MasonSemi 1TB MC7000	2614.06 MB/s
GMK NucBox K6 MasonSemi 1TB MC7000	2610.4 MB/s 0%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1252.33 MB/s -52%
GMK NucBox M6 AirDisk APF 10-512G	896.13 MB/s -66%
BOSGAME M1	754.28 MB/s -71%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	664.76 MB/s -75%
4K-64 Write
GMK NucBox K6 MasonSemi 1TB MC7000	2231.47 MB/s +19%
BOSGAME M1	2144.62 MB/s +14%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1950.21 MB/s +4%
GMK NucBox K9 MasonSemi 1TB MC7000	1879.53 MB/s
GMK NucBox M6 AirDisk APF 10-512G	831.16 MB/s -56%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	643.31 MB/s -66%
Access Time Read
BOSGAME M1	0.088 ms * -47%
GMK NucBox K6 MasonSemi 1TB MC7000	0.079 ms * -32%
GMK NucBox M6 AirDisk APF 10-512G	0.077 ms * -28%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	0.077 ms * -28%
GMK NucBox K9 MasonSemi 1TB MC7000	0.06 ms *
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.049 ms * +18%
Access Time Write
GMK NucBox M6 AirDisk APF 10-512G	0.351 ms * -80%
GMK NucBox K6 MasonSemi 1TB MC7000	0.196 ms * -1%
GMK NucBox K9 MasonSemi 1TB MC7000	0.195 ms *
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	0.075 ms * +62%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.07 ms * +64%
BOSGAME M1	0.058 ms * +70%

* ... a kisebb jobb

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox K9 MasonSemi 1TB MC7000; diskspd 2.0.17 f: Ø7053 (6435.53-7074.85)

GMK NucBox K6 MasonSemi 1TB MC7000; diskspd 2.0.17 f: Ø7035 (6458.68-7055.24)

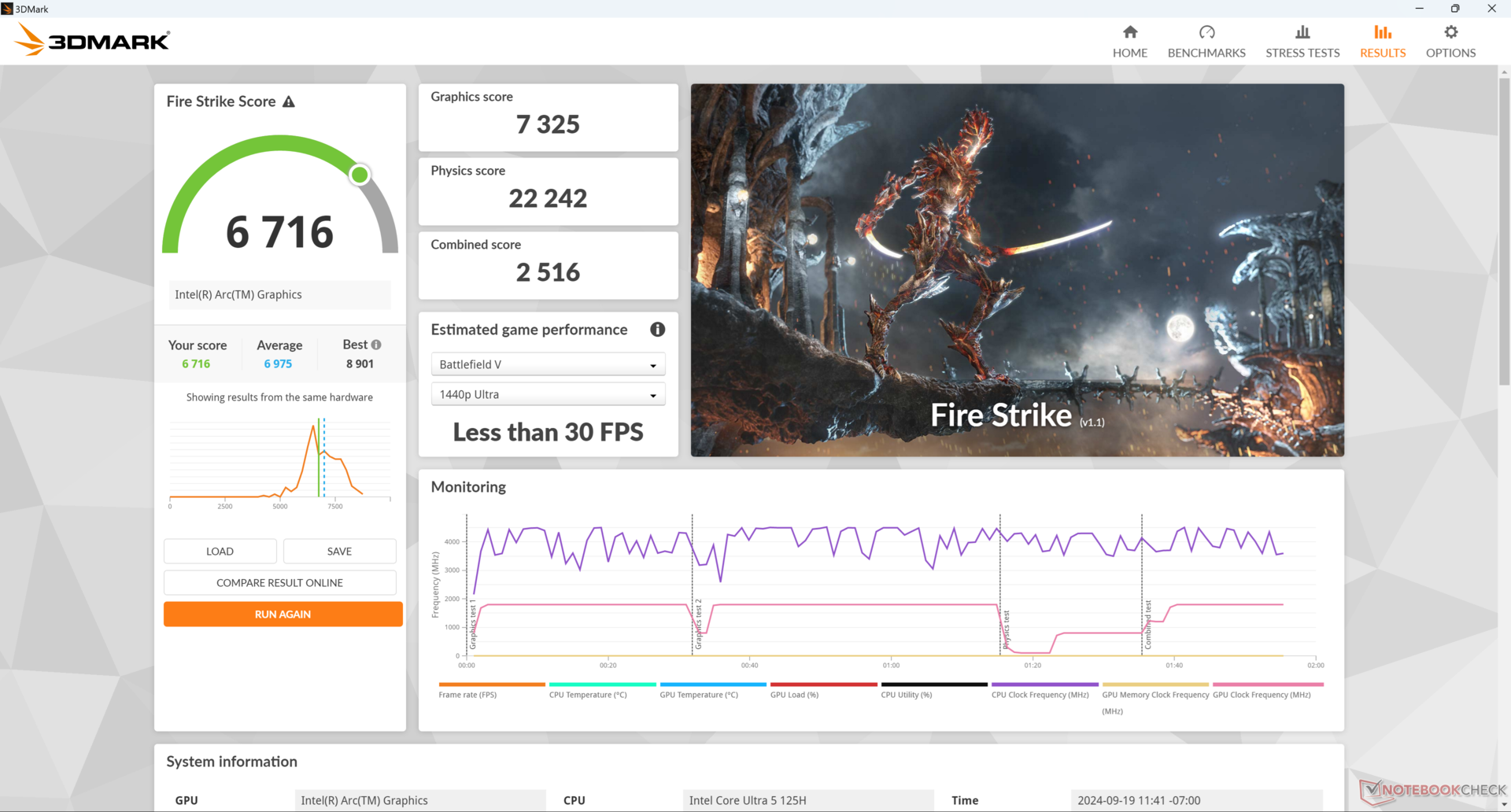

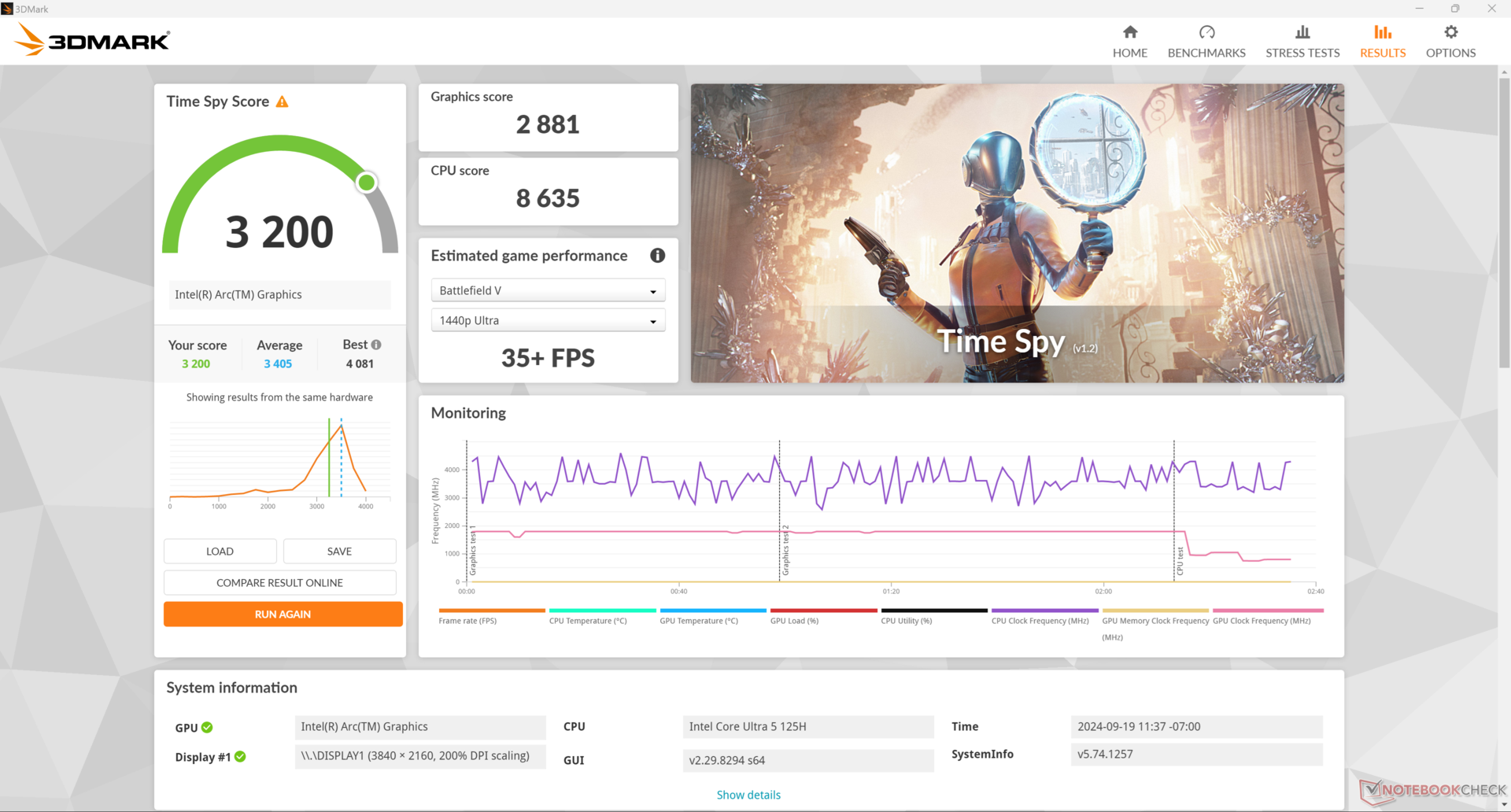

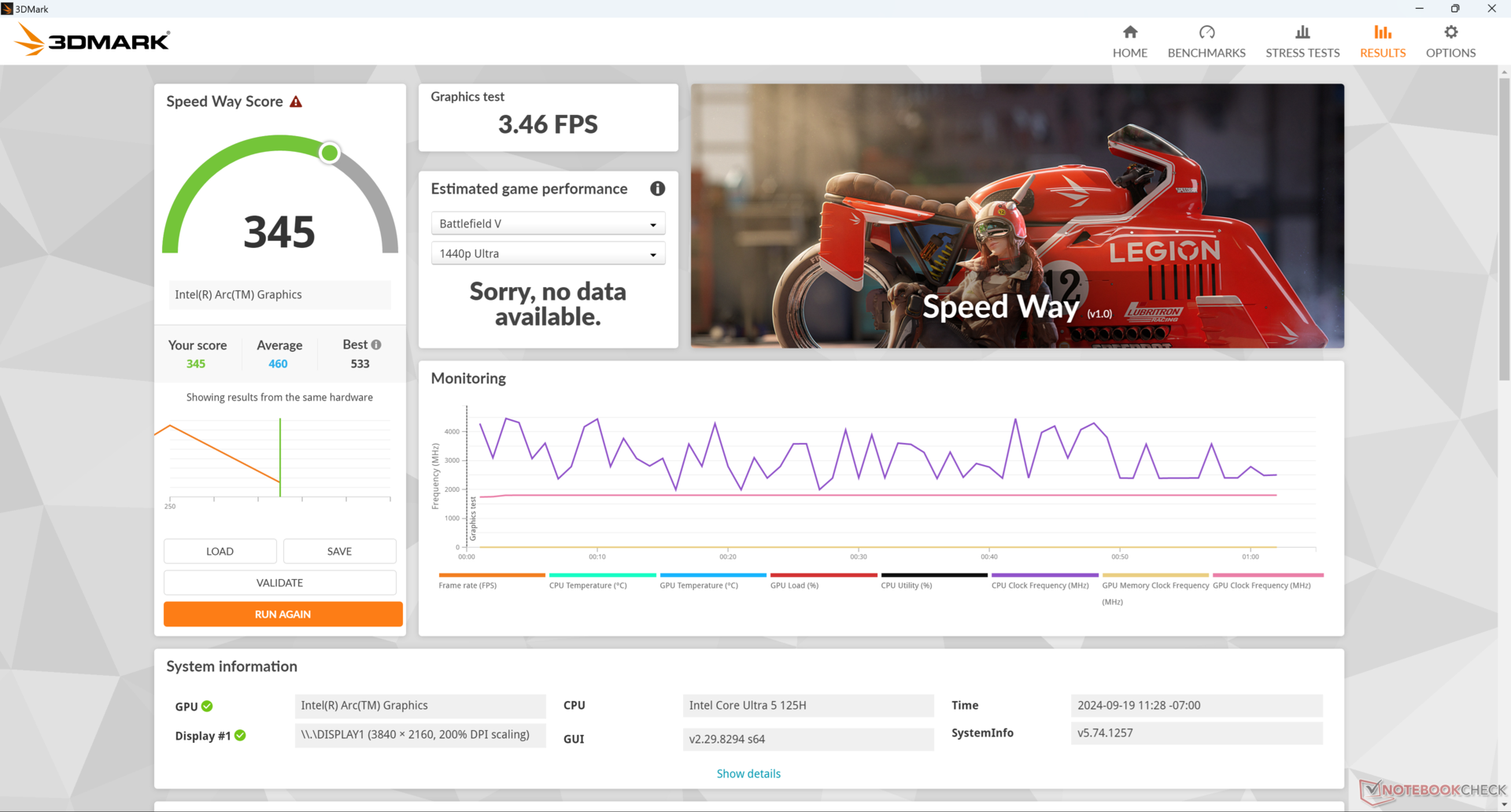

GPU teljesítmény

A grafikus teljesítmény valamivel lassabb, mint az adatbázisunkban szereplő átlagos PC-ké, ugyanolyan integrált Arc 7 GPU-val körülbelül 5 százalékkal. A magasabb kategóriás Core Ultra 7-H és Core Ultra 9-H processzorok integrált Arc 8 GPU-ja körülbelül 15 százalékkal gyorsabb, mint a mi Arc 7-es megoldásunk, de sajnos a NucBox K9-hez nem állnak rendelkezésre ilyen SKU-k. Ennek ellenére az általános teljesítmény összességében összehasonlítható a konkurens utolsó generációs Radeon 780M a 3DMark benchmarkok szerint.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	94.5 pt
Framework Laptop 13.5 Core Ultra 7 155H Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	94.1 pt
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	93.7 pt
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	92.9 pt
GMK NucBox K6 ^-1! AMD Radeon 780M, AMD Ryzen 7 7840HS	91.9 pt
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	90.2 pt
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	89.1 pt
Átlagos Intel Arc 7-Core iGPU	86.8 pt
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	81.6 pt
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	57.5 pt
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	52.9 pt
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	38.7 pt
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	26.4 pt
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	26.2 pt
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	11.4 pt

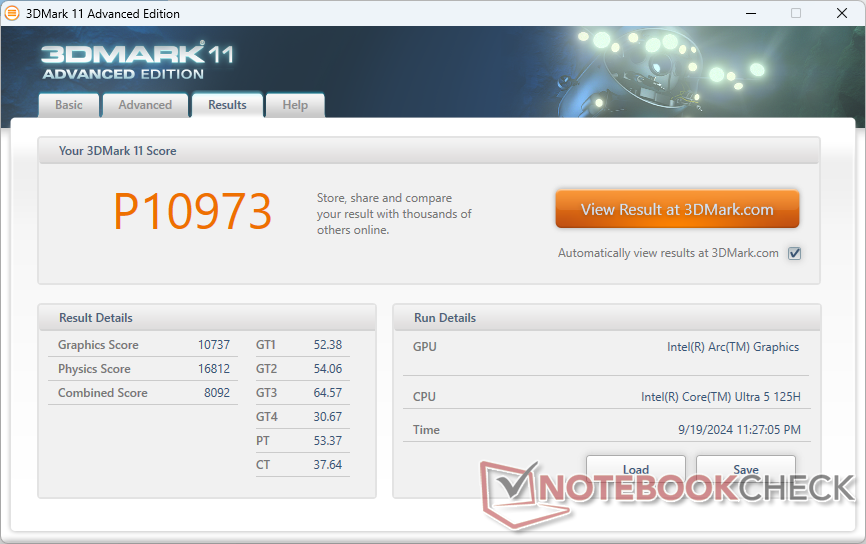

3DMark 11 - 1280x720 Performance GPU
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	13824 Points +29%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	13716 Points +28%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	13673 Points +27%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	13281 Points +24%
Framework Laptop 13.5 Core Ultra 7 155H Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	12739 Points +19%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	11793 Points +10%
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	11785 Points +10%
Átlagos Intel Arc 7-Core iGPU (10303 - 12061, n=6)	11314 Points +5%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	10737 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7428 Points -31%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	7184 Points -33%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	5054 Points -53%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	3428 Points -68%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	3422 Points -68%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1458 Points -86%

3DMark
1280x720 Cloud Gate Standard Graphics
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	53347 Points +34%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	50553 Points +27%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	49777 Points +25%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	48166 Points +21%
Framework Laptop 13.5 Core Ultra 7 155H Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	42140 Points +6%
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	41975 Points +6%
Átlagos Intel Arc 7-Core iGPU (39695 - 45644, n=4)	41850 Points +5%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	39695 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	34469 Points -13%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	31849 Points -20%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	22363 Points -44%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	16983 Points -57%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	16443 Points -59%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	7970 Points -80%
1920x1080 Fire Strike Graphics
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	8572 Points +17%
Framework Laptop 13.5 Core Ultra 7 155H Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	8513 Points +16%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	8450 Points +15%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	8437 Points +15%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	8164 Points +11%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	8117 Points +11%
Átlagos Intel Arc 7-Core iGPU (7047 - 8531, n=6)	7945 Points +8%
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	7900 Points +8%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	7325 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5845 Points -20%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	4984 Points -32%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	3939 Points -46%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	2655 Points -64%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	2655 Points -64%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1122 Points -85%
2560x1440 Time Spy Graphics
Framework Laptop 13.5 Core Ultra 7 155H Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3401 Points +18%
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	3205 Points +11%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	3088 Points +7%
Átlagos Intel Arc 7-Core iGPU (2796 - 3319, n=6)	3075 Points +7%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	2970 Points +3%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	2917 Points +1%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	2906 Points +1%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	2881 Points
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	2852 Points -1%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1682 Points -42%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	1582 Points -45%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1147 Points -60%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	737 Points -74%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	731 Points -75%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	304 Points -89%
2560x1440 Time Spy Score
Framework Laptop 13.5 Core Ultra 7 155H Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3725 Points +16%
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	3540 Points +11%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	3534 Points +10%
Átlagos Intel Arc 7-Core iGPU (3121 - 3658, n=6)	3379 Points +6%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	3335 Points +4%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	3274 Points +2%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	3260 Points +2%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	3206 Points 0%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	3200 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1920 Points -40%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	1793 Points -44%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1311 Points -59%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	855 Points -73%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	847 Points -74%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	345 Points -89%

3DMark Performance Rating | 3DMark 11 | 3DMark

Blender
v3.3 Classroom OPTIX/RTX
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	159 Seconds *
v3.3 Classroom CUDA
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	159 Seconds *
v3.3 Classroom CPU
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	3015 Seconds * -593%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	707 Seconds * -63%
Átlagos Intel Arc 7-Core iGPU (391 - 671, n=6)	514 Seconds * -18%
HP Pro Mini 400 G9-937U0EA Intel UHD Graphics 770, Intel Core i5-14500T	513 Seconds * -18%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	497 Seconds * -14%
Framework Laptop 13.5 Core Ultra 7 155H Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	451 Seconds * -4%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	435 Seconds *
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	399 Seconds * +8%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	396 Seconds * +9%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	327 Seconds * +25%
Geekom AX8 Pro AMD Radeon 780M, AMD Ryzen 9 8945H	326 Seconds * +25%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	314 Seconds * +28%
Beelink SER8 AMD Radeon 780M, AMD Ryzen 7 8845HS	310 Seconds * +29%
Lenovo ThinkStation P3 Tiny-30H0006AGE NVIDIA T1000, Intel Core i9-14900	263 Seconds * +40%
v3.3 Classroom oneAPI/Intel
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	308 Seconds *
Átlagos Intel Arc 7-Core iGPU ()	308 Seconds * -0%
Framework Laptop 13.5 Core Ultra 7 155H Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	235 Seconds * +24%

* ... a kisebb jobb

Játékteljesítmény

Sajnos a játékteljesítmény sokkal lassabb a NucBox K6-hoz képest, még akkor is, ha a fenti 3DMark eredmények mást sugallnak. A legtöbb tesztelt cím, köztük a GTA V, a DOTA 2 Reborn, a Final Fantasy XV, az F1 22 és a Baldur's Gate 3 10-40 százalékkal lassabban fut az Intel-üzemű NucBox K9-en. A Cyberpunk 2077 üresjáratban is akadoztak a képkockák, amint azt az alábbi grafikonunk is mutatja.

Performance Rating - Percent
BOSGAME M1 ^-1! AMD Ryzen 7 7840HS, AMD Radeon 780M	99.1 pt
Beelink SER8 ^-1! AMD Ryzen 7 8845HS, AMD Radeon 780M	97.7 pt
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	96.2 pt
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	75.7 pt
GMK NucBox M6 ^-1! AMD Ryzen 5 6600H, AMD Radeon 660M	64.7 pt
Beelink SEi12 Core i5-1235U ^-1! Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	45.4 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	26 (2.62^min, 17.5^P1) fps +105%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	12.7 (2.89^min, 8.93^P1) fps
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.41 (3.52^min, 4.12^P1) fps -42%

Final Fantasy XV Benchmark - 1920x1080 High Quality
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 fps +38%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	29.4 fps +32%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.3 fps +31%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	22.3 fps
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	17.9 fps -20%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.5 fps -39%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	52.1 (5.2^min, 33.8^P1) fps +20%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	50.8 (24.5^min, 33.9^P1) fps +17%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.8 (11.1^min, 31.1^P1) fps +12%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	43.5 (8.2^min, 17.8^P1) fps
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	29.6 (21^min, 24.7^P1) fps -32%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.5 (5^min, 5^P1) fps -60%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	90.4 (71.8^min) fps +23%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	88.5 (78.9^min) fps +21%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	87.4 (16.1^min) fps +19%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	73.3 (48.5^min) fps
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	60.8 (54.4^min) fps -17%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	42.2 (39.3^min) fps -42%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.7 fps +6%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	39.6 fps +6%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	38.7 fps +4%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	37.3 fps
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	33.2 fps -11%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	29.5 fps -21%

Far Cry 5 - 1920x1080 Ultra Preset AA:T
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	47 (41^min) fps +34%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	45 (40^min) fps +29%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	43 (38^min) fps +23%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	35 (32^min) fps
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	27 (20^min) fps -23%

GTA V
1024x768 Lowest Settings possible
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	187.4 (1.697^min, 200^P1) fps +31%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	169.4 (3.69^min, 125^P1) fps +18%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	168 (6.33^min, 125^P1) fps +17%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	163.4 (2.4^min, 100^P1) fps +14%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	156.3 (4.92^min, 90.9^P1) fps +9%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	144.9 (5.16^min, 83.3^P1) fps +1%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	143.6 (5.11^min, 83.3^P1) fps
Átlagos Intel Arc 7-Core iGPU (116.9 - 156.3, n=6)	138.2 fps -4%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	123.5 (30.5^min, 66.7^P1) fps -14%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	117.5 (24.8^min, 71.4^P1) fps -18%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	102.4 (25.3^min, 71.4^P1) fps -29%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	95 (19.9^min, 62.5^P1) fps -34%
1920x1080 Lowest Settings possible
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	187.3 (4.93^min, 166.7^P1) fps +58%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	131.1 (12.4^min, 71.4^P1) fps +10%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	129.8 (58.5^min, 90.9^P1) fps +9%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	129.3 (19.9^min, 90.9^P1) fps +9%
Átlagos Intel Arc 7-Core iGPU (118.7 - 140, n=4)	129.1 fps +9%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	127.9 (8.4^min, 90.9^P1) fps +8%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	124.7 (11.8^min, 83.3^P1) fps +5%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	118.7 (7.47^min, 83.3^P1) fps
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	91.3 (21.4^min, 52.6^P1) fps -23%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	67.2 (25.1^min, 45.5^P1) fps -43%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	53.9 (29.4^min, 40^P1) fps -55%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	50.2 (16.7^min, 38.5^P1) fps -58%
1366x768 Normal/Off AF:4x
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	187.1 (1.566^min, 200^P1) fps +49%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	158.3 (4.14^min, 111.1^P1) fps +26%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	158 (5.13^min, 111.1^P1) fps +26%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	153.8 (4.97^min, 90.9^P1) fps +23%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	148.8 (4.43^min, 83.3^P1) fps +19%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	140.1 (8^min, 66.7^P1) fps +12%
Átlagos Intel Arc 7-Core iGPU (106.4 - 151.6, n=6)	132.6 fps +6%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	125.5 (15.3^min, 76.9^P1) fps
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	105.9 (23.9^min, 47.6^P1) fps -16%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	98.7 (7.72^min, 66.7^P1) fps -21%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	90.8 (26.7^min, 62.5^P1) fps -28%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	84.7 (20.1^min, 58.8^P1) fps -33%
1920x1080 Normal/Off AF:4x
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	185.8 (1.693^min, 142.9^P1) fps +95%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	132.3 (12^min, 90.9^P1) fps +39%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	130.2 (18.8^min, 83.3^P1) fps +37%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	128.7 (21.5^min, 76.9^P1) fps +35%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	119.9 (6.03^min, 62.5^P1) fps +26%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	117.6 (36.7^min, 83.3^P1) fps +24%
Átlagos Intel Arc 7-Core iGPU (95.2 - 128.7, n=4)	114.2 fps +20%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	95.2 (10.5^min, 66.7^P1) fps
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	78.5 (6.01^min, 40^P1) fps -18%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	64.7 (21.2^min, 43.5^P1) fps -32%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	53.9 (16^min, 38.5^P1) fps -43%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	50.5 (10.2^min, 37^P1) fps -47%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	103.5 (6.88^min, 76.9^P1) fps +208%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	65.9 (2.44^min, 41.7^P1) fps +96%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.7 (3.85^min, 40^P1) fps +96%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	65.1 (2.93^min, 29.4^P1) fps +94%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	43.5 (2.85^min, 21.7^P1) fps +29%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	39.9 (3.1^min, 29.4^P1) fps +19%
Átlagos Intel Arc 7-Core iGPU (31 - 39.9, n=6)	35 fps +4%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	33.6 (6.68^min, 22.7^P1) fps
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	22.1 (7.08^min, 16.4^P1) fps -34%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.2 (9.35^min, 13.5^P1) fps -49%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	12.3 (4.52^min, 9.35^P1) fps -63%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	12 (4.17^min, 9.17^P1) fps -64%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	50.2 (6.23^min, 34.5^P1) fps +295%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	27.7 (13.2^min, 18.2^P1) fps +118%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	26 (2.62^min, 17.5^P1) fps +105%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	23.9 (4.39^min, 13^P1) fps +88%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	17.5 (2.07^min, 12^P1) fps +38%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	16.6 (2.85^min, 11.4^P1) fps +31%
Átlagos Intel Arc 7-Core iGPU (12.7 - 16.6, n=6)	14.5 fps +14%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	12.7 (2.89^min, 8.93^P1) fps
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	9 (3.72^min, 7.14^P1) fps -29%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.41 (3.52^min, 4.12^P1) fps -42%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	5.34 (2.38^min, 2.94^P1) fps -58%

Dota 2 Reborn
1280x720 min (0/3) fastest
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	246.2 (207.1^min) fps +152%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	163 (143.1^min) fps +67%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	161.2 (11.9^min) fps +65%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	157.5 (136^min) fps +61%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	151.9 (101.9^min) fps +55%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	144.9 (123.5^min) fps +48%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	117.2 (74.5^min) fps +20%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	105.8 (73.2^min) fps +8%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	102.7 (56.4^min) fps +5%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	102.4 (80.7^min) fps +5%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	97.7 (67.3^min) fps
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	97.1 (61.8^min) fps -1%
Átlagos Intel Arc 7-Core iGPU (93.5 - 97.7, n=6)	95.3 fps -2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	93.8 (8.8^min) fps -4%
1366x768 med (1/3)
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	217.7 (183.7^min) fps +162%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	130.1 (91.5^min) fps +57%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	127.9 (105.6^min) fps +54%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	124.8 (104.5^min) fps +50%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	116.1 (93.2^min) fps +40%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	107.9 (92.8^min) fps +30%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	88.7 (71^min) fps +7%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	83.1 (60.5^min) fps
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	82.9 (52.4^min) fps 0%
Átlagos Intel Arc 7-Core iGPU (70.5 - 89.2, n=6)	80.5 fps -3%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	79.2 (57.5^min) fps -5%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	78.4 (32.1^min) fps -6%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	76.9 (31.4^min) fps -7%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	74.4 (58.9^min) fps -10%
1920x1080 high (2/3)
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	150.4 (134.4^min) fps +99%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	98.8 (80.5^min) fps +31%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	96.8 (17.4^min) fps +28%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	89.8 (75.7^min) fps +19%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	88 (69.2^min) fps +16%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	75.9 (45.7^min) fps 0%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	75.6 (48.6^min) fps
Átlagos Intel Arc 7-Core iGPU (66.3 - 75.9, n=6)	72.6 fps -4%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	72.5 (53^min) fps -4%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	70 (63.6^min) fps -7%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	67.2 (36.9^min) fps -11%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	45.5 (42.6^min) fps -40%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	43.9 (24.2^min) fps -42%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	38 (35.3^min) fps -50%
1920x1080 ultra (3/3) best looking
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	136.5 (120.3^min) fps +86%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	90.4 (71.8^min) fps +23%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	87.4 (16.1^min) fps +19%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	83.2 (72.1^min) fps +14%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	81.2 (64.4^min) fps +11%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	73.3 (48.5^min) fps
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	72.9 (47.2^min) fps -1%
Átlagos Intel Arc 7-Core iGPU (58.7 - 73.3, n=6)	68.9 fps -6%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	66.5 (50.4^min) fps -9%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	62.1 (35.2^min) fps -15%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	60.8 (54.4^min) fps -17%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	42.2 (39.3^min) fps -42%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	40.7 (22.6^min) fps -44%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	35.4 (33.1^min) fps -52%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	101.3 fps +70%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	80.8 fps +36%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	79.7 fps +34%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	77.9 fps +31%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	75.1 fps +26%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	70 fps +17%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	60.6 fps +2%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	59.6 fps
Átlagos Intel Arc 7-Core iGPU (52.1 - 64.8, n=6)	59.2 fps -1%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	48.3 fps -19%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	46 fps -23%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	35.7 fps -40%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	26.2 fps -56%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	24.2 fps -59%
1920x1080 Standard Quality
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	49.3 fps +48%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	40.2 fps +21%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.3 fps +18%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	38.8 fps +17%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	38 fps +14%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	36 fps +8%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	35.4 fps +6%
Átlagos Intel Arc 7-Core iGPU (32.4 - 35.8, n=6)	33.9 fps +2%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	33.3 fps
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	25.7 fps -23%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	24.7 fps -26%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	19.3 fps -42%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	14.3 fps -57%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	12.9 fps -61%
1920x1080 High Quality
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	36.2 fps +62%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	29.4 fps +32%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.3 fps +31%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	28.5 fps +28%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	27.5 fps +23%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	27.2 fps +22%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	25.3 fps +13%
Átlagos Intel Arc 7-Core iGPU (22.2 - 25.3, n=6)	24 fps +8%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	22.3 fps
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	18.2 fps -18%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	17.9 fps -20%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.5 fps -39%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	9.38 fps -58%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	9.17 fps -59%

X-Plane 11.11
1280x720 low (fps_test=1)
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	211 fps +270%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.9 fps +16%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	65.9 fps +16%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	64.4 fps +13%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	64.2 fps +13%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	57 fps
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	56 fps -2%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	51.8 fps -9%
Átlagos Intel Arc 7-Core iGPU (47.1 - 57, n=6)	50.6 fps -11%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.4 fps -15%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	47.5 fps -17%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	28.5 fps -50%
1920x1080 med (fps_test=2)
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	145.8 fps +225%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	47.8 fps +7%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	47.3 fps +6%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	47.1 fps +5%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	46.8 fps +4%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	44.8 fps
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	41.6 fps -7%
Átlagos Intel Arc 7-Core iGPU (35.9 - 44.8, n=6)	39.7 fps -11%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	38.5 fps -14%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	38.5 fps -14%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	32.8 fps -27%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	21.7 fps -52%
1920x1080 high (fps_test=3)
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	130.1 fps +249%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	40.1 fps +8%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.7 fps +6%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	39.6 fps +6%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	39.6 fps +6%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	37.3 fps
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	33.7 fps -10%
Átlagos Intel Arc 7-Core iGPU (31.3 - 37.3, n=6)	33.4 fps -10%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	33.2 fps -11%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	32.9 fps -12%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	29.5 fps -21%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	18.8 fps -50%

Far Cry 5
1280x720 Low Preset AA:T
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	127 (102^min) fps +79%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	89 (77^min) fps +25%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	86 (75^min) fps +21%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	71 (62^min) fps 0%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	71 (63^min) fps
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	62 (11^min) fps -13%
Átlagos Intel Arc 7-Core iGPU (37 - 74, n=4)	61.5 fps -13%
1920x1080 Medium Preset AA:T
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	62 (53^min) fps +55%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	51 (45^min) fps +28%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (44^min) fps +23%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	42 (26^min) fps +5%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	40 (37^min) fps
Átlagos Intel Arc 7-Core iGPU (34 - 41, n=4)	38 fps -5%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	33 (29^min) fps -17%
1920x1080 High Preset AA:T
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	57 (48^min) fps +54%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	47 (42^min) fps +27%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	45 (41^min) fps +22%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	40 (29^min) fps +8%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	37 (34^min) fps
Átlagos Intel Arc 7-Core iGPU (31 - 37, n=4)	35 fps -5%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	30 (26^min) fps -19%
1920x1080 Ultra Preset AA:T
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	53 (46^min) fps +51%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	45 (40^min) fps +29%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	43 (38^min) fps +23%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	38 (23^min) fps +9%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	35 (32^min) fps
Átlagos Intel Arc 7-Core iGPU (31 - 35, n=3)	33.7 fps -4%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	27 (20^min) fps -23%

Strange Brigade
1280x720 lowest AF:1
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	226 (39.2^min, 192.3^P1) fps +52%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	173.7 (119.2^min, 145.2^P1) fps +17%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	167.7 (34.3^min, 142.9^P1) fps +13%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	162.1 (46.4^min, 76.2^P1) fps +9%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	148.6 (45.8^min, 118.4^P1) fps
Átlagos Intel Arc 7-Core iGPU (133 - 149, n=4)	142.9 fps -4%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	120.2 (78.3^min, 104.5^P1) fps -19%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	65.9 (14.2^min, 19.7^P1) fps -56%
1920x1080 medium AA:medium AF:4
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	87.2 (73.7^min, 77^P1) fps +36%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	70.6 (42.7^min, 62.5^P1) fps +10%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	68.9 (55.3^min, 59.1^P1) fps +8%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	67.9 (43.7^min, 58.3^P1) fps +6%
Átlagos Intel Arc 7-Core iGPU (63 - 69.5, n=4)	66.1 fps +3%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	63.9 (33.2^min, 54.3^P1) fps
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	43 (36.6^min, 37.4^P1) fps -33%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	26.5 (7^min, 12.6^P1) fps -59%
1920x1080 high AA:high AF:8
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	69.4 (49.4^min, 53.4^P1) fps +30%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	59.6 (42.8^min, 48.2^P1) fps +11%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	58.7 (43.2^min, 45.6^P1) fps +10%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	57.9 (7^min, 45^P1) fps +8%
Átlagos Intel Arc 7-Core iGPU (50 - 57.7, n=4)	53.8 fps +1%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	53.5 (28.6^min, 42^P1) fps
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	35.9 (28.5^min, 29.1^P1) fps -33%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	21.4 (5^min, 7.98^P1) fps -60%
1920x1080 ultra AA:ultra AF:16
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	59.9 (44.2^min, 47.8^P1) fps +38%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	50.8 (24.5^min, 33.9^P1) fps +17%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.8 (11.1^min, 31.1^P1) fps +12%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	48.5 (12.8^min, 21.5^P1) fps +11%
Átlagos Intel Arc 7-Core iGPU (40 - 47.3, n=4)	43.7 fps 0%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	43.5 (8.2^min, 17.8^P1) fps
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	29.6 (21^min, 24.7^P1) fps -32%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.5 (5^min, 5^P1) fps -60%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	139.9 fps +57%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	139 fps +56%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	127.9 fps +44%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	89 fps
Átlagos Intel Arc 7-Core iGPU ()	89 fps 0%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	80.8 fps -9%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	77.4 fps -13%
1920x1080 Low Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	74.6 fps +47%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	72.8 fps +44%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	69.2 fps +36%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	50.8 fps 0%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	50.7 fps
Átlagos Intel Arc 7-Core iGPU ()	50.7 fps 0%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	40 fps -21%
1920x1080 Medium Preset (DX12)
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	55.6 fps +41%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	52.8 fps +34%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	52.2 fps +32%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	44.5 fps +13%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	39.4 fps
Átlagos Intel Arc 7-Core iGPU ()	39.4 fps 0%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	31.3 fps -21%
1920x1080 High Preset (DX12)
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	36.8 fps +37%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.6 fps +37%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	35.3 fps +32%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	30.7 fps +15%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	26.8 fps
Átlagos Intel Arc 7-Core iGPU ()	26.8 fps 0%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	20.5 fps -24%
1920x1080 Badass Preset (DX12)
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	29.6 fps +32%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.5 fps +32%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	27.6 fps +23%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	24.2 fps +8%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	22.4 fps
Átlagos Intel Arc 7-Core iGPU ()	22.4 fps 0%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	15.6 fps -30%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	170 (137^min, 113^P1) fps +31%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	145.7 (108^min, 89^P1) fps +12%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	130.2 (112^min, 96^P1) fps
Átlagos Intel Arc 7-Core iGPU ()	130.2 fps 0%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	120.9 (85^min, 73^P1) fps -7%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	107.3 (86^min, 79^P1) fps -18%
1920x1080 Low Preset AA:T AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	99.8 (12^min, 70^P1) fps +26%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	99 (86^min, 76^P1) fps +25%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	79.4 (63^min, 66^P1) fps
Átlagos Intel Arc 7-Core iGPU ()	79.4 fps 0%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	73.9 (31^min, 45^P1) fps -7%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	58.3 (43^min, 42^P1) fps -27%
1920x1080 Medium Preset AA:T AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.9 (67^min, 59^P1) fps +19%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	85.9 (73^min, 68^P1) fps +19%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	71.9 (61^min, 59^P1) fps
Átlagos Intel Arc 7-Core iGPU ()	71.9 fps 0%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	68.6 (50^min, 44^P1) fps -5%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	52.3 (41^min, 39^P1) fps -27%
1920x1080 High Preset AA:T AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	66.7 (53^min, 36^P1) fps +26%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	65.6 (54^min, 52^P1) fps +24%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	52.9 (36^min, 38^P1) fps 0%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	52.9 (46^min, 45^P1) fps
Átlagos Intel Arc 7-Core iGPU ()	52.9 fps 0%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	37.2 (31^min, 29^P1) fps -30%

Baldur's Gate 3
1280x720 Low Preset
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	75.9 (36.6^min, 56^P0.1, 65.8^P1) fps +49%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	67.4 (22.7^min, 28.3^P0.1, 43.6^P1) fps +33%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	63.4 fps +25%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	60.8 (21.6^min, 28.1^P0.1, 35.6^P1) fps +20%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	53.9 fps +6%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	50.8 fps
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	50.2 (27.7^min, 29.7^P0.1, 32.6^P1) fps -1%
Átlagos Intel Arc 7-Core iGPU (45 - 50.8, n=3)	48.7 fps -4%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	37.3 fps -27%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	28.2 (13.8^min, 15.1^P0.1, 19.8^P1) fps -44%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	16.9 (10.9^min, 11.1^P0.1, 12.8^P1) fps -67%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	14.4 (8.68^min, 9.6^P0.1, 11.1^P1) fps -72%
1920x1080 Low Preset
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	45 (22.4^min, 36.9^P0.1, 38.2^P1) fps +34%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	42.8 (27.5^min, 32.3^P0.1, 34.5^P1) fps +27%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	41.6 fps +23%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	40.5 fps +20%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	38.5 (19.4^min, 19.8^P0.1, 29.1^P1) fps +14%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	36.9 fps +9%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	33.7 fps
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	33.5 (20.9^min, 21^P0.1, 23.4^P1) fps -1%
Átlagos Intel Arc 7-Core iGPU (29.9 - 33.7, n=4)	31.8 fps -6%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	22.9 fps -32%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	19.9 (15.5^min, 15.6^P0.1, 16.4^P1) fps -41%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	10.2 (7.83^min, 7.9^P0.1, 8.15^P1) fps -70%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	8.87 (6.27^min, 6.29^P0.1, 6.74^P1) fps -74%
1920x1080 Medium Preset
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	35.2 (20.6^min, 26.7^P0.1, 30.6^P1) fps +26%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	34.8 fps +25%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	33.7 fps +21%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	33 (15.6^min, 21.4^P0.1, 26.3^P1) fps +18%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	30.7 fps +10%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	29.9 (11.8^min, 18.6^P0.1, 23.5^P1) fps +7%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	27.9 fps
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	25.9 (5.81^min, 8.8^P0.1, 15.9^P1) fps -7%
Átlagos Intel Arc 7-Core iGPU (23.2 - 27.9, n=4)	25.9 fps -7%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	15.4 (11.8^min, 11.9^P0.1, 12.7^P1) fps -45%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	15.1 fps -46%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	7.86 (5.51^min, 5.72^P0.1, 6.18^P1) fps -72%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	6.97 (5.1^min, 5.12^P0.1, 5.36^P1) fps -75%
1920x1080 High Preset
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	30.2 (10.5^min, 12.6^P0.1, 26.4^P1) fps +25%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	28.9 fps +19%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	28.1 fps +16%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	26.7 fps +10%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	25.7 (11^min, 11.5^P0.1, 14.5^P1) fps +6%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	24.5 (17.7^min, 17.7^P0.1, 19.8^P1) fps +1%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	24.2 fps
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	22.4 (14^min, 14.2^P0.1, 15.3^P1) fps -7%
Átlagos Intel Arc 7-Core iGPU (19.5 - 24.2, n=4)	22.2 fps -8%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	13.5 (11.2^min, 11.2^P0.1, 11.6^P1) fps -44%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	13.3 fps -45%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	6.88 (5.24^min, 5.26^P0.1, 5.41^P1) fps -72%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	6.12 (4.49^min, 4.52^P0.1, 4.8^P1) fps -75%
1920x1080 Ultra Preset
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	29.5 (13.3^min, 21.5^P0.1, 25.7^P1) fps +28%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	28 fps +21%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	27 fps +17%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	25.7 fps +11%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	24.6 (11.6^min, 11.6^P0.1, 14.4^P1) fps +6%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	24.4 (8.81^min, 15.2^P0.1, 19.3^P1) fps +6%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	23.1 fps
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	21.5 (13.6^min, 13.7^P0.1, 14.1^P1) fps -7%
Átlagos Intel Arc 7-Core iGPU (19.5 - 23.1, n=4)	21.5 fps -7%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	13 (10.1^min, 10.1^P0.1, 11^P1) fps -44%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	12.6 fps -45%

Cyberpunk 2077 2.1 Phantom Liberty
1280x720 Low Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	77.4 (28.7^min) fps +67%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	77.1 (60.4^min) fps +66%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	76.3 (63.4^min) fps +64%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	72.6 (60.1^min) fps +56%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	69 (56.9^min) fps +49%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	47.4 (40.3^min) fps +2%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	46.4 (37.7^min) fps
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	46.3 (39.2^min) fps 0%
Átlagos Intel Arc 7-Core iGPU (45.5 - 46.4, n=3)	46.1 fps -1%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	31.8 (24.6^min) fps -31%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	15.4 (11.7^min) fps -67%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	15.1 (4.01^min) fps -67%
1920x1080 Low Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	46.3 (32.3^min) fps +50%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	45.1 (36.7^min) fps +46%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	45 (38^min) fps +46%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	43.8 (37.3^min) fps +42%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	41.3 (34.5^min) fps +34%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	34.3 (29.3^min) fps +11%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	30.9 (24.8^min) fps
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	30.1 (25.8^min) fps -3%
Átlagos Intel Arc 7-Core iGPU (23.2 - 30.9, n=5)	28.6 fps -7%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	24.3 (20.5^min) fps -21%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	18.6 (15.4^min) fps -40%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	9.13 (7.04^min) fps -70%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	8.82 (6.82^min) fps -71%
1920x1080 Medium Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	35.2 (10.9^min) fps +40%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	35.1 (30.5^min) fps +39%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	34.5 (29.8^min) fps +37%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	34.2 (28.8^min) fps +36%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	31.8 (27.5^min) fps +26%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	27.8 (24.1^min) fps +10%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	25.2 (22.3^min) fps 0%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	25.2 (19.2^min) fps
Átlagos Intel Arc 7-Core iGPU (19.8 - 25.2, n=5)	23.2 fps -8%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	18.1 (15.7^min) fps -28%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	15 (12.4^min) fps -40%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	7.06 (5.79^min) fps -72%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	6.75 (5.5^min) fps -73%
1920x1080 High Preset (FSR off)
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	28.3 (23.5^min) fps +33%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	27.7 (9.25^min) fps +30%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	27.4 (23.1^min) fps +29%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	27.1 (22.6^min) fps +27%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	25.8 (21.7^min) fps +21%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	23.4 (20.1^min) fps +10%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	21.7 (18.8^min) fps +2%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	21.3 (14.6^min) fps
Átlagos Intel Arc 7-Core iGPU (16.6 - 21.7, n=5)	19.9 fps -7%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	13 (11^min) fps -39%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	11.6 (10^min) fps -46%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	6.09 (5.05^min) fps -71%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	5.86 (4.84^min) fps -72%
1920x1080 Ultra Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	24.5 (9.31^min) fps +30%
Geekom AE7 AMD Ryzen 9 7940HS, AMD Radeon 780M	24.3 (20.4^min) fps +29%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900, NVIDIA T1000	23.8 (20^min) fps +27%
Beelink SER8 AMD Ryzen 7 8845HS, AMD Radeon 780M	23.4 (19^min) fps +24%
Geekom AX8 Pro AMD Ryzen 9 8945H, AMD Radeon 780M	21.7 (18.2^min) fps +15%
Framework Laptop 13.5 Core Ultra 7 155H Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	21.1 (17.4^min) fps +12%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	19.6 (16.7^min) fps +4%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	18.8 (10.9^min) fps
Átlagos Intel Arc 7-Core iGPU (14.8 - 19.6, n=5)	17.7 fps -6%
Geekom XT13 Pro Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	11.4 (9.68^min) fps -39%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	5.24 (4.41^min) fps -72%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T, Intel UHD Graphics 770	5.03 (4.23^min) fps -73%

Cyberpunk 2077 ultra FPS Chart

GMK NucBox K9 Ultra 5 125H, Arc 7-Core: Ø18.7 (14.7-20.9)

	alacsony	közepes	magas	ultra
GTA V (2015)	143.6	125.5	33.6	12.7
Dota 2 Reborn (2015)	97.7	83.1	75.6	73.3
Final Fantasy XV Benchmark (2018)	59.6	33.3	22.3
X-Plane 11.11 (2018)	57	44.8	37.3
Far Cry 5 (2018)	71	40	37	35
Strange Brigade (2018)	148.6	63.9	53.5	43.5
Tiny Tina's Wonderlands (2022)	50.7	39.4	26.8	22.4
F1 22 (2022)	79.4	71.9	52.9
Baldur's Gate 3 (2023)	33.7	27.9	24.2	23.1
Cyberpunk 2077 2.1 Phantom Liberty (2023)	30.9	25.2	21.3	18.8

Kibocsátás - A ventilátorok mindig be vannak kapcsolva

Rendszerzaj

A ventilátorzaj mindig jelen van a készüléken, függetlenül a képernyő terhelésétől, hasonlóan ahhoz, amit a NucBox K6-on rögzítettünk. Egyszerűen üresjáratban az asztalon már 30-36 dB(A) a 23 dB(A) csendes háttérrel szemben, még akkor is, ha energiatakarékos üzemmódba van állítva. A ventilátorzaj azonban játék vagy más igényes terhelés esetén halkabbnak tűnik a NucBox K9 esetében, körülbelül 44 dB(A), szemben a NucBox K6 közel 48 dB(A) értékével.

Ventilátor zajprofil (fehér: Háttér, Piros: Kék: 3DMark 06, Narancssárga: Zöld: Cyberpunk 2077, Zöld: Prime95+FurMark stressz)

Zajszint

Üresjárat		29.8 / 35.7 / 35.7 dB(A)
Terhelés		41.9 / 44 dB(A)

	30 dB csendes 40 dB(A) hallható 50 dB(A) hangos
min: , med: , max: Earthworks M23R, Arta (15 cm távolságról) környezeti zaj: 23 dB(A)

Hőmérséklet

A hálózati adapter 31 C fölé emelkedik igényes terheléseknél

A felületi hőmérséklet nem jelent problémát. a szellőzőrácsok a készülék mindkét oldalán megtalálhatók, kivéve a felső felületet, ami azt jelenti, hogy a notebookok és más kisebb tárgyak biztonságosan elhelyezhetők a tetején a légáramlás akadályozása nélkül.

Energiagazdálkodás

Energiafogyasztás

Az asztali számítógépen a vártnál magasabb, 11 W körüli fogyasztás még energiatakarékos üzemmódban is, szemben más modellek, például a NucBox M6 vagy a NucBox M6 6-8 W-os fogyasztásával Beelink SER8. Igényesebb terhelések, például a 3DMark 06 vagy a Cyberpunk 2077 futtatásakor azonban a fogyasztás észrevehetően alacsonyabb, mint a gyorsabb NucBox K6 esetében.

A kis-közepes (~14,5 x 6,4 x 3 cm) 120 W-os hordozható 120 W-os hálózati adapterrel 73 W-os maximális fogyasztást tudunk rögzíteni. A nagy túlterhelést a Thunderbolt 4 portnak köszönhetjük arra az esetre, ha valamelyik csatlakoztatott monitor vagy kiegészítő további áramot igényelne.

A fogyasztás 71 W-ra emelkedik, amikor a Prime95 stressz elindul. Ezt követően nem következik be nagyobb visszaesés, ami összhangban van a fenti stresszteszt megfigyeléseinkkel

Prime95+FurMark stressz 10s jelnél indult el

Energiafogyasztás

Kikapcsolt állapot / Készenlét	1.1 / 1.6 Watt
Üresjárat	10.9 / 11 / 11.4 Watt
Terhelés	52.8 / 72.2 Watt


Kulcs: min: , med: , max: Metrahit Energy

	GMK NucBox K9 Ultra 5 125H, Arc 7-Core, MasonSemi 1TB MC7000, , x,	GMK NucBox K6 R7 7840HS, Radeon 780M, MasonSemi 1TB MC7000, , x,	GMK NucBox M6 R5 6600H, Radeon 660M, AirDisk APF 10-512G, , x,	Beelink SER8 R7 8845HS, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x,	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs, Kingston NV1 SNVS/500GCN, , x,	BOSGAME M1 R7 7840HS, Radeon 780M, , , x,
Power Consumption		10%	10%	9%	-43%	4%
Idle Minimum *	10.9	6.7 39%	7.9 28%	7.3 33%	15.8 -45%	7.3 33%
Idle Average *	11	7 36%	8 27%	7.3 34%	16.8 -53%	7.3 34%
Idle Maximum *	11.4	7.6 33%	8.3 27%	8.4 26%	17 -49%	8.4 26%
Load Average *	52.8	74.3 -41%	61.5 -16%	68.2 -29%	54.4 -3%	72.7 -38%
Cyberpunk 2077 ultra external monitor *	57.1
Load Maximum *	72.2	85.7 -19%	84.6 -17%	84.3 -17%	119.1 -65%	99.1 -37%
Witcher 3 ultra *		75	47.3	75.1	50.7	80.5

* ... a kisebb jobb

Power Consumption Prime95+FurMark Stress Test

GMK NucBox K9 Ultra 5 125H, Arc 7-Core: Ø72 (71.3-72.6)

GMK NucBox M6 R5 6600H, Radeon 660M: Ø80 (77.6-84.6)

Power Consumption external Monitor

GMK NucBox K9 Ultra 5 125H, Arc 7-Core; Prime95 V2810 Stress (external Monitor): Ø70.5 (69.4-71)

GMK NucBox M6 R5 6600H, Radeon 660M; Prime95 V2810 Stress (external Monitor): Ø78.3 (76.1-82.8)

GMK NucBox K9 Ultra 5 125H, Arc 7-Core; Cinebench R15 Multi (external Monitor): Ø62.9 (31.3-65.1)

GMK NucBox M6 R5 6600H, Radeon 660M; Cinebench R15 Multi (external Monitor): Ø75.1 (57.8-78.5)

GMK NucBox K9 Ultra 5 125H, Arc 7-Core; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø48.5 (47-52.2)

GMK NucBox M6 R5 6600H, Radeon 660M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø54.7 (52.9-56.1)

GMK NucBox K9 Ultra 5 125H, Arc 7-Core; Idle 1min (external Monitor): Ø11.1 (10.8-13.9)

GMK NucBox M6 R5 6600H, Radeon 660M; Idle 1min (external Monitor): Ø8.08 (7.75-13.6)

GMK NucBox K9 Ultra 5 125H, Arc 7-Core; Cyberpunk 2077 FHD ultra no FSR - external Monitor: Ø57.1 (56.3-59.8)

Ítélet - Újabb, de nem gyorsabb

A NucBox K9 570 dollárért, 32 GB RAM-mal és 1 TB tárolóval jó ár-érték arányt képvisel, ha összehasonlítjuk a NucBox K9-et a Beelink SER8 amely jelenleg 630 dollárral drágább az Amazonon. A GMK legnagyobb ellensége valószínűleg maga a GMK, mivel az olyan modellek, mint a NucBox K6, olcsóbbak és gyorsabbak is, mint a NucBox K9, lényegében ugyanazzal az alvázkialakítással és ugyanazokkal a fizikai jellemzőkkel. Ebben a forgatókönyvben szinte semmi ok nincs arra, hogy a NucBox K9-et a K6 helyett megvásárolja, kivéve, ha az integrált NPU-t a nyers CPU és GPU teljesítménye helyett előnyben részesíti. Még a konkurens Bosgame M1 jelenleg 500 dollárral olcsóbb és gyorsabb. Igaz, hogy a NucBox K9 egy kicsit halkabban fut, de ez csak azért van, mert a modell eleve egy kicsit lassabb is.

A NucBox K9 semmiképpen sem egy rossz mini PC, de a magasabb ára és a régebbi NucBox K6-hoz képest lassabb teljesítménye biztosan sok vásárlót el fog zavarni, különösen azok számára, akiket nem érdekel az AI gyorsítás.

A NucBox K6 és K9 modellek közötti ár- és teljesítménykülönbségeken túl a sorozat dizájnja is kezdi megmutatni a korát. Az olyan versenytársak, mint a Bosgame erősebb fémvázas kialakítással rendelkeznek, míg a Beelink nemrégiben újratervezte SER sorozatát, hogy sokkal professzionálisabb, sőt, fényűzőbb legyen. A többnyire műanyagból készült GMK NucBox elég jól működik, de talán itt az ideje egy magasabb minőségű anyagokkal vagy esetleg szerszám nélküli szervizeléssel történő felújításnak.

Ár és elérhetőség

A GMKtec NucBox K9 most az Amazonon az Amazonon konfigurált módon szállítja a $ 720 (kupon után) vagy a közvetlenül a gyártótól 570 dollárért. Egy csupasz SKU is elérhető 400 dollárért.

Megjegyzés: Nemrégiben frissítettük a minősítési rendszerünket, és a 8-as verzió eredményei nem hasonlíthatók össze a 7-es verzió eredményeivel. További információk elérhetők itt .

GMK NucBox K9 - 10/30/2024 v8
Allen Ngo

Váz

84 / 98 → 85%

Csatlakoztathatóság

62 / 81 → 76%

Súly

83%

Játékok alatti teljesítmény

46 / 80 → 57%

Alkalmazások alatti teljesítmény

82 / 92 → 89%

Zaj

64%

Átlag

49%

67%

Mini PC - Súlyozott átlag

CO2 Emissions
No Data

Materials
0%

Packaging
50%

Power Use
68.2%

Repairability
40%

Software Updates
22.3%

Total Sustainability Score: 30.1%

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Értékelés	Version	Dátum	Model	Súly	Magasság	Felbontás
67.3 %	v8	09/2024	GMK NucBox K9 Ultra 5 125H, Arc 7-Core	528 g	47 mm	x
83.6 % v7 ^(old)	v7 ^(old)		GMK NucBox K6 R7 7840HS, Radeon 780M	514 g	47 mm	x
63.6 %	v8	07/2024	GMK NucBox M6 R5 6600H, Radeon 660M	526 g	48 mm	x
74.9 %	v8	07/2024	Beelink SER8 R7 8845HS, Radeon 780M	776 g	44.7 mm	x
v ^(old)			Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs	465 g	42 mm	x
84.5 % v7 ^(old)	v7 ^(old)	05/2024	BOSGAME M1 R7 7840HS, Radeon 780M	766 g	51 mm	x

Cinebench 2024 CPU Multi Core összehasonlítva
Lenovo ThinkBook 13x G4 21KR0008GE (min) Ultra 5 125H, Arc 7-Core	331
...
Lenovo Yoga Slim 7 15ILL9 Aura Core Ultra 7 256V, Arc 140V	630
Asus VivoBook S 15 Snapdragon 8-Core SD X Plus X1P-42-100, Adreno X1-45 1.7 TFLOPS	661
Asus VivoBook S 15 Snapdragon 8-Core SD X Plus X1P-42-100, Adreno X1-45 1.7 TFLOPS	661
GMK NucBox K9 Ultra 5 125H, Arc 7-Core	668
Dell XPS 13 9340 Core Ultra 7 Ultra 7 155H, Arc 8-Core	675
Asus Zenbook 14 OLED UM3406HA R7 8840HS, Radeon 780M	677
Framework Laptop 13.5 Core Ultra 7 155H Ultra 7 155H, Arc 8-Core	677
...
Intel Core Ultra 9 285K (max) Core Ultra 9 285K, NVIDIA GeForce RTX 4090	2436

	Átlagos CPU órajel (GHz)	GPU órajel (MHz)	Átlagos CPU hőmérséklet (°C)
Rendszer üresjáratban	--	--	40
Prime95 Stressz	2,3	--	79
Prime95 + FurMark Stressz	2.2	1150	79
Cyberpunk 2077 Stressz	0,9	1600	72

GMK NucBox K9 mini PC felülvizsgálat: Core Ultra 5 125H Arc 7 grafikával

A NucBox K6 gyorsabb.

Lehetséges versenytársak összehasonlítása

Eset - A színváltás

Méret összehasonlítás

Csatlakoztathatóság - Gyorsabb USB-portok

Kommunikáció

Karbantartás

Fenntarthatóság

Tartozékok és garancia

Teljesítmény - Meteor Lake Standard

Vizsgálati feltételek

Processzor

Cinebench R15 Multi Loop

Stressz teszt

Rendszer teljesítménye

DPC késleltetés

Tárolóeszközök

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU teljesítmény

Játékteljesítmény

Cyberpunk 2077 ultra FPS Chart

Kibocsátás - A ventilátorok mindig be vannak kapcsolva

Rendszerzaj

Hőmérséklet

Energiagazdálkodás

Energiafogyasztás

Power Consumption Prime95+FurMark Stress Test

Power Consumption external Monitor

Pro

Kontra

Ítélet - Újabb, de nem gyorsabb

Ár és elérhetőség

Kapcsolódó cikkek

Transparency

Price comparison

3DMark 11 Performance		10973 pontok
3DMark Cloud Gate Standard Score		28997 pontok
3DMark Fire Strike Score		6716 pontok
3DMark Time Spy Score		3200 pontok
3DMark Steel Nomad Score		581 pontok
Segítség

3DMark 11 összehasonlítva
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Morefine M600, 6900HX R9 6900HX, Radeon 680M	10898
Lenovo Yoga Slim 7 15ILL9 Aura Core Ultra 7 256V, Arc 140V	10962
Asus TUF FX505DT-EB73 R7 3750H, GeForce GTX 1650 Mobile	10963
GMK NucBox K9 Ultra 5 125H, Arc 7-Core	10973
Aorus X5S v5 6700HQ, GeForce GTX 980M	11055
Razer Blade Stealth Core i7 GTX 1650 Ti Max-Q 4K i7-1065G7, GeForce GTX 1650 Ti Max-Q	11070
Xiaomi Mi Gaming Laptop 7300HQ 1060 i5-7300HQ, GeForce GTX 1060 Mobile	11106
...
(max) R7 9800X3D, NVIDIA GeForce RTX 4090	77609

	GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	BOSGAME M1 Radeon 780M, R7 7840HS
Noise		-2%	-4%	14%	14%	4%
off / környezet *	23	23.2 -1%	24.2 -5%	23.6 -3%	23.3 -1%	23.2 -1%
Idle Minimum *	29.8	31.3 -5%	31.9 -7%	28.8 3%	27.8 7%	32 -7%
Idle Average *	35.7	31.3 12%	32 10%	28.8 19%	27.8 22%	32 10%
Idle Maximum *	35.7	33.4 6%	33.8 5%	30.5 15%	27.8 22%	32 10%
Load Average *	41.9	47.5 -13%	48.5 -16%	34.6 17%	32 24%	38.7 8%
Cyberpunk 2077 ultra *	43.8			34.1 22%
Load Maximum *	44	47.7 -8%	48.5 -10%	34.5 22%	39.2 11%	42 5%
Witcher 3 ultra *		43.6	48.5		34.1	41.7
